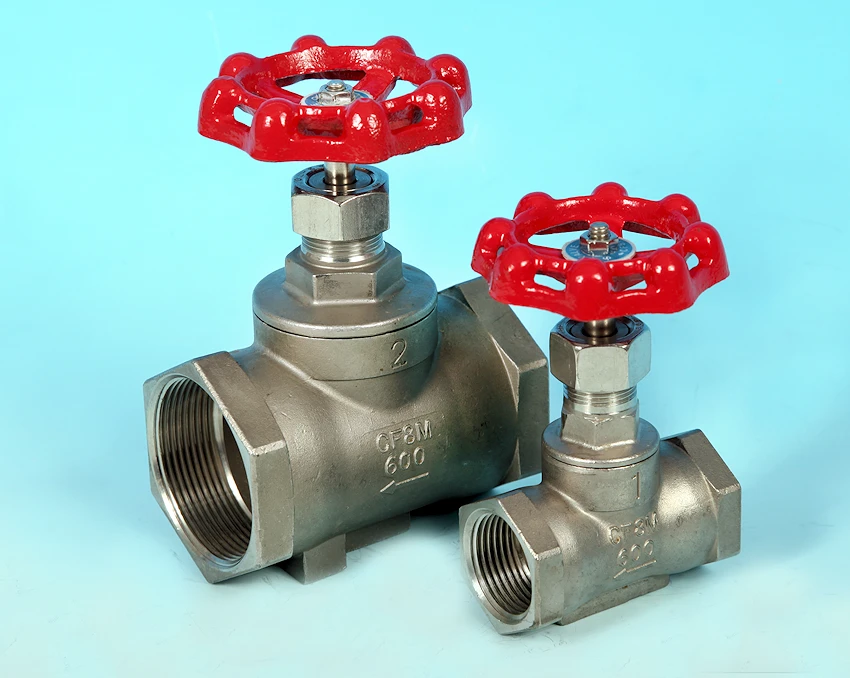

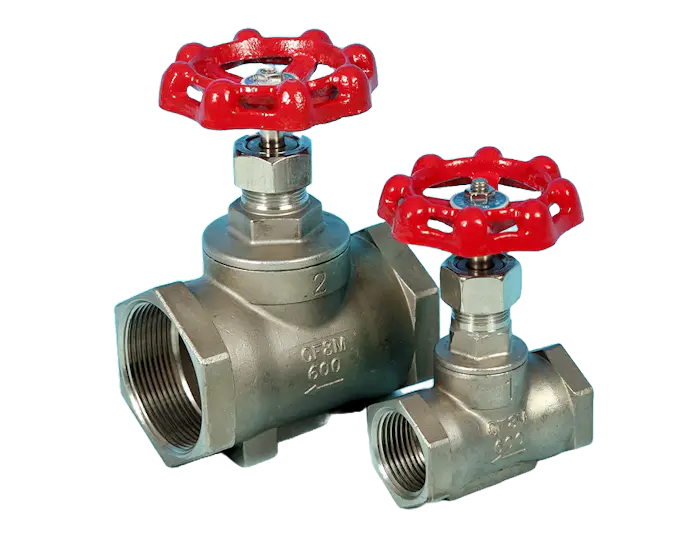

Screwed Pattern Globe Valve
ASTM A351 CF8M 316 Stainless Steel Body, Bonnet and Disc.
316 Stainless Steel Stem and Trim. Ductile Iron painted Handwheel.
PTFE Gland Packing and Bonnet Seal.
Screwed Bonnet. Non Rising Stem. Metal to Metal Taper Seat.
600 psi/g pressure rated. -20 / +180 deg C Temp rated.
BSP screwed end connections.
CE marked in accordance with the PED 97/23/EC (from 1 1/4”).
A good all round, robust general purpose Globe Valve used for
both isolation and flow restriction duties.
The 600 psi pressure rating is relatively unique as most companies are only able to offer a 200 psi unit.
We are able to machine the valve ends to Socket Weld as an optional extra.
Available size range: 1/4” - 2”

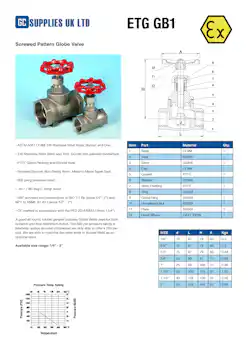

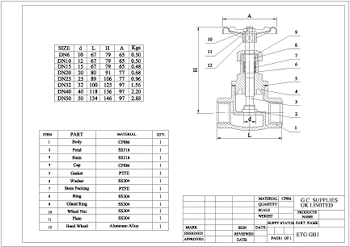

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.
