pipeline fittings & flanges

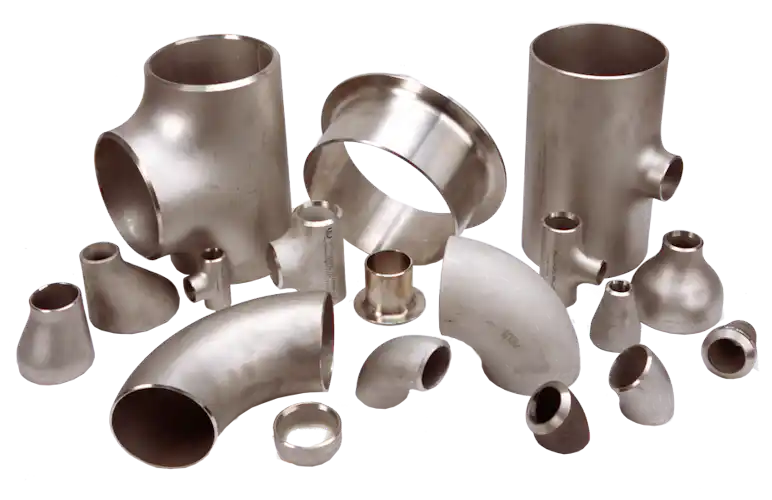

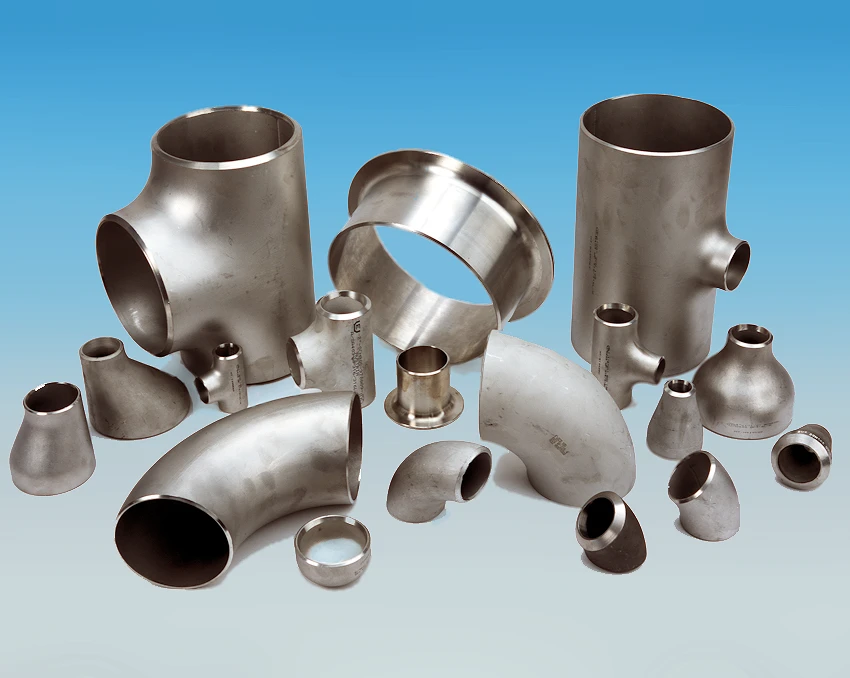

Butt Weld Fittings.

ASTM A403/ASME SA403 WP316/316L & WP304/304L Stainless Steel construction.
Dimensions in accordance with ASME B16.9 and ASME B16.28
Marked in accordance with MSS SP-25
Available in Schedules 10 and 40 in Welded construction and Schedules 10, 40 and 80 in Seamless construction.

All Butt Weld Fittings are available with material certification to BSEN 10204 3.1 and conform to the requirements of NACE MR0175 as standard.

Available size range: 1/2” - 16”
