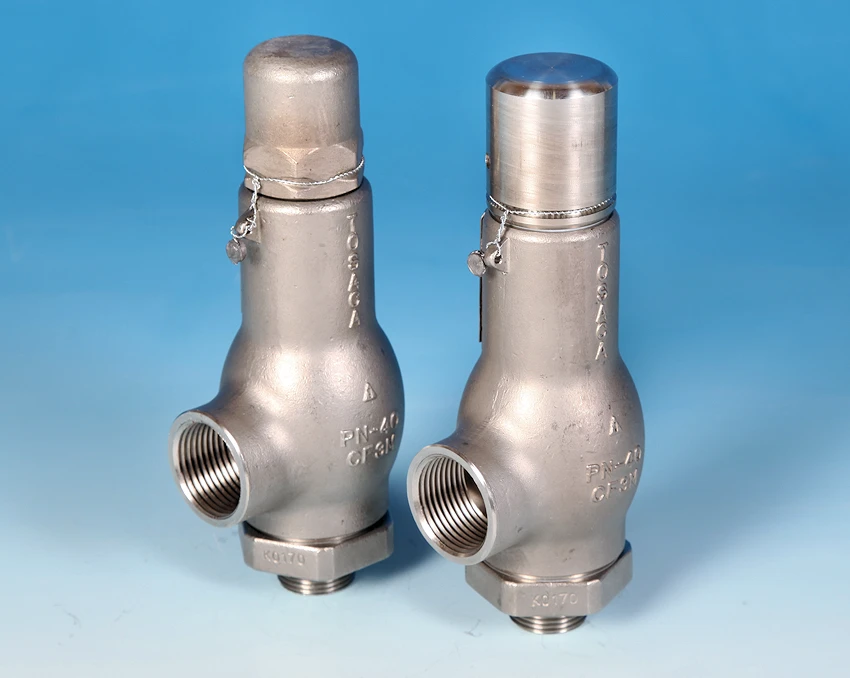

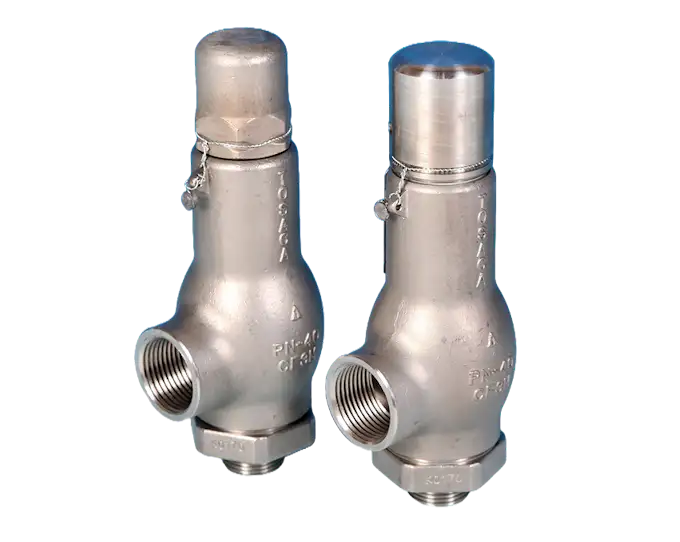

Safety/Pressure Relief Valve Fig 1216

ASTM A351 CF3M 316L Stainless Steel construction.
Screwed BSP (NPT available on request). Pressure rated to PN40. -10 to 350 deg C Temperature rated. Suitable for Steam, Gaseous, Vapour and Liquid duties.
Supplied as standard with a Leak Proof Dome (easing lever and sealed packing lever designs available on request.
CE marked. PED 97/23/EC compliant Category lV. Atex compliant.

Available size range: 1/2” - 2” BSP male inlet, BSP female outlet.

In order for our Sales Office to be able to provide a quotation, we will require the following minimum information:

  • Media/Product (what is going through the protected pipeline?).
  • The set pressure required or the Media/Product working pressure?
  • What is the Media/Product Temperature?

This basic information should allow us to provide a quotation for you. We may need to know more information dependent on the duty such as Viscosity, Flow Capacity and Corrosive Data. This will need to be advised if required.
Material Certification and Calibration Certification is available at an additional cost.

Drawings:

Download file Print View View Full Screen Get 7z Get Acrobat Reader

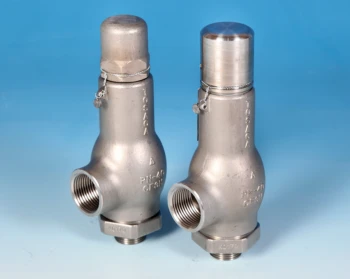

Safety/Pressure Relief Valve Fig 1216 Enlarge

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.

Problems opening the Print Version? Click HERE
