manways

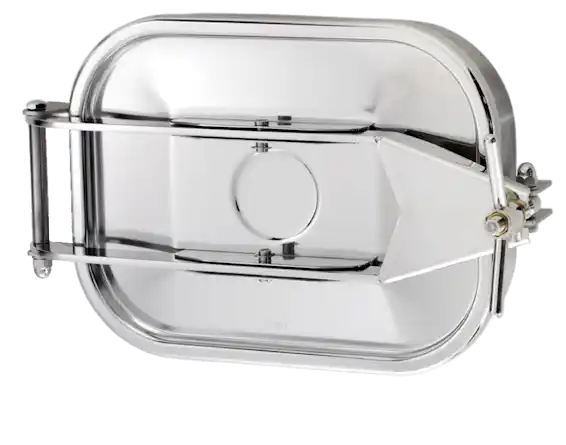

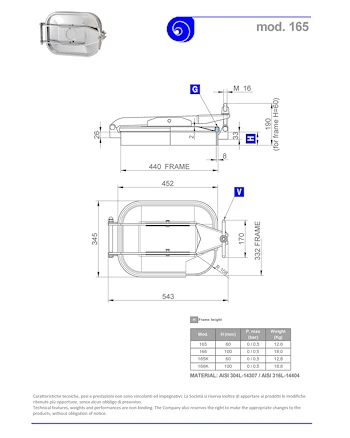

Model 165 304L

440 × 332mm Rectangular Pressure Manway



304L Stainless Steel construction. EPDM Seal. 60mm high neck.
Opening outwards.
Gasket on cover not glued.
Standard with EPDM Gasket G/R165 and S.S. Handle V/I/165/A.
0.5 bar/g Max Pressure

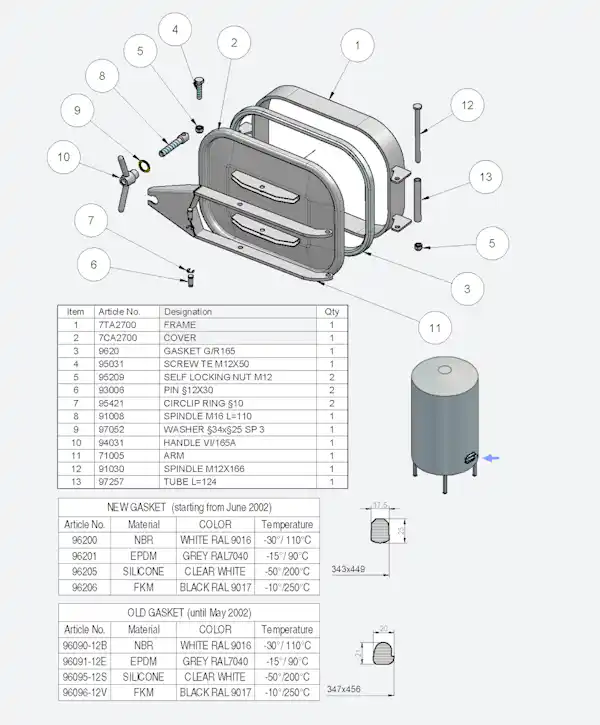

Exploded View

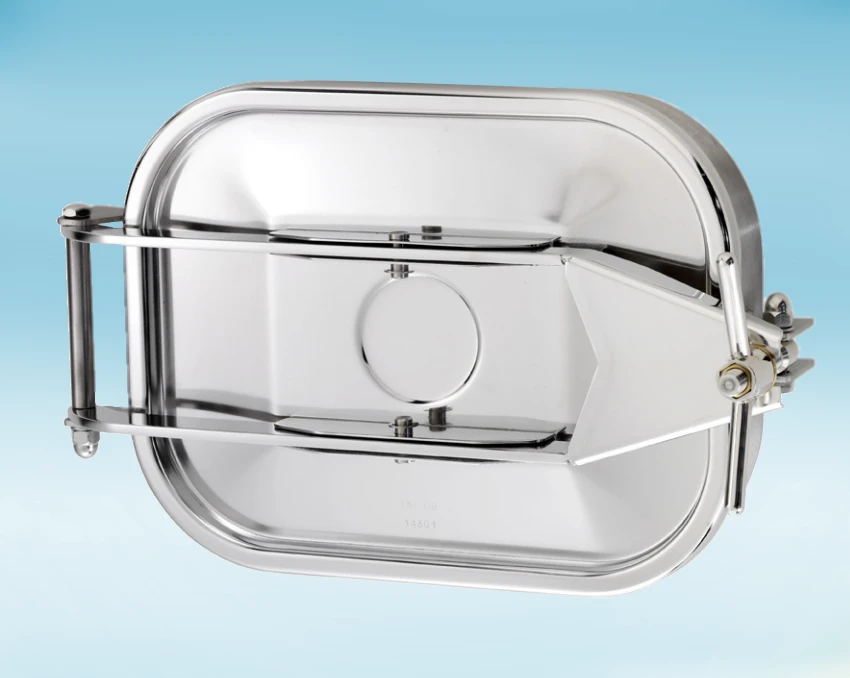

Stainless Steel 440 × 332mm Rectangular Pressure Manway 165 304L



In the event that you can't find the correct manway or you are looking for accessories, then please visit the Zorzini website to see the complete range. We would be happy to provide you with a quote and a lead time on any of the products there.
