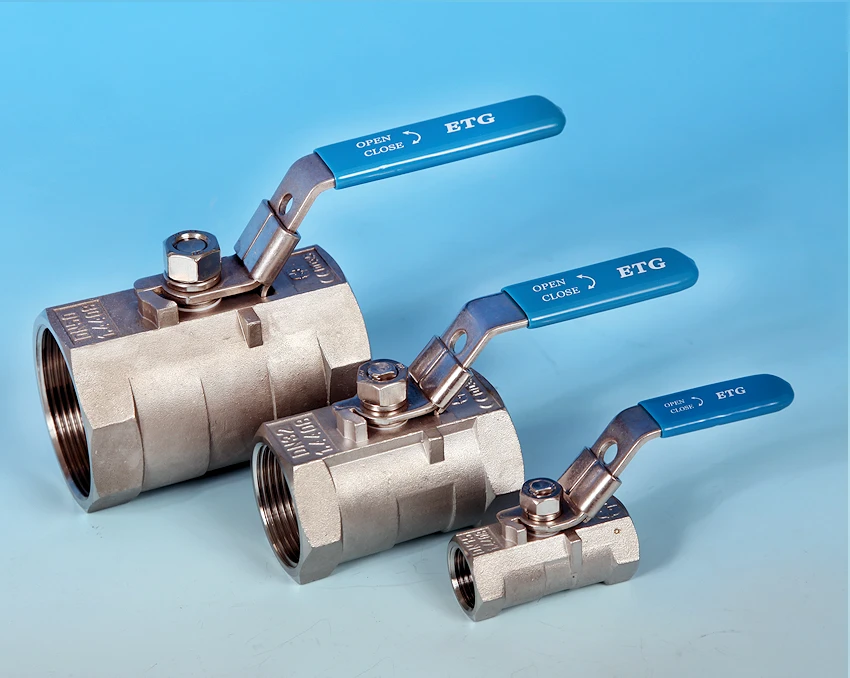

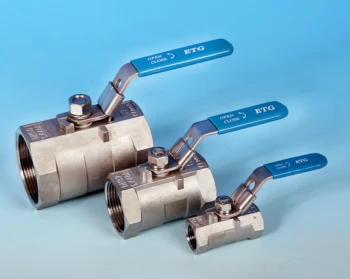

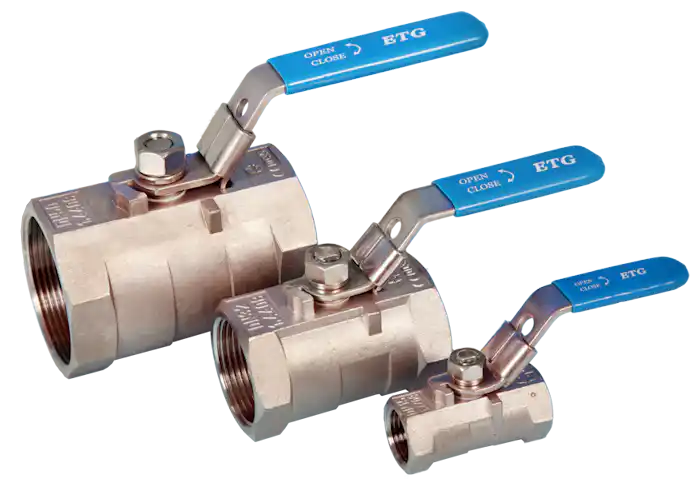

1-Pce Reduced Bore Ball Valve lever operated
ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
PTFE Seats and Seals. Slide type Locking Lever.
1000 psi/g Pressure rated. -20 / + 180 Deg C Temperature rated.
BSP and NPT Screwed end connections available.
CE marked (sizes 1 1/4” upward) in accordance with the PED 97/23/EC
A good quality, general purpose ball valve suitable for most Liquid and Gaseous duties
Full material Test Certificates available
Test standard – API 598
BSP Ends - ISO 7-1
NPT Ends - ASME B1.20.1
Available size range: 1/4” - 2”

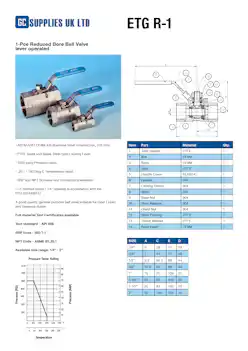

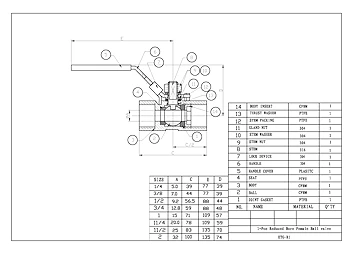

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.
Problems opening the Print Version? Click HERE
