manways

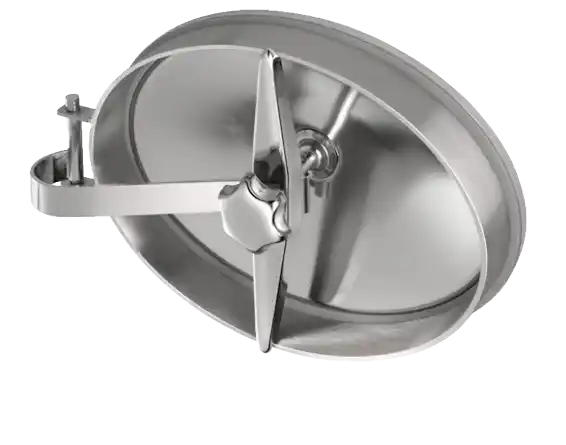

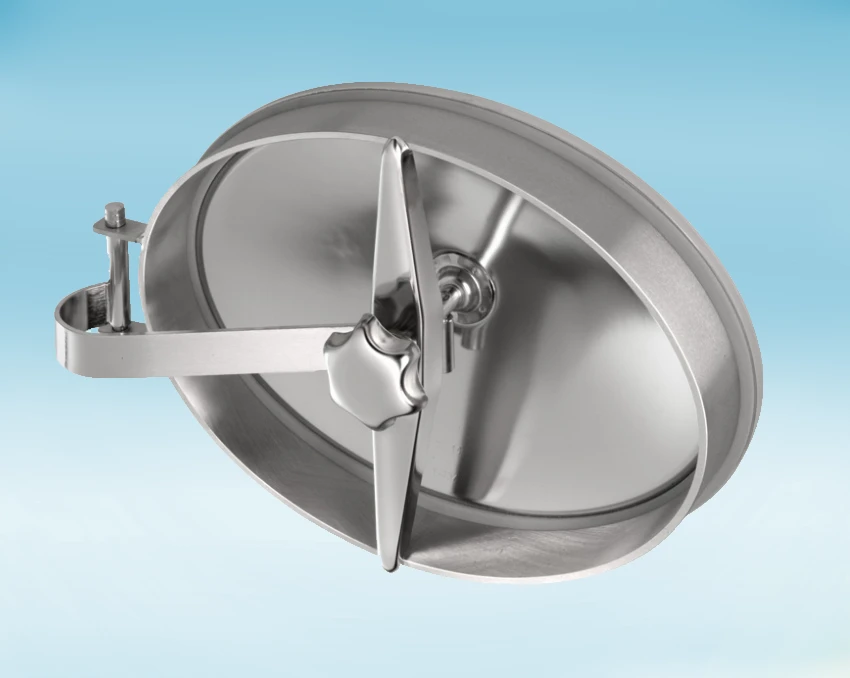

Model 182/B 316L

440 x 320mm Oval Pressure Manway



316L Stainless Steel construction. EPDM Seal. 80mm high neck.
Opening inwards.
Gasket on cover not glued.
Standard with EPDM Gasket G/170 and S.S. Handwheel MEC/80.
1.3 bar/g Max Pressure
PED Certified

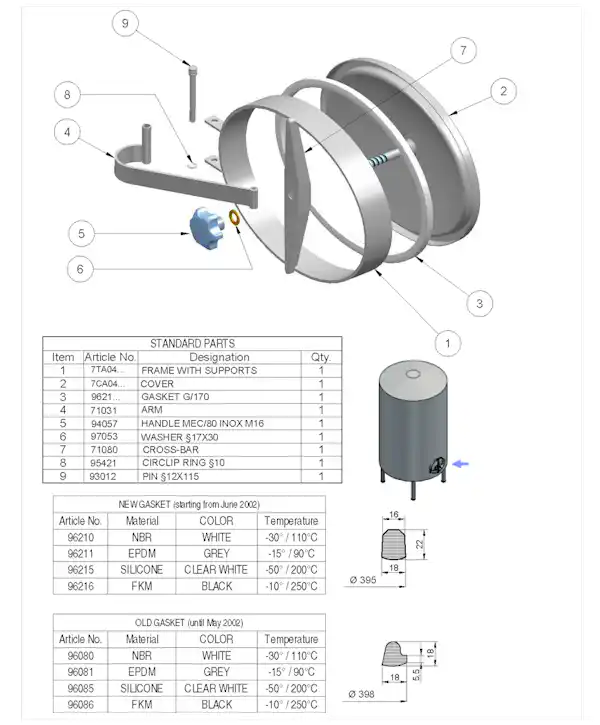

Exploded View

Stainless Steel 440 x 320mm Oval Pressure Manway 182/B 316L
