ETG JG/FT-1

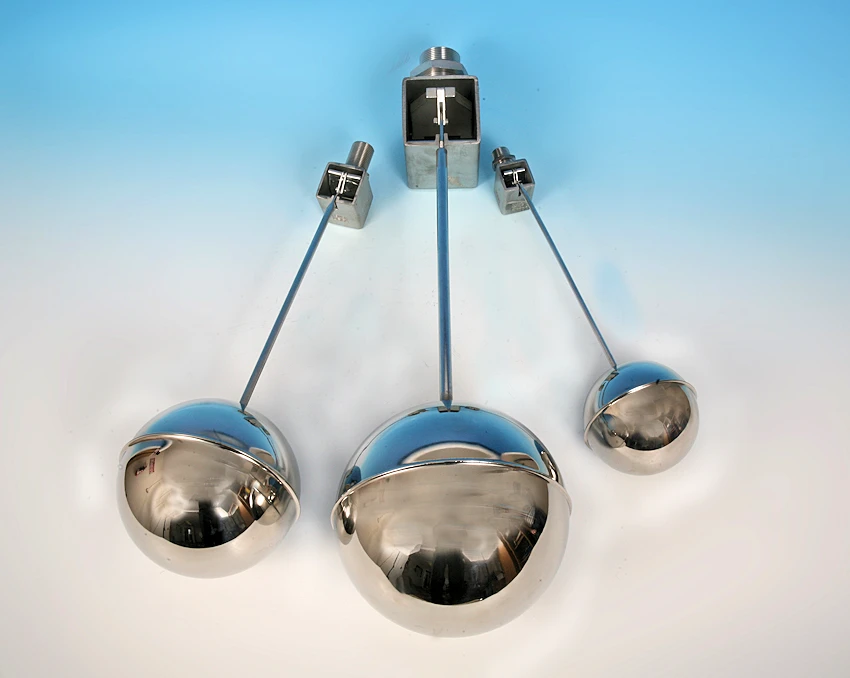

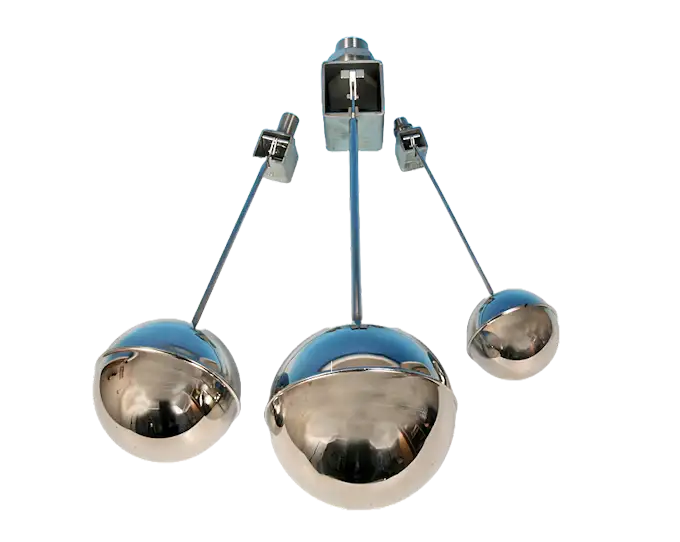

Screwed Stainless Steel Ball Float Valve

ASTM A351 CF8M 316 Stainless Steel construction.
Silicon Seal. Simple “Portsmouth” pattern design.
+150 Deg C temperature rated. 10 Bar/g pressure rated.
Valve is supplied complete with relevant size 316 Float.
BSPP ISO 228/1 Male connection c/w Backnut.

This valve is designed for simple and cost effective fluid level control within open tanks and vessels. Other Seal Materials are available upon application.
“Non-Bubble” type Valves and Flanged options are also available on special order.

Available size range: 1/2” - 3”

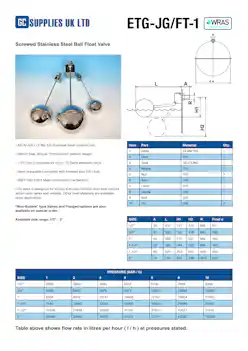

Drawings:

Download file Print View View Full Screen Get 7z Get Acrobat Reader

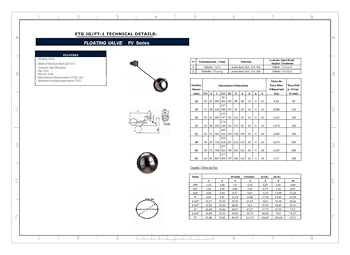

Screwed Stainless Steel Ball Float Valve ETG JG/FT-1 Enlarge

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.

Problems opening the Print Version? Click HERE
