ETG-M-2HP-PNU/DA Double Acting Pneumatic Actuated (Air/Air)
ETG-M-2HP-PNU/SA Single Acting Pneumatic Actuated (Air/Spring)
ETG-M-2HP-ELE/DA Double Acting Electric Actuated

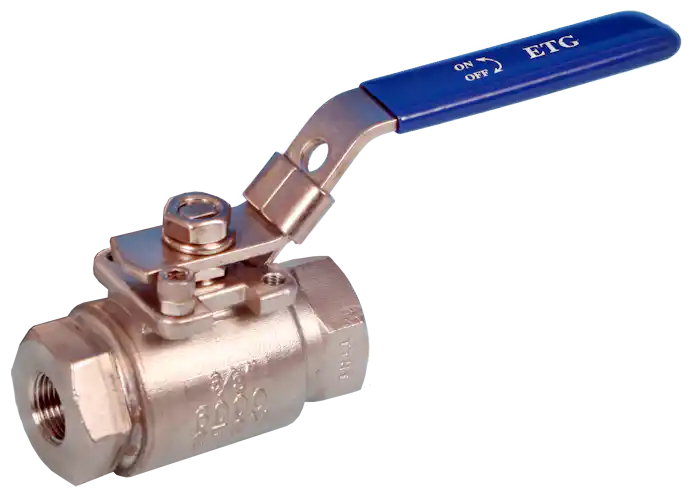

High Pressure 2-Piece Full Bore Actuated Ball Valves

Screwed BSPT or NPT end connections. ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim. 6,000 psi/g pressure rated. -20/+80 deg C Temperature rated.
Delrin (POM) Ball Seats and PTFE Seals. Adjustable stem.
ISO 5211 Non-Direct Mount. Blow-out Proof Stem. Nace MR-0175 compliant. EN 10204 3.1 material certification available.
Available size range: 1/4” - 1”.

Pneumatic Actuators

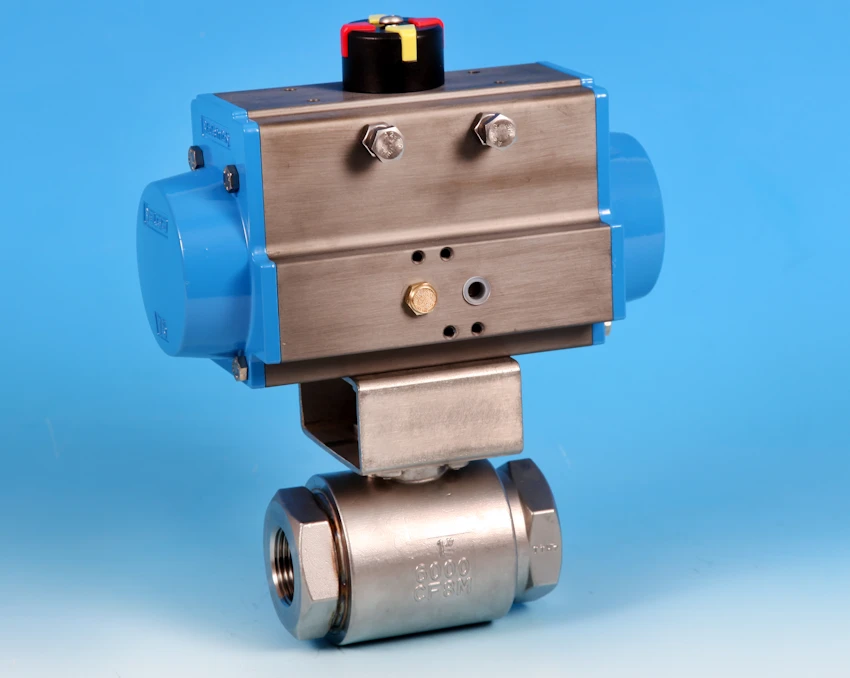

Valve shown above is fitted with quarter turn Aluminium Rack and Pinion Single (Air Spring) or Double (Air/Air) Acting Actuator. Actuator is Atex compliant and SIL 3 rated. Actuator Packages are fully assembled and functionally tested (dry bench test on 5.5 bar/g air supply) in house prior to dispatch.

Options include Namur Mount Pilot Solenoids, Switch Boxes, Positioners, De-Clutchable Gearboxes and alternative materials of construction, such as Stainless Steel, or special coatings, such as PTFE.

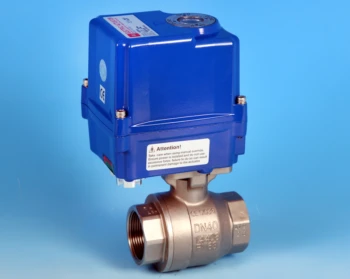

Electric Actuators

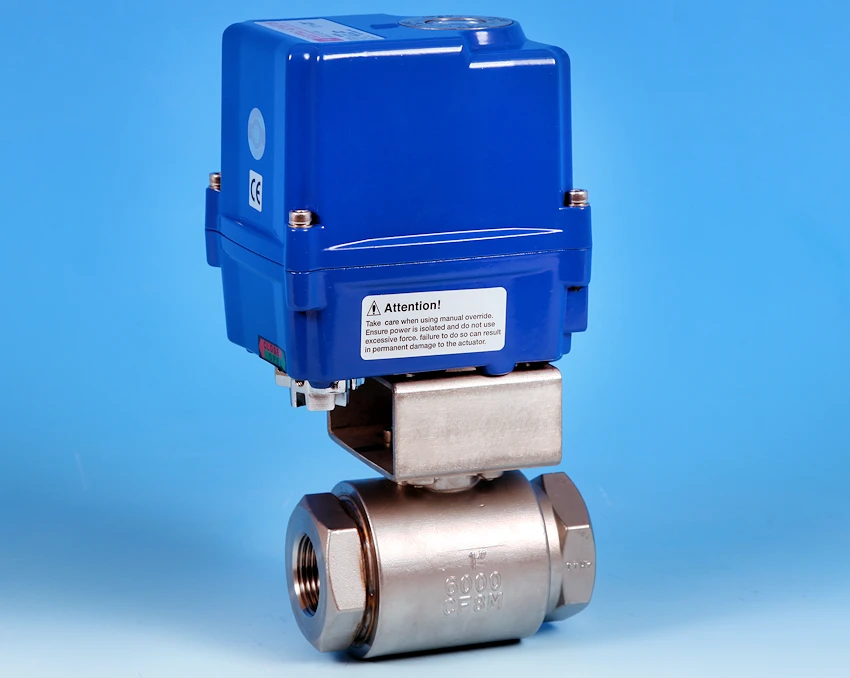

Valve shown bottom left is fitted with quarter turn Electric Double Acting (Power Open/Power Close) Actuator. Model shown is HQ4/6. All electric actuators have manual override facility, open/close visual indication, IP67 rating, anti-condensation heater, four limit switches, push button terminal strip, wiring diagram and reversible motor with low power consumption. Output torques of 40 to 3,000 Nm.

Options include IP68 double sealed housing, local controls, 4-20 mA and 0-10v modulation control, Atex Eexd enclosure, High Temperature fire protection, speed control and battery back-up.

Actuator Sizing Chart

  1/4" 3/8" 1/2" 3/4" 1"
PNU DA 52 52 52 52 63
PNU SR 52 52 52 63 75
ELE DA HQ4 HQ4 HQ4 HQ4 HQ4



Drawings & Spec Sheets:

    Model 52-100       Model 52-230        HQ004-HQ006        HQ008-HQ120

Actuator Model 52-100 Actuator Model HQ004-HQ006 Actuator Model HQ008-HQ120

Download file Get 7z Get Acrobat Reader

Download the PDF, unzip the file, we recommend 7z which is free and use a PDF reader such as Adobe Reader, also free. See links left.
