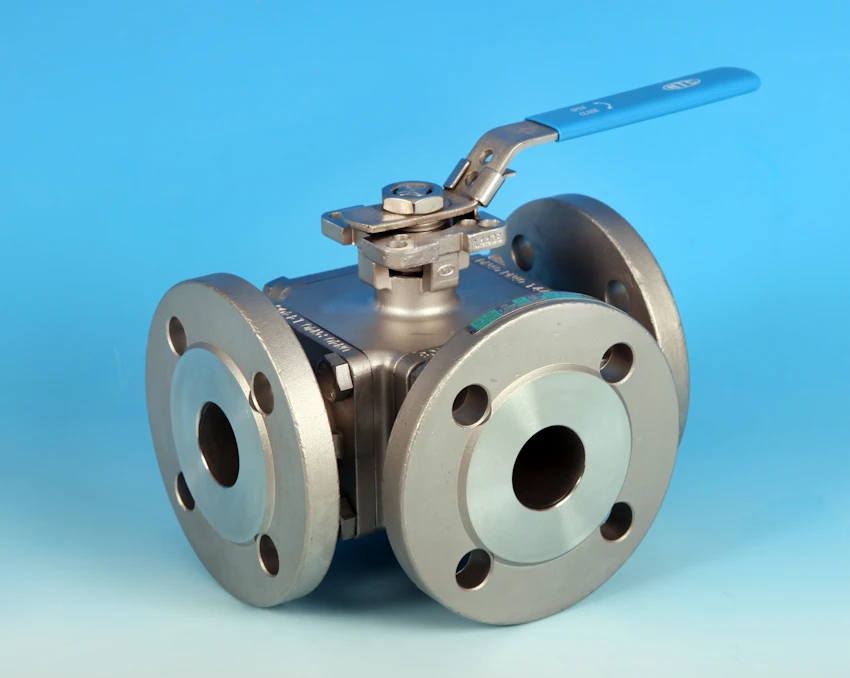

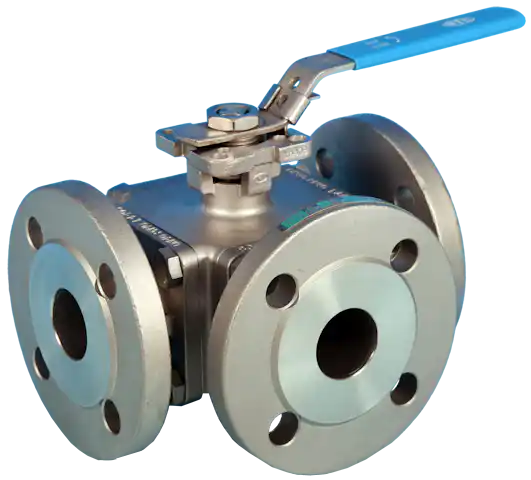

3-Way Direct Mount Flanged PN16/40 Ball Valve
ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
TFM 1600® Ball Seats. PTFE Body and Stem seals.
Nace MR-0175 compliant. Ta-Luft self adjusting stem.
ISO 5211 Direct Mounting Pad and Square Stem for automation.
Locking Lever at 90 degree increments. Fully supported ball.
1/2” - 2” PN40 rated. 2 1/2” - 4” PN16 rated.
Anti-Static devices for Ball-Stem-Body. ATEX approved.
TFM 1600® is an FDA & WRAS certified material.
Silicone Free. Valve suitable for use on Oil based Paints.
100mm high Spindle Extension for Insulation & Steam Actuation

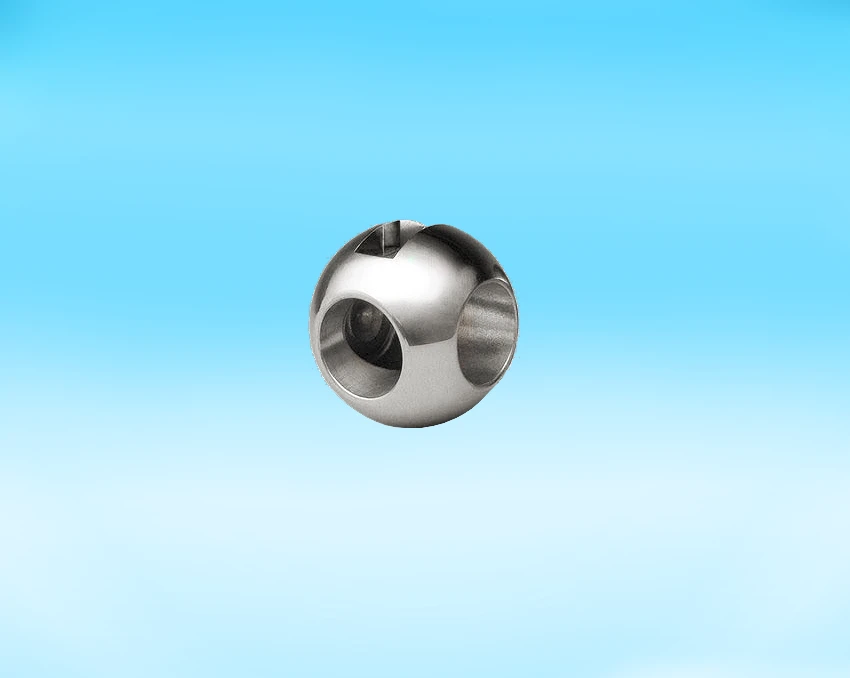

LL-Port Ball configuration available on special order
Direct Mount Spring Handle/Lever for sampling/diverting
Design Standard: DIN 3375/1,2. EN12516-1
Wall Thickness: ASME 16.34
Inspection & Testing: DIN 3230/3, EN12266
Available size range: 1/2” - 4”

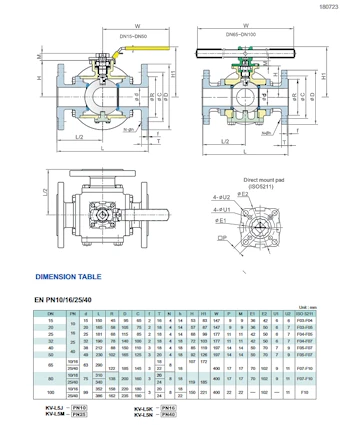

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.
