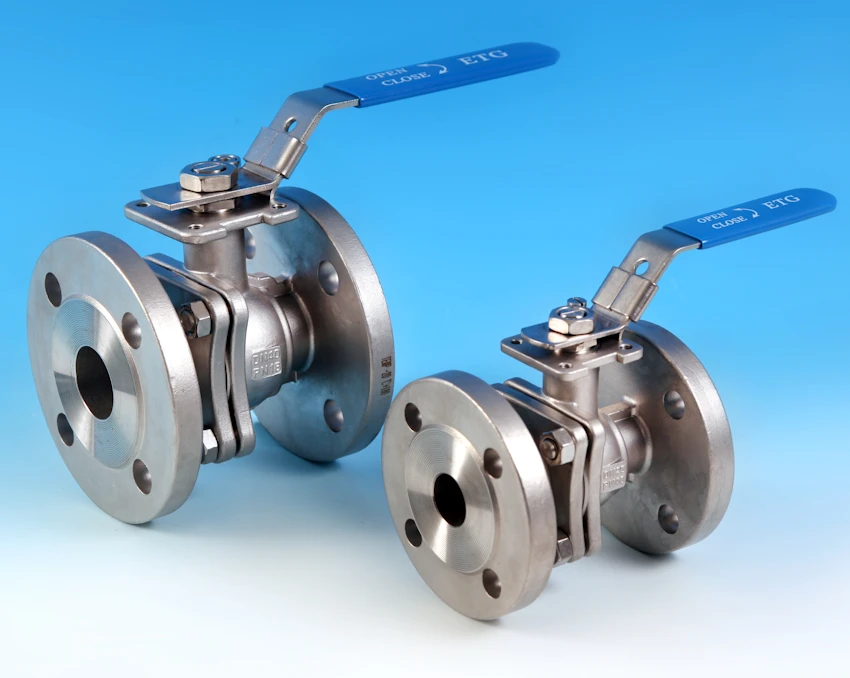

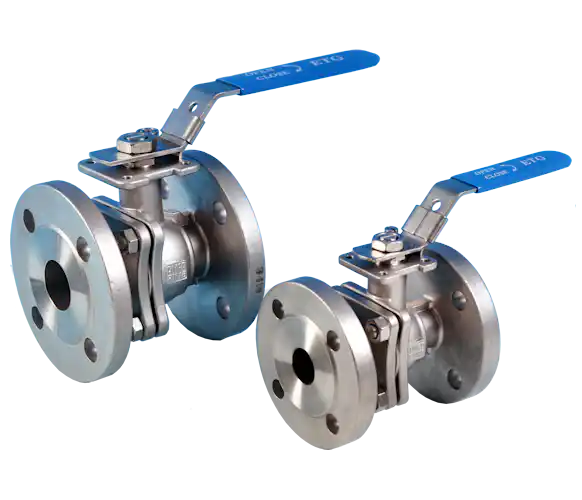

2-Pce Full Bore Flanged PN16 Ball Valve lever operated
ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
PTFE Seats and Seals. Adjustable gland. Lever operated with Slide Type Locking Device (1/2" - 4").
Firesafe design (not certified). ISO 5211 Mounting Pad (non-direct mount).
16 Bar/g pressure rated. -20 / + 180 Deg C Temperature rated.
Pressure balancing hole drilled into ball/stem slot
CE marked (sizes 1 1/4” upward) in accordance with the PED 97/23.
A good quality, cost effective general purpose flanged ball valve suitable for most Liquid and Gaseous duties.
DIN 3202 F-4 Face to Face dimension (DIN 3202 F-5 on 6" size).
Full material Test Certificates available.
Available size range: 1/2” - 6”

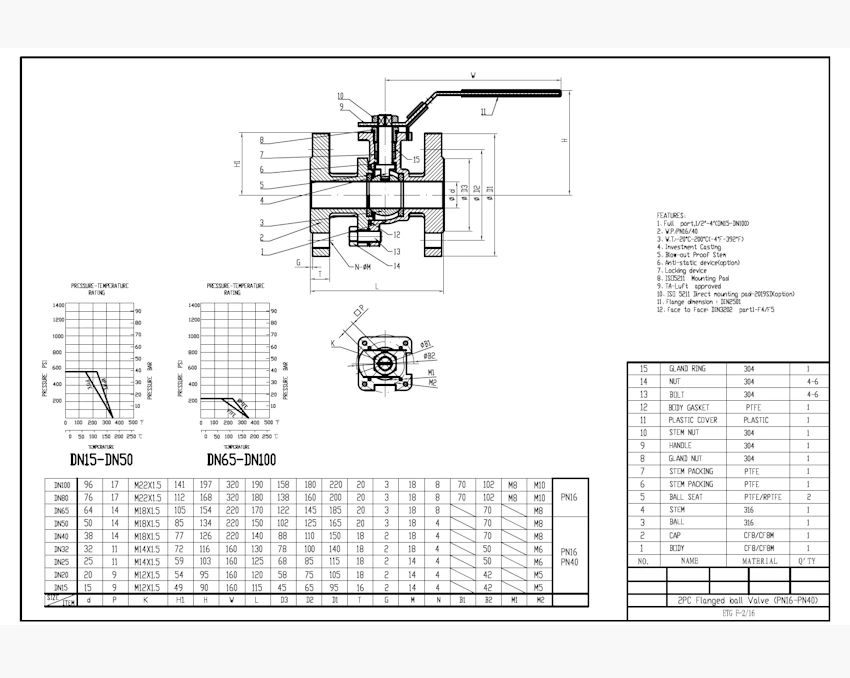

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.
Problems opening the Print Version? Click HERE
