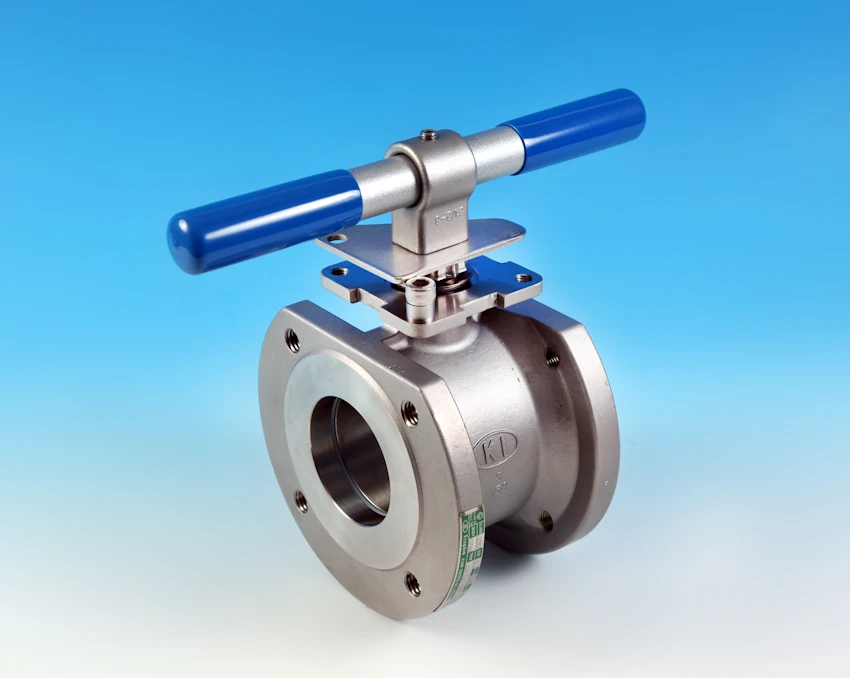

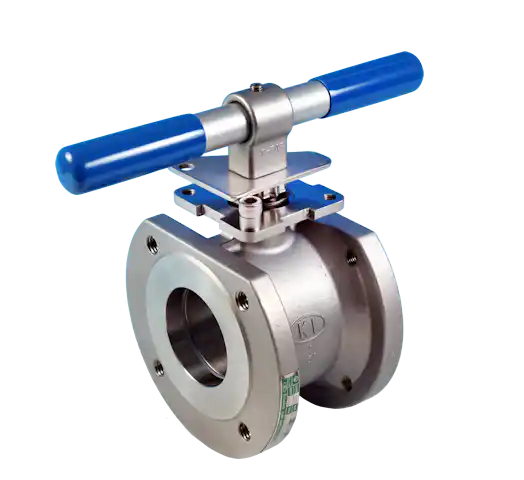

Wafer Pattern Flanged ANSI 150 Ball Valve
ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
TFM 1600® Ball Seats. PTFE Body and Stem seals.
Nace MR-0175 compliant. Ta-Luft approved Stem Sealing.
ISO 5211 Non-Direct Mounting Pad (bracket & coupling required).
Anti-Static devices for Ball-Stem-Body.
TFM 1600® is an FDA & WRAS certified material.
Silicone Free. Valve suitable for use on Oil based Paints.
30, 60 & 90 Degree V-Ball for Modulation Duties
Fire safe version available to API 607 5th Ed, ISO 14097
Design Standard: ASME B16.34, API 608
Wall Thickness: ASME B16.34
Inspection & Testing: API 598, API 6D
Available size range: 2” - 4”

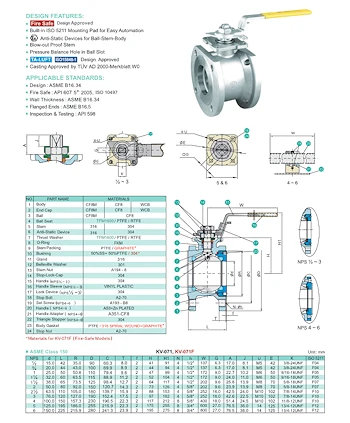

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.
Problems opening the Print Version? Click HERE
For full details of our NTC High Performance Range, technical data, product images and more, visit http://ntcvalves.co.uk
