Angle Seat Piston Valve

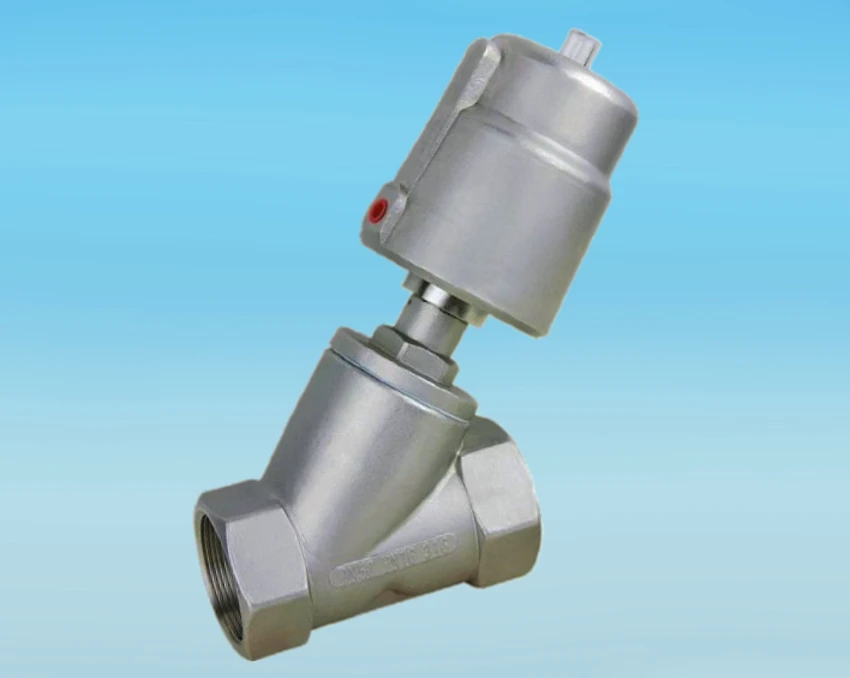

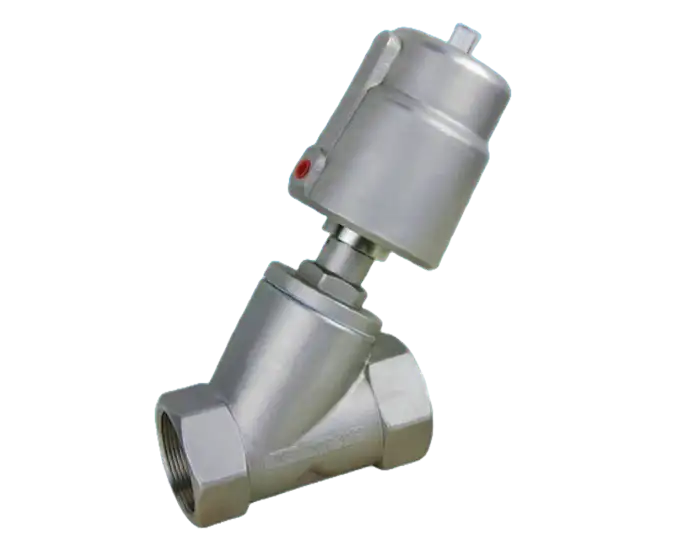

Fig ETG ASPVSS-B

2 Way Stainless Steel Direct Acting Angle Seat Valve

ASTM A351 CF8M 316 Stainless Steel body construction.
ASTM A351 CF8 304 Stainless Steel Actuator (360 deg rotation).
PTFE Valve Seat. FKM Actuator Seals.
1/8” (3/8” - 2”) or 1/4” (2 1/2” - 3”) BSP Air Connection.
Normally Closed, Pilot pressure to Open. Flow above seat design.
0 – 16 bar/g Pressure rated. -10 to +200 deg C Temperature rated.
Can be mounted in any orientation within the pipeline.
5 – 8 bar Air/Water/Gas pilot pressure required.
Screwed BSP end connections as standard (NPT and Flanged end connections available on request).
Visual Indicator, Flow Under Seat, Normally Open and Proximity
Switch options are available on request.

Available size range: 3/8” - 3” (3” model double acting only).
Please ask our sales office for further details.

Please note: these goods are not held in stock at our
Manchester warehouse but are availble on short lead times.
Please enquire with our sales office.

Drawings:

Download file Print View View Full Screen Get 7z Get Acrobat Reader

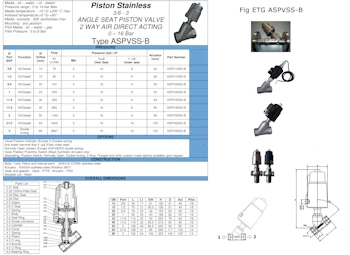

2 Way Stainless Steel Direct Acting Angle Seat Valve Fig ETG ASPVSS-B Enlarge

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.

Problems opening the Print Version? Click HERE
