ETG GT150

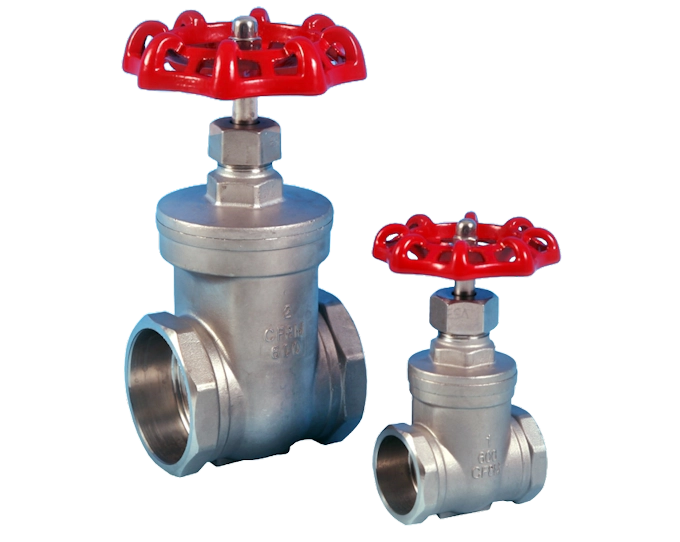

Flanged Pattern Gate Valve ANSI 150

ASTM A351 CF8M 316 Stainless Steel Body, Bonnet and Wedge.
316 Stainless Steel Stem and Trim. Ductile Iron painted Handwheel.
PTFE Gland Packing and Bonnet Seal. Bronze Bush.
Bolted Bonnet. Outside Screw and Yoke. Rising Stem. Solid Wedge.
Face to Face dimensions in accordance with ANSI B16.10
Class 150 pressure rated. -20 / +180 deg C Temp rated.
Flanged ANSI 150 end connections.
CE marked in accordance with the PED 97/23/EC (from 1 1/2”).

This valve is a fully flanged unit that is designed to be bolted into the pipeline using flange connections.
All of our ANSI Flanged Gate, Globe, Check and Y-Strainer Valves conform to ANSI B16.10 face to face dimensions.
Design Standard – API 600
Test Standard – API 598

Available size range: 1/2” - 6”

Drawings:

Download file Print View View Full Screen Get 7z Get Acrobat Reader

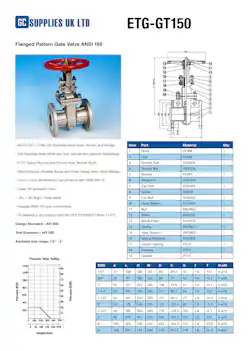

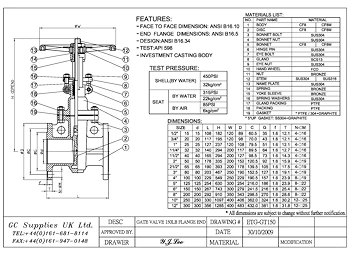

Flanged Pattern Gate Valve ANSI 150 ETG-GT150 Enlarge
