Stainless Steel Manual Vent Plugs
S/S Manual Vent Plugs

Manual Vent Plugs

miscellaneous valves

Manual Vent Plugs

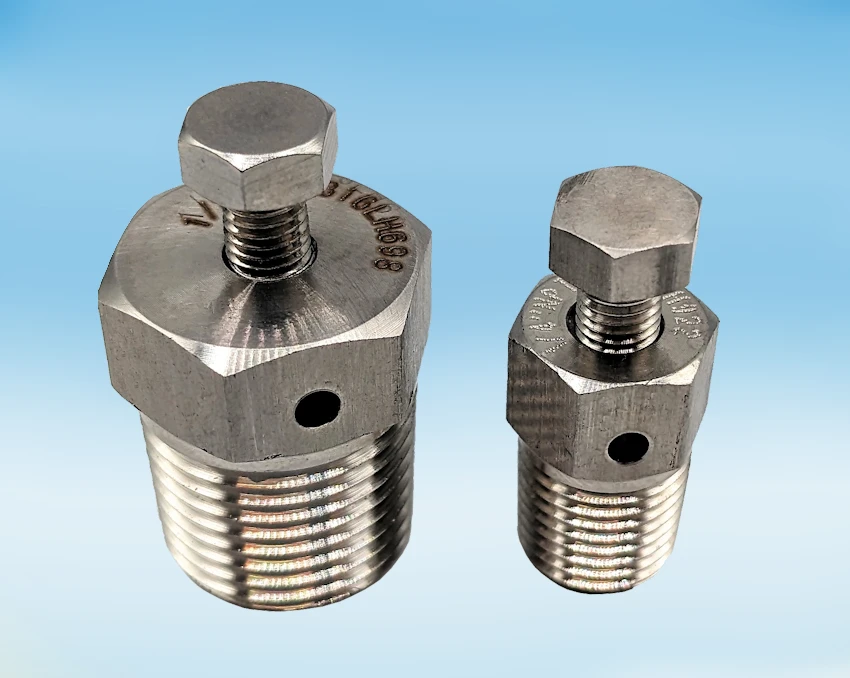

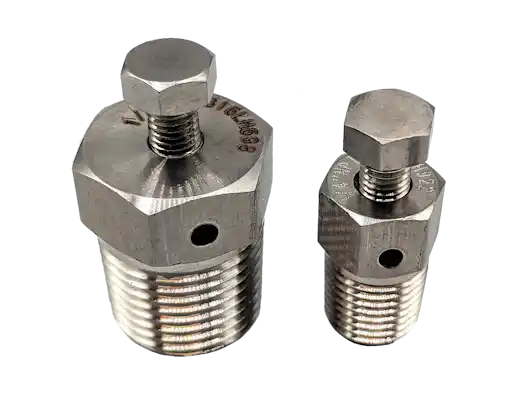

Stainless Steel Manual Vent Plugs.

ASTM A479 316L Stainless Steel Bar Construction.
BSPT and NPT Thread forms available from stock.
Threads in accordance with BS21 Taper and ASME B1.20.1
Vent Plugs are generally used to evacuate Air (or other non-hazardous Gases) from a Pipeline or piece of equipment
Manually using the "Bleed Screw" located in the head of the Plug which escapes through a hole drilled into the side of the Plug.

For Automatic Air "Venting" see here:

CNC Precision machined from solid bar, not manufactured from castings.

EN 10204 3.1 Material Certification available.

Available size range: 1/4" and 1/2" NPT & BSPT only

For full details of our NTC High Performance Range, technical data, product images and more, visit
