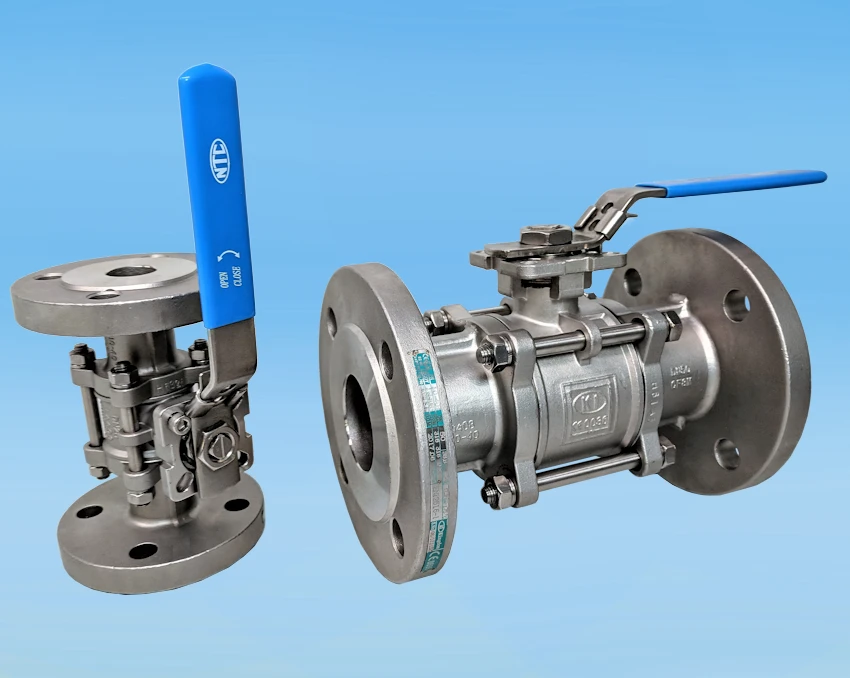

NTC KV-L3F/N (Flanged PN40)
NTC KV-L3F/K (Flanged PN16)

high performance valves

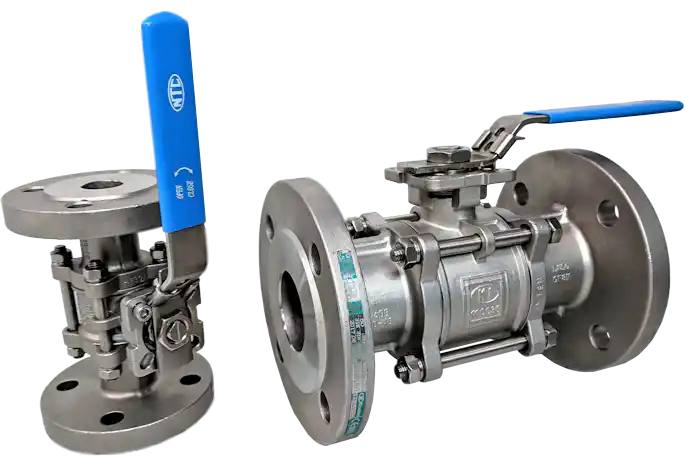

3-Pce Full Bore Flanged DIN PN16/40 Direct Mount Ball Valve

KV-L3F/N (1" - 2") = PN40
KV-L3F/K (2.1/2" - 4") = PN16

ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
TFM 1600® Ball Seats and Seals.
Ta-Luft self adjusting stem sealing. ISO 15848 Certified.
ISO 5211 Direct Mounting Pad and Square Stem for automation.
Anti-Static devices for Ball-Stem-Body. ATEX certified.
TFM 1600® is an FDA & WRAS certified material.
Silicone Free. Valve suitable for use on Oil based Paints.

1" - 3" Lever Operated with Locking Device
4" T-Bar Operated with Locking Device

Available size range: 1/4” - 4”

Options available:

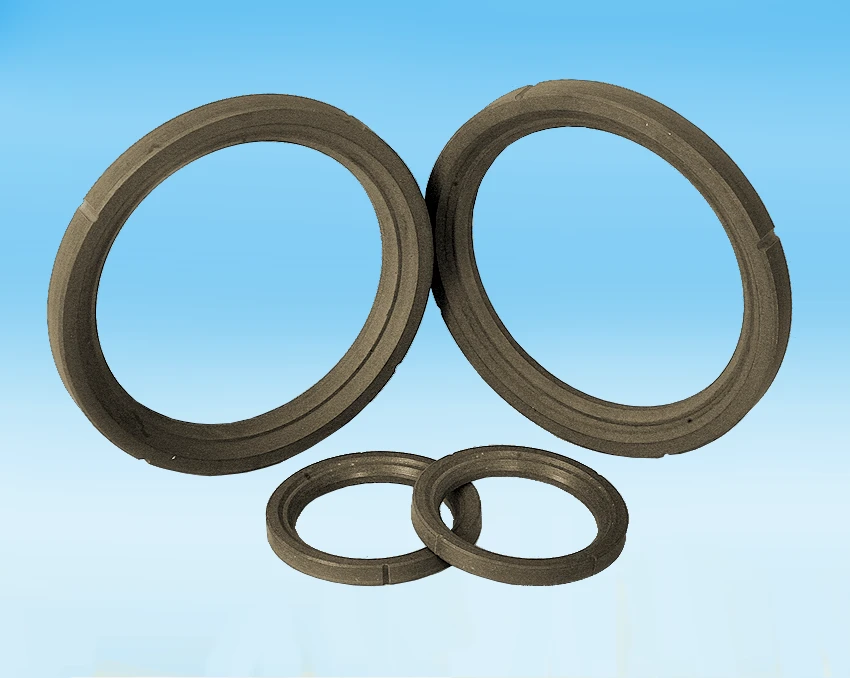

 50% S/S Filled PTFE Ball Seats50% S/S Filled PTFE Ball Seats

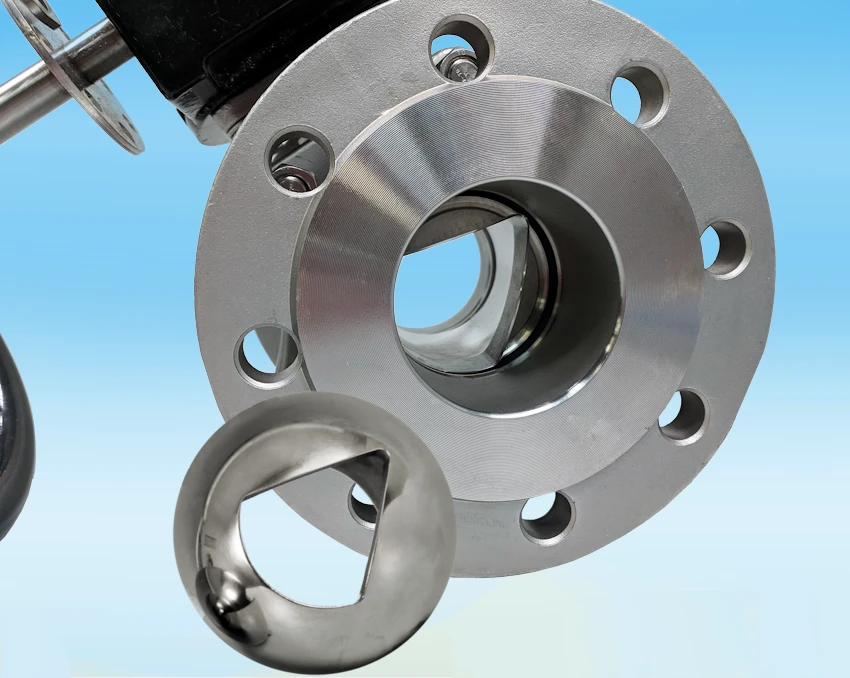

30, 60 and 90 Deg V-Ball for modulation duties 60 Deg V-Ball for modulation duties.

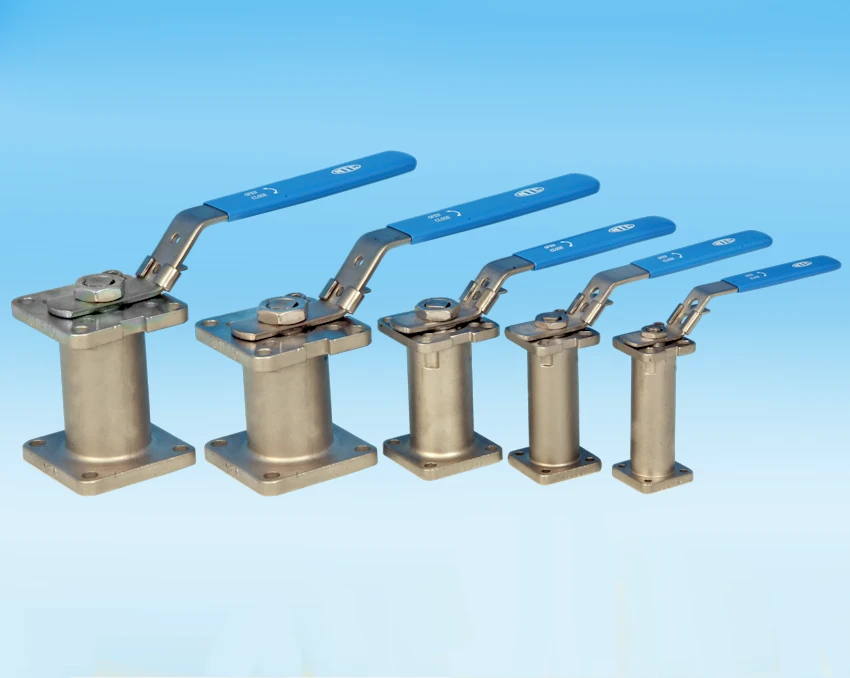

100mm/120mm high Spindle Extension for Insulation & Steam Actuation100mm high Spindle Extension for Insulation & Steam Actuation

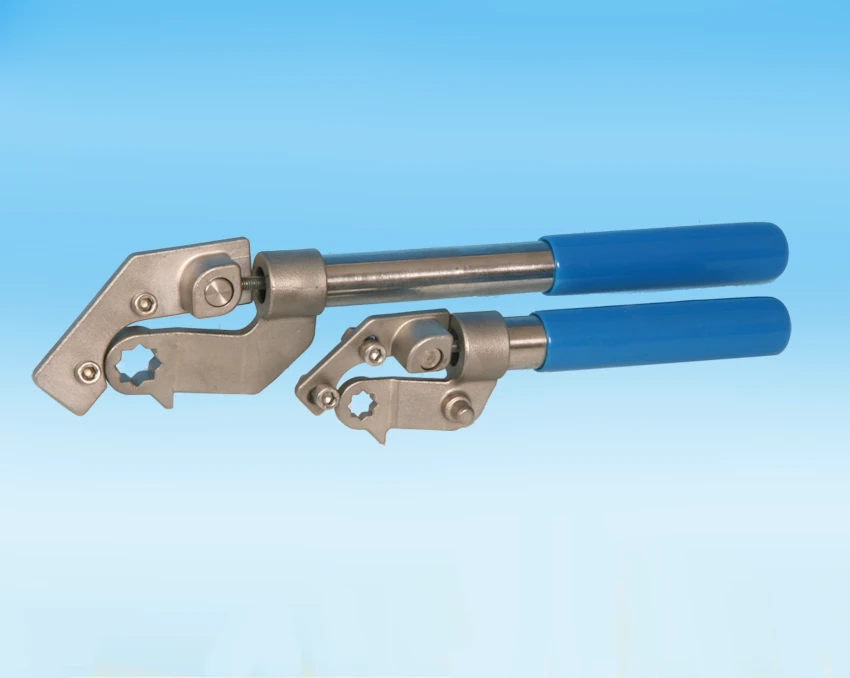

Direct Mount Spring Handle Direct Mount Spring Handle/Lever

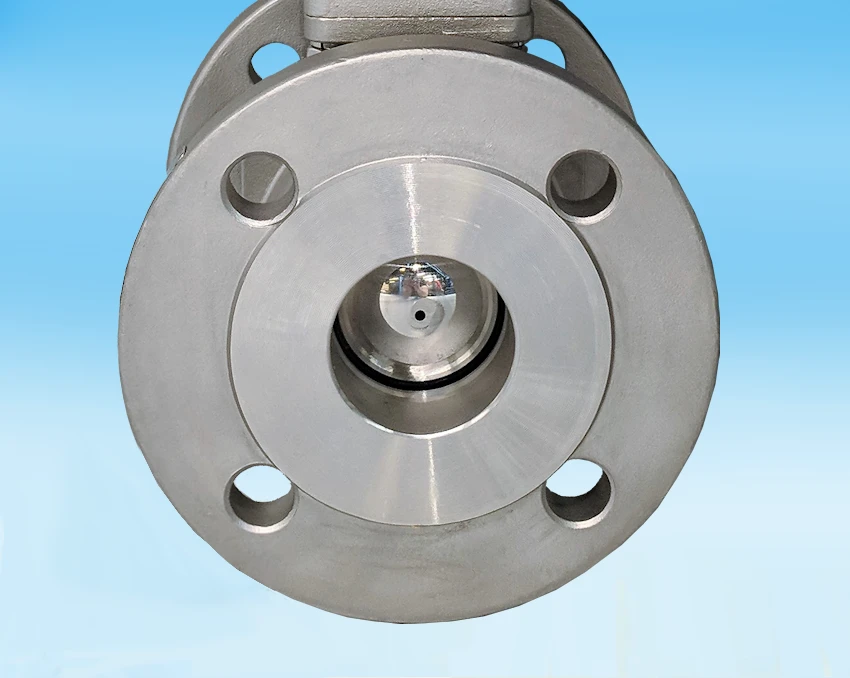

Upstream Ball and Cavity Relief hole drilled into Stainless Steel BallUpstream Ball and Cavity Relief hole drilled into Ball

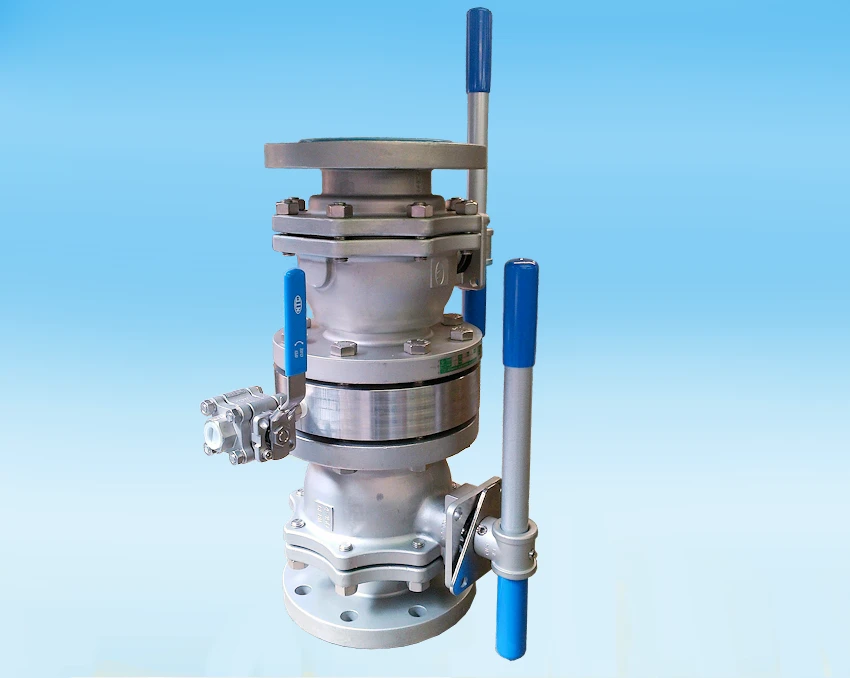

Carbon Steel 2-Pce Full Bore Flanged ANSI 150 Direct Mount Ball Valve NTC KV-L61-CDouble Block & Bleed Assembly

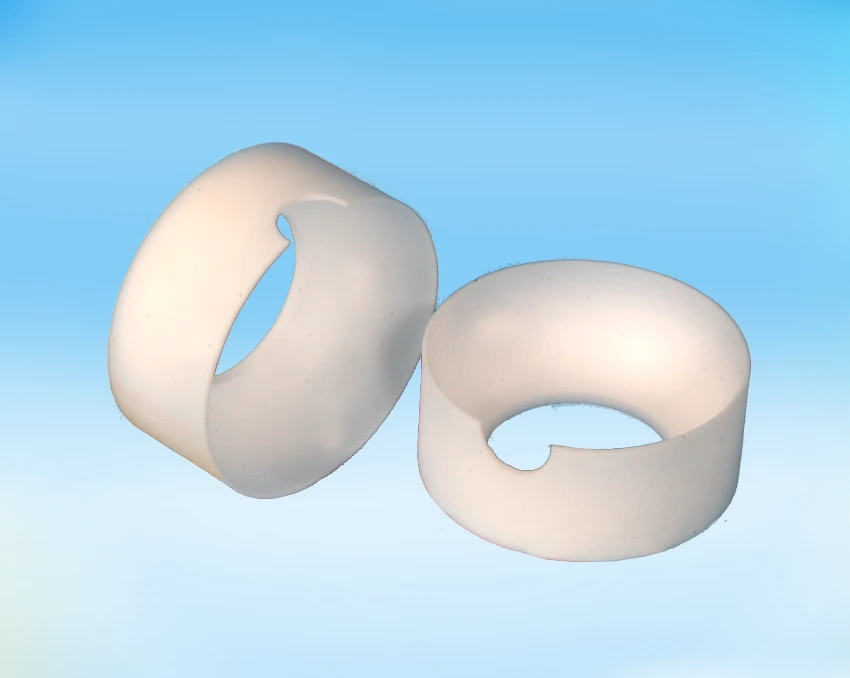

TFM 1600 Cavity Filled Ball SeatsTFM 1600 Cavity Filled Ball Seats

Design Standard: MSS SP-110
Wall Thickness: EN 12516-3
Inspection & Testing: MSS SP-110

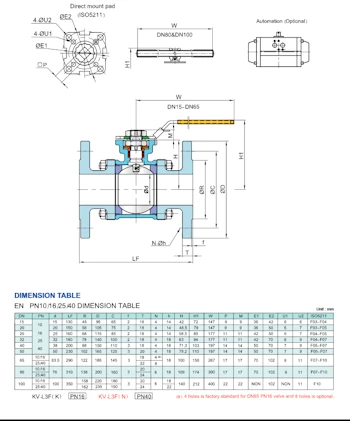

Face to Face Dimension:>
DIN 3202 F-1 Long Pattern



Certified ATEX Certificate DNV Certificate TA-Luft Certificate FDA Certificate
