TC KV-L6N-C PN40 Flanged
NTC KV-L6K-C PN16 Flanged

high performance valves

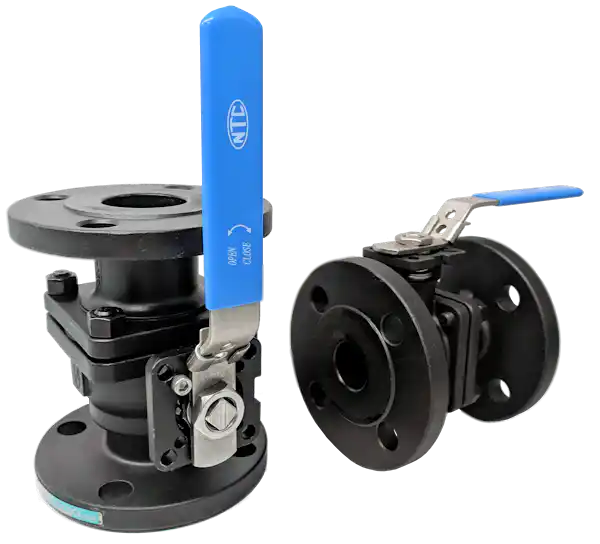

Carbon Steel 2-Pce Full Bore Flanged DIN PN16/40 Direct Mount Ball Valve

KV-L6N (1/2" - 2") = PN40
KV-L6K (2.1/2" - 6") = PN16

Firesafe Design and Construction, certified API 607 5th Ed 2005, ISO 10497-5.

ASTM A216 WCB Carbon Steel construction, 304 Trim.
TFM 1600® Ball Seats. Grafoil/316 Body Seal and Grafoil Stem packing.
Ta-Luft self adjusting stem sealing. ISO 15848 Certified.
ISO 5211 Direct Mounting Pad and Square Stem for automation.
Anti-Static devices for Ball-Stem-Body. ATEX certified.
TFM 1600® is an FDA & WRAS certified material.
Silicone Free. Valve suitable for use on Oil based Paints.

1/2" - 2.1/2" Lever Operated with Locking Device
3" - 6" T-Bar Operated with Locking Device

Available size range: 1/2” - 6”

Options available:

50% S/S Filled PTFE Ball Seats50% S/S Filled PTFE Ball Seats
30, 60 and 90 Deg V-Ball for modulation duties60 Deg V-Ball for modulation duties.
100mm/120mm high Spindle Extension for Insulation & Steam Actuation100mm high Spindle Extension for Insulation & Steam Actuation
Direct Mount Spring HandleDirect Mount Spring Handle/Lever
Valve fitted with Fabricated S/S Heating Jacket.Fabricated Heating Jacket.
Upstream Ball and Cavity Relief hole drilled into Stainless Steel BallUpstream Ball and Cavity Relief hole drilled into Ball
Carbon Steel 2-Pce Full Bore Flanged ANSI 150 Direct Mount Ball Valve NTC KV-L61-CDouble Block & Bleed Assembly

Design Standard: EN 12516-1
Wall Thickness: EN 12516-1
Inspection & Testing: EN 12266-1
Face to Face Dimension:
DIN 3202 F-4 (1/2" - 4") DIN 3202 F-5 (5" - 6")


Additional Information:

Installation, Operation & Maintenance Instructions

MAST (Maximum Allowable Stem Torque)


Certified ATEX Certificate DNV Certificate TA-Luft Certificate FDA Certificate Firesafe Certificate
