hygienic valves & fittings

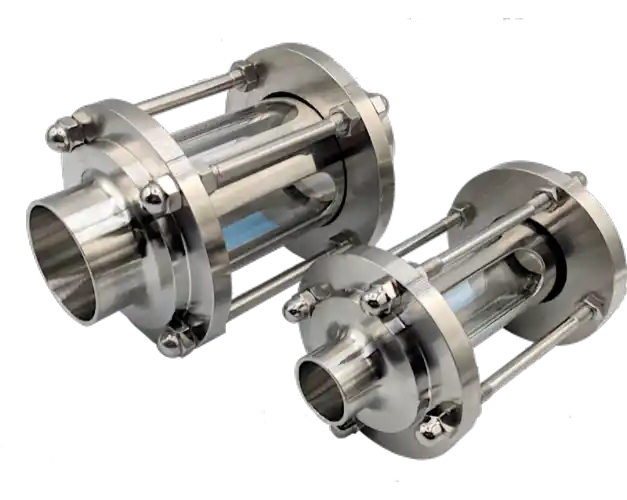

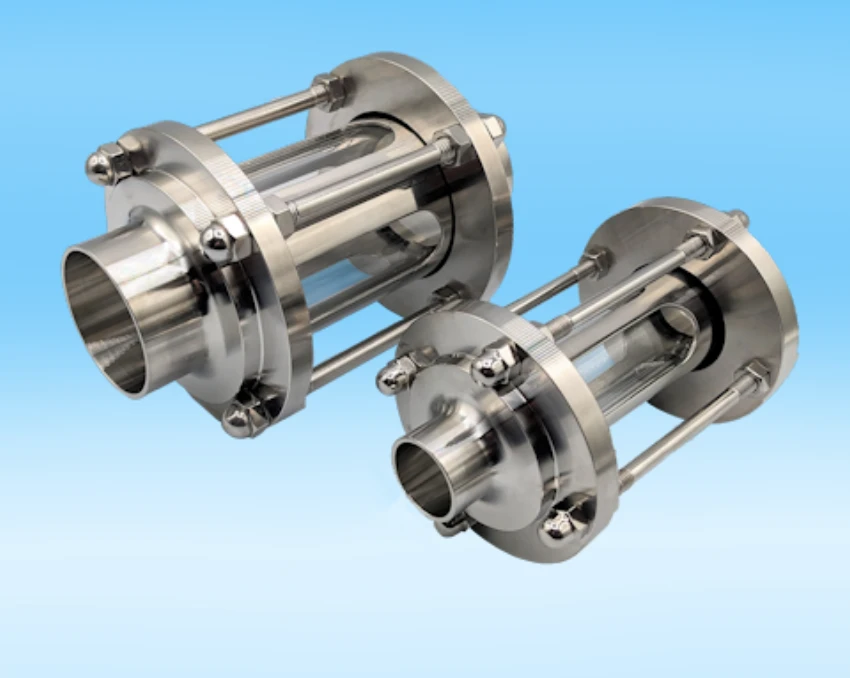

Hygienic Tubular Sight Glass Plain Weld Ends

F316L Stainless Steel Construction.
FDA Food Grade EPDM Seals fitted as standard.
Borosilicate Tempered Glass. S/S Glass Protector sleeve.
115 psi (8 bar/g) pressure rated.
-10 to +120 deg C max Temp.
Plain Weld Ends to weld directly onto Imperial O/D BS4825 Tubing.

3.1 Material Certificates available upon request

A good all round, robust general purpose Hygienic Inline Sight Glass.
Compact and robust design.

Other connections such as RJT, Clamp, SMS, IDF and DIN available to order.

PTFE Seal conforms to FDA 177.2600 standards.
0.8 Ra Polish on internals.

Available size range: 1” up to 4 in stock


Datasheet For Socket-Weld 3-Piece Spring Check Valve

For full details of our NTC High Performance Range, technical data, product images and more, visit http://ntcvalves.co.uk
