NTC KV-062

high performance valves

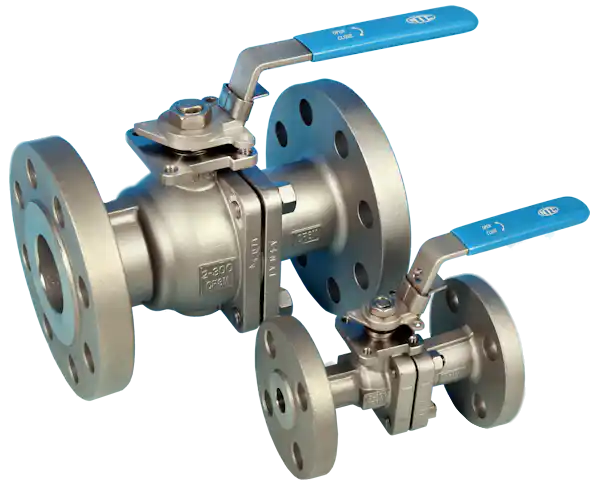

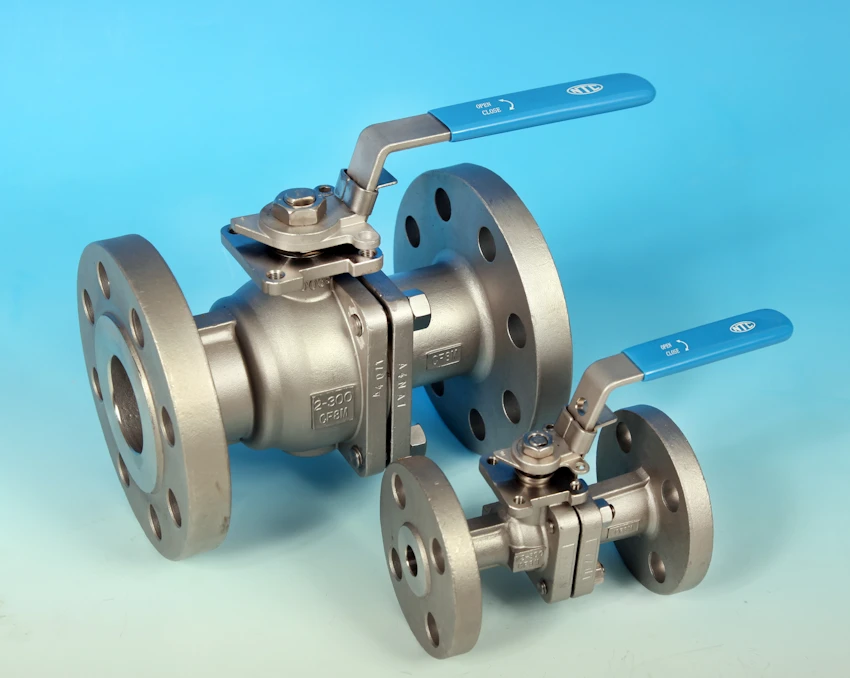

2-Pce Full Bore Flanged ANSI 300 Ball Valve

Firesafe Design and Construction, certified API 607 5th Ed 2005, ISO 10497-5.
ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
TFM 1600® Ball Seats. Grafoil Body Seals and Stem packing.
Nace MR-0175 compliant.
ISO 5211 Non-Direct Mounting Pad (except 6" which is Direct Mount). Locking Lever
Anti-Static devices for Ball-Stem-Body. ATEX approved.

TFM 1600® is an FDA & WRAS certified material.

Silicone Free. Valve suitable for use on Oil based Paints.

Options available:

50% S/S Filled PTFE Ball Seats50% S/S Filled PTFE Ball Seats
 30, 60 and 90 Deg V-Ball for modulation duties30, 60 and 90 Deg V-Ball for modulation duties.
Valve fitted with Fabricated S/S Heating Jacket.Fabricated Heating Jacket.
Upstream Ball and Cavity Relief hole drilled into Stainless Steel BallUpstream Ball and Cavity Relief hole drilled into Ball

Actuator Kit for Automation

Actuator Kit required for Automation.

Installation, Operation & Maintenance Instructions

Top Works (Please select a size to view information):

Top Works for 1/2" NTC KV-062 Top Works for 3/4" NTC KV-062 Top Works for 1" NTC KV-062 Top Works for 1.1/4" NTC KV-062 Top Works for 1.1/2" NTC KV-062 Top Works for 2" NTC KV-062 Top Works for 2.1/2" NTC KV-062 Top Works for 3" NTC KV-062 Top Works for 4" NTC KV-062

Certification

Certified ATEX Certificate DNV Certificate TA-Luft Certificate FDA Certificate Firesafe Certificate

NTC KV-062

S/S 2-Pce Full Bore Flanged ANSI 300 Ball Valve NTC KV-062

PDF

S/Steel 2-Pce Full Bore Flanged ANSI 300 Ball Valve NTC KV-062

For full details of our NTC High Performance Range, technical data, product images and more, visit http://ntcvalves.co.uk
