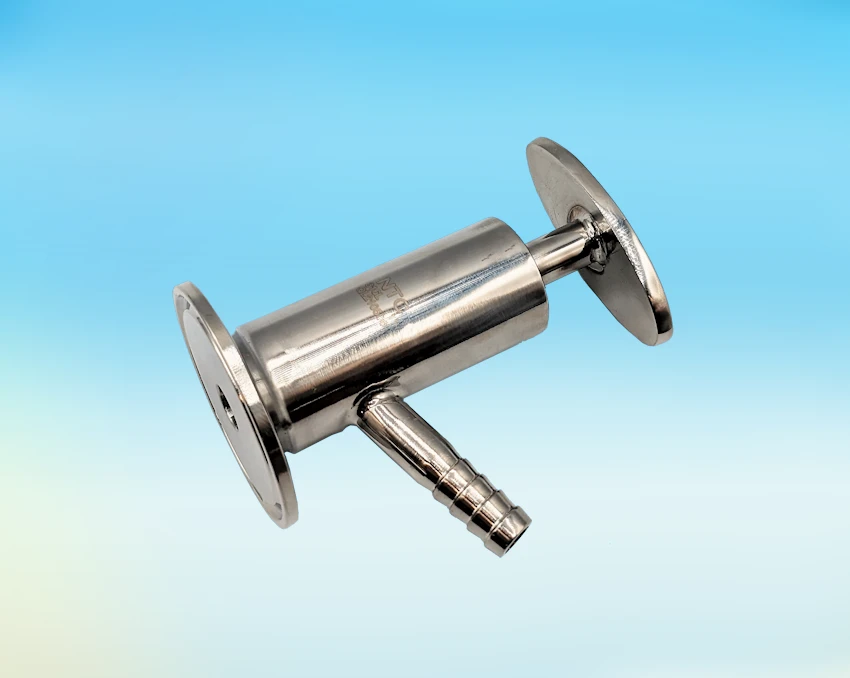

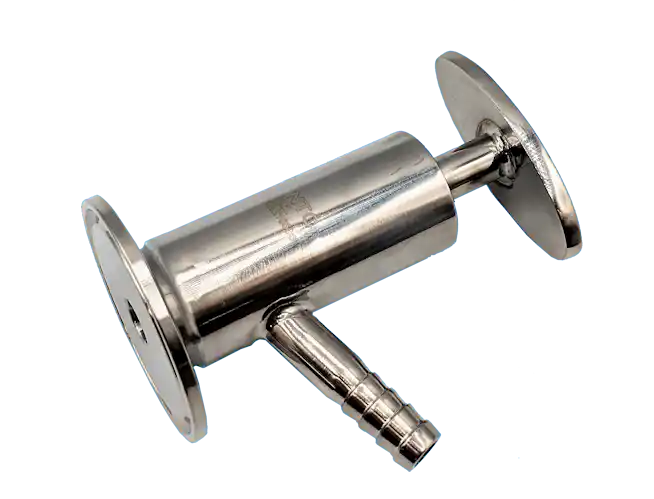

Mirror Polished ASTM A351 CF3M 316L Stainless Steel Construction.
FKM (Viton Tm) Stem O'Rings.
PTFE Seats and NBR 'O'Ring.
1”/1.1/2" Clamp Ferrule Inlet Connection with 10mm O/D Barbed Spout.
Stainless Steel Elliptical Operating Knob.
10 Bar/g maximum operating pressure.
150 Deg C maximum operating temperature.
A cost effective, simple solution for Process Sampling where Hygiene or Aseptic properties are non essential.
For full details of our NTC High Performance Range, technical data, product images and more, visit http://ntcvalves.co.uk
