check valves

Screwed “Barrel" Spring Check Valve with FKM Seat

Screwed “Barrel Type” Spring Check Valve.
ASTM A351 CF8M 316 Stainless Steel construction.
316 Stainless Steel Spring.

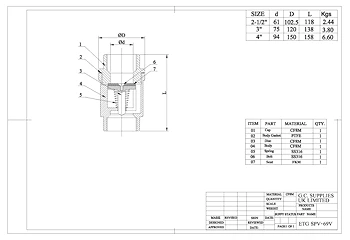

2-Pce screw together body construction.
PTFE Body Seal, FKM (Viton) Seat.
69 bar (1000 psi) pressure rated.
-25 / +260 deg C Temp rated.
BSP Screwed end connections to ISO 7/1 Rp.
CE marked in accordance with PED 2014/68/EU.

The 2-pce body construction allows the valve to be maintained.

We are able to offer full material certification to EN 10204 3.1.

Available size range: 2.1/2” - 4”

Additional Information:

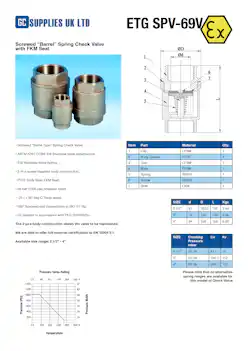

For full details of our NTC High Performance Range, technical data, product images and more, visit http://ntcvalves.co.uk
