ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
PTFE Seats and Seals. Adjustable gland. Slide type Locking Lever.
1000 psi/g Pressure rated.
-20 / + 180 Deg C Temperature rated.
Pressure balance hole in Ball Slot.
BSP Screwed end connections.
CE marked (sizes 1.1/4” upward) in accordance with the PED 2014/68/EU.

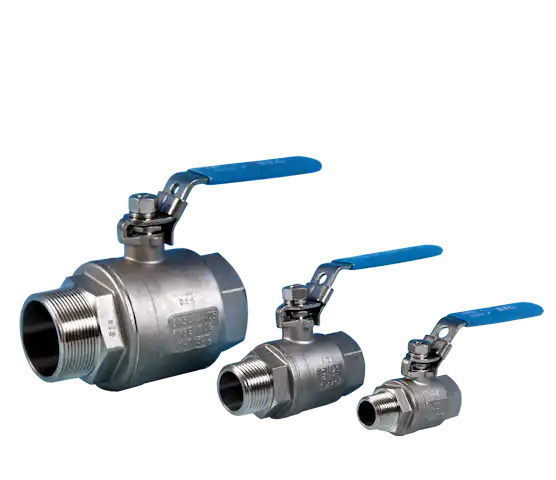

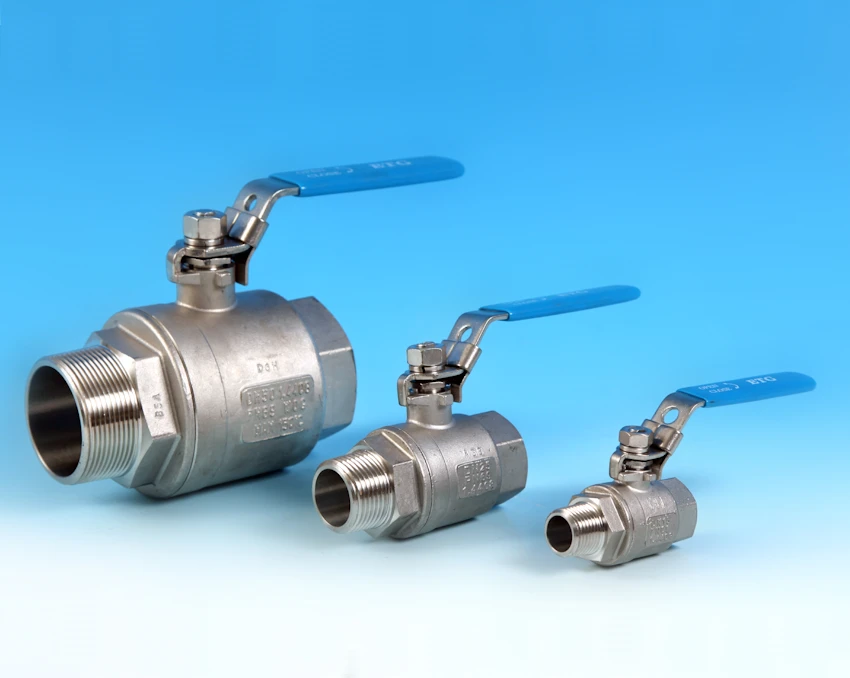

A good quality, general purpose ball valve suitable for most Liquid and Gaseous duties. Ball can be drilled for upstream vent applications such as bleach and peroxide duties.
Full material Test Certificates available
Test standard – API 598
BSP Ends - ISO 7-1 (Female) BS21 Taper (Male)
Available size range: 1/4” - 2”
For full details of our NTC High Performance Range, technical data, product images and more, visit http://ntcvalves.co.uk
