600mm Diameter Low/Non-Pressure Round Manway, for Stainless Steel Tanks Model TV/600 316L
600mm Diameter Low/Non-Pressure Round Manway, for Stainless Steel Tanks TV/600 316L
Logo

Model TV/600/B 316L

manways

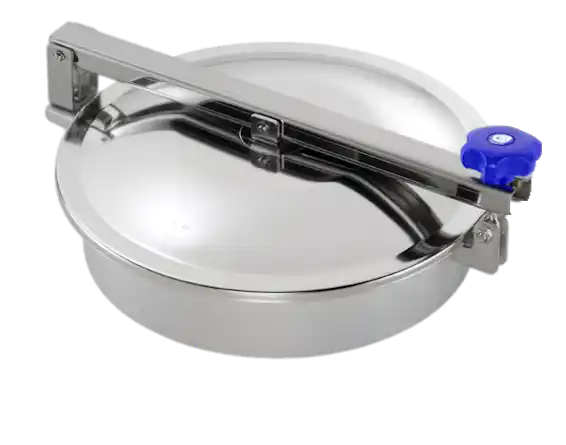

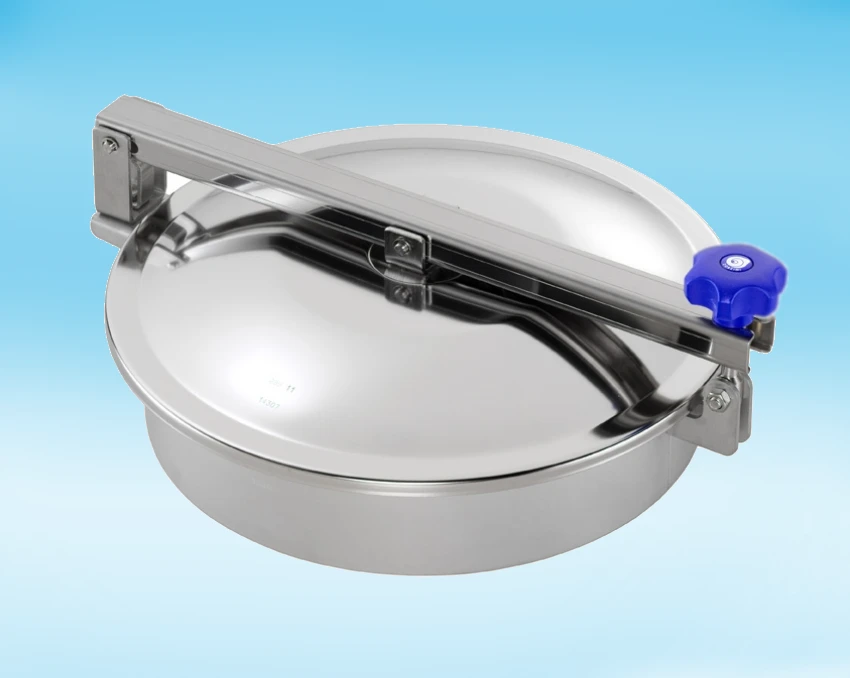

600mm Diameter Low/Non-Pressure Round Manway TV/600/B

316L Stainless Steel construction. EPDM Seal. 100mm high neck.
Back-side and side-swing opening.
Gasket on the frame not glued.
Standard with EPDM Gasket G/T600 and Blue Nylon Handwheel MEC/80/A.
0.0 bar/g Max Pressure

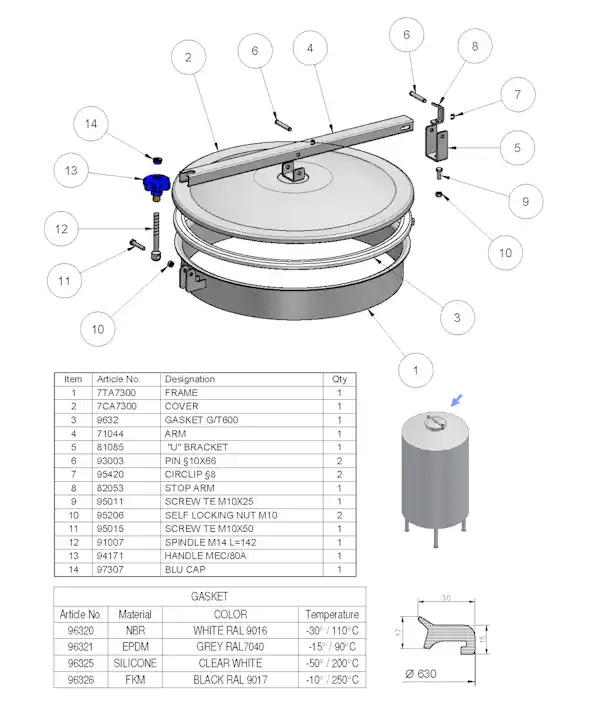

Exploded View

600mm Low/Non-Pressure Round Manway Stainless Steel TV/600 316L
