check valves

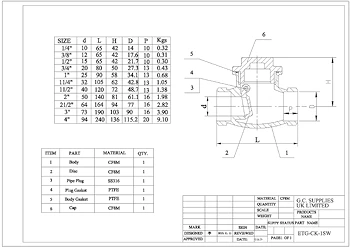

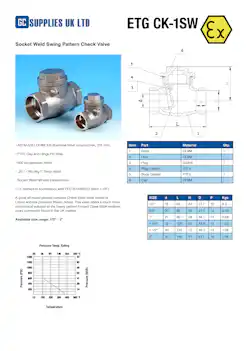

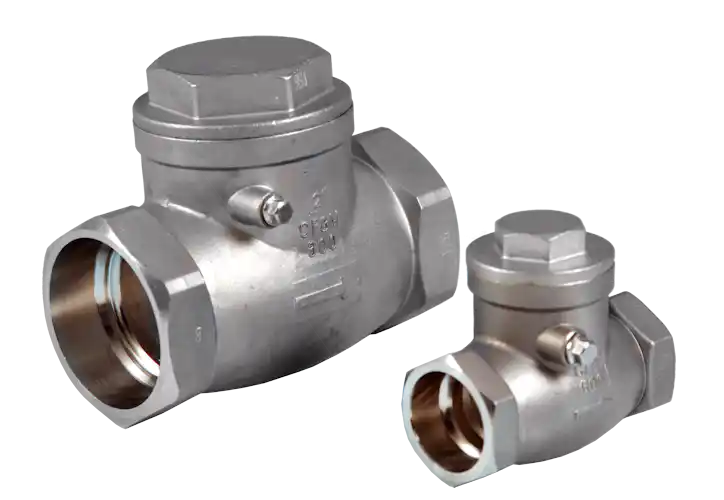

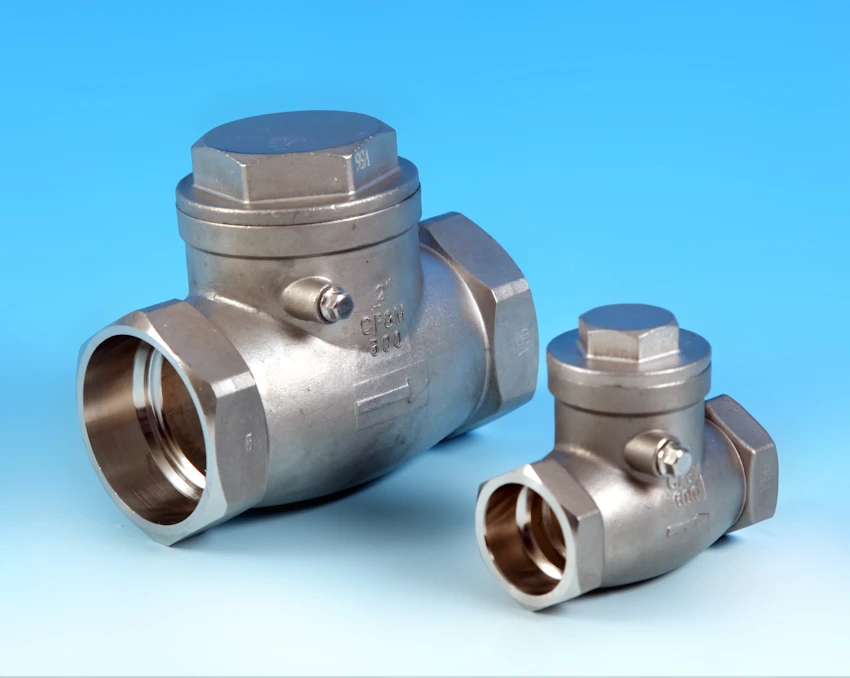

Socket Weld Swing Pattern Check Valve

ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
PTFE Cap and Hinge Pin Seal.
600 psi pressure rated.
-20 / +180 deg C Temp rated.
Socket Weld NB end connections.
CE marked in accordance with PED 2014/68/EU (from 1.1/4”).

A good all round general purpose Check Valve most suited to
Liquid and low pressure Steam duties.
This valve offers a much more economical solution to the heavy pattern Forged Class 800# versions more commonly found in the UK market

Available size range: 1/2” - 2”

Additional Information:

For full details of our NTC High Performance Range, technical data, product images and more, visit http://ntcvalves.co.uk
