F316L Stainless Steel body construction, F316L Stainless Steel
Disc and Stem. FDA Food Grade EPDM Seal fitted as standard (FKM available).
Stainless Steel Multi Position Lever (12 positions) with Locking facility.
145 psi (10 bar/g) pressure rated.
-10 to +120 deg C max Temp.
RJT Male x Male Ends to BS4825 (Male x Female available to order).
CE marked in accordance with 2014/68/EU.
3.1 Material Certificates available upon request

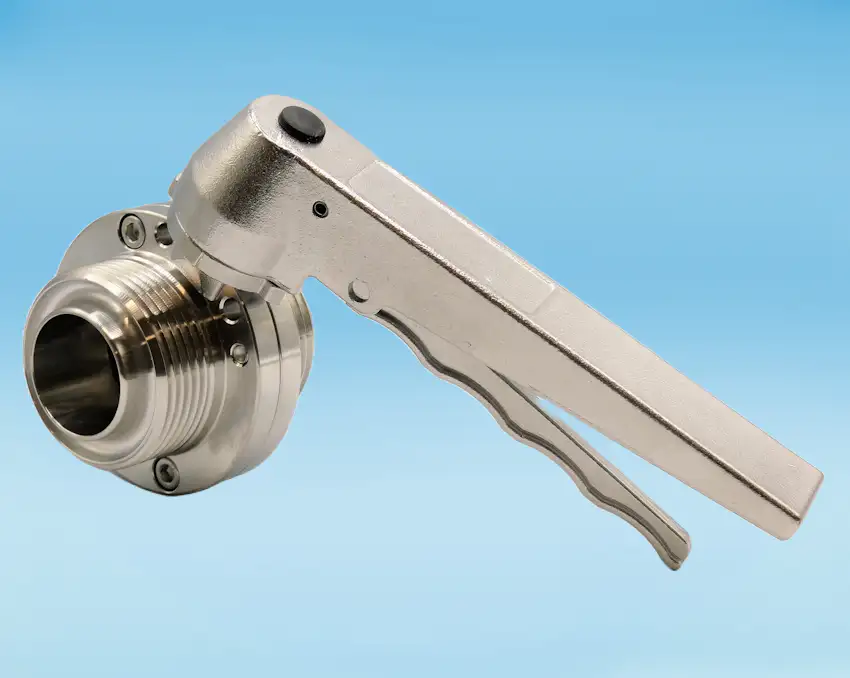

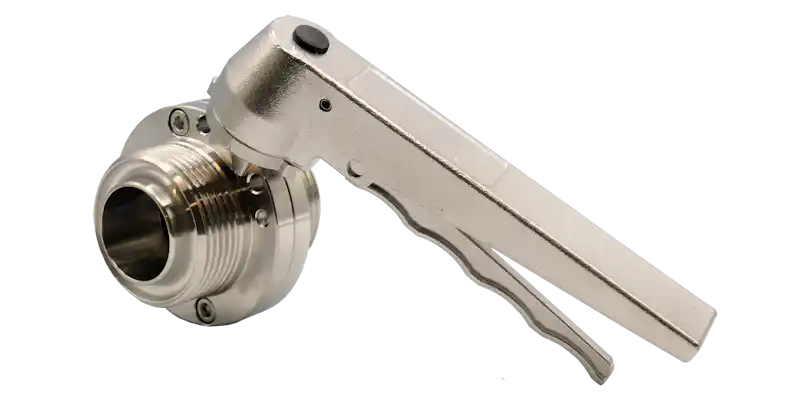

A good all round, robust general purpose Hygienic Butterfly Valve.
Compact and robust design. Can be fitted with our Stainless Steel Hygienic Cylinder style Actuators or our Electric or Pneumatic Rack and Pinion style Actuators, Positioners, Switch Boxes and Solenoids by using the custom "TSM" style Actuator Mounting Kit.
EPDM Valve Seat conforms to FDA 177.2600 standards.
0.8 Ra Polish on valve Disc and internal.
Available size range: 1” - 4”
We offer this valve with a "TSM style Actuator Mounting Kit".
The "TSM" Mounting Kit allows virtually any type or make of Electric or Pneumatic Actuator to be mounted to our valve.
We offer "spare seals" in EPDM and FKM (Viton ®).
The valve can be supplied with a "Hygienic Style" Stainless Steel Single Acting (Air/Spring) Actuator. (Plain Weld Ends shown for illustration purpose only).

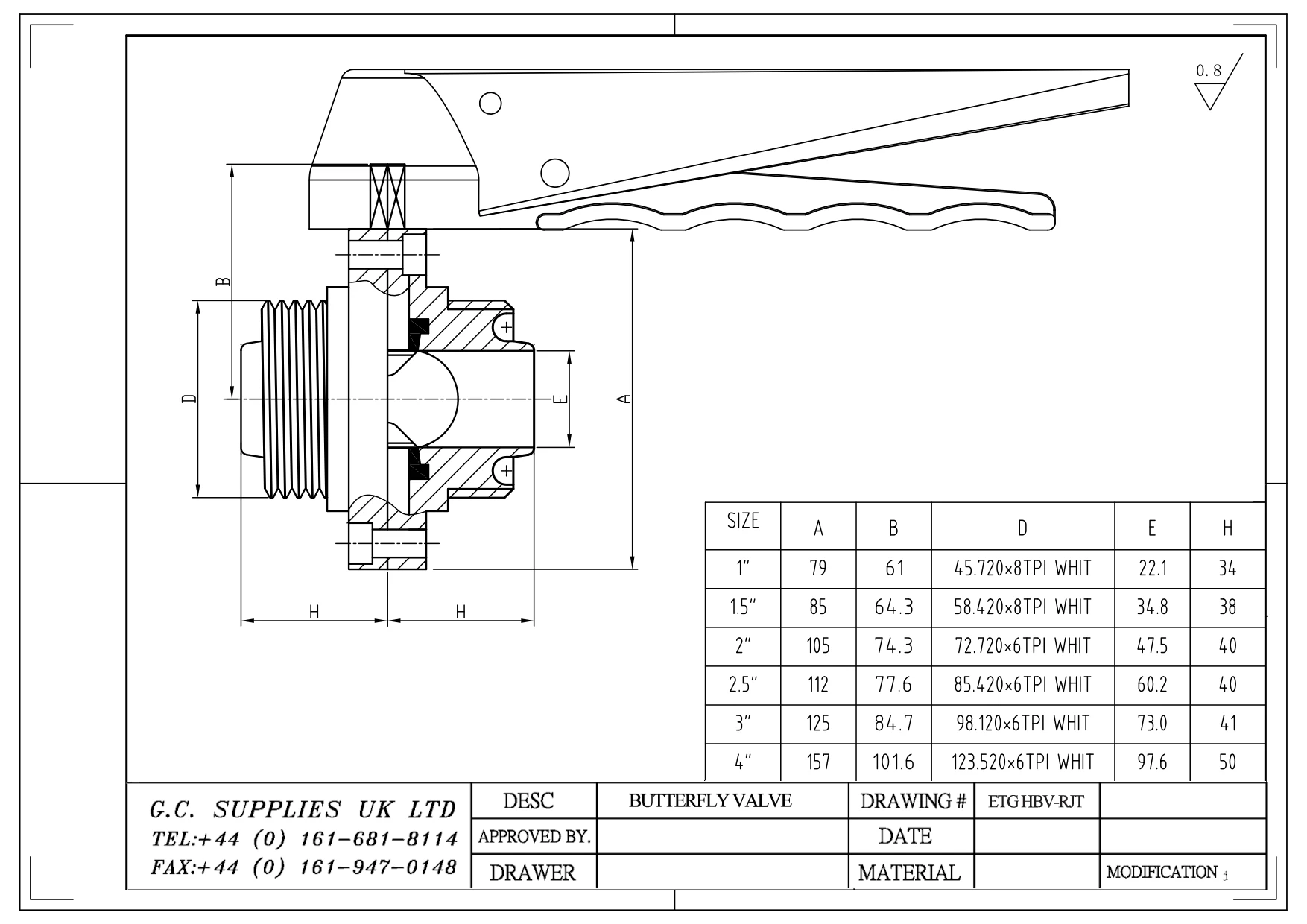

| Size | 1" | 1.1/2" | 2" | 2.1/2" | 3" | 4" |
|---|---|---|---|---|---|---|
| Torque* | 5.0 Nm | 6.1 Nm | 7.2 Nm | 9.2 Nm | 16 Nm | 31 Nm |
| ISO 5211 | F04/F05 | F04/F05 | F04/F05 | F04/F05 | F04/F05 | N/A |
| Stem Sq | 11mm | 11mm | 11mm | 11mm | 11mm | N/A |
| Weight | 1.2 Kg | 1.5 Kg | 1.8 Kg | 2.3 Kg | 2.8 Kg | 4.2 Kg |
