3-Pce Screwed Full Bore Ball Valve lever operated ETG M-3
S/Steel 3-Pce Screwed Full Bore Ball Valve lever operated ETG M-3
Logo

ETG M-3

ball valves

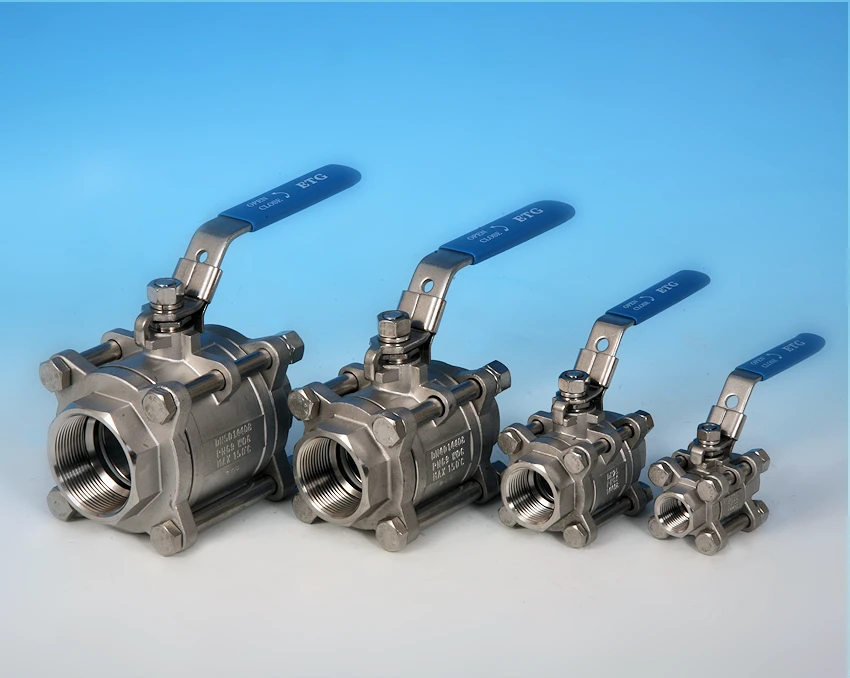

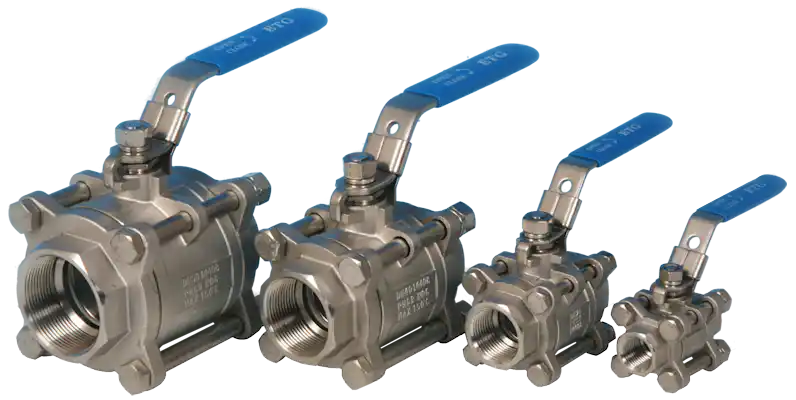

3-Pce Screwed Full Bore Ball Valve lever operated

ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
PTFE Seats and Seals. Adjustable gland. Slide type Locking Lever.
1000 psi/g Pressure rated (1/4" - 2") 600 psi/g Pressure rated (2.5" - 4").
-20 / + 180 Deg C Temperature rated.
BSP and NPT End Connections. Pressure balance hole in Ball Slot.
CE marked (sizes 1.1/4” upward) in accordance with the PED 2014/68/EU

A good quality, general purpose ball valve suitable for most Liquid and Gaseous duties. Ball can be drilled for upstream vent applications such as bleach and peroxide duties.

15% Glass R-PTFE Seal Kits available for elevated temperature duties.

EN10204 3.1 material Test Certificates available

Test standard – API 598

BSP Ends - ISO 7-1

NPT Ends - ASME B1.20.1

Available size range: 1/4” - 4”

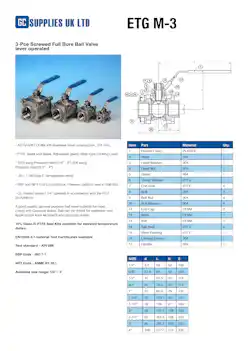

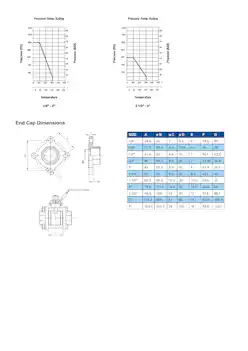

Datasheet

Datasheet For S/S 3-Pce Screwed Full Bore Ball Valve lever operated Datasheet For 3-Pce Screwed Full Bore Ball Valve lever operated
