Model 285/B 316L

manways

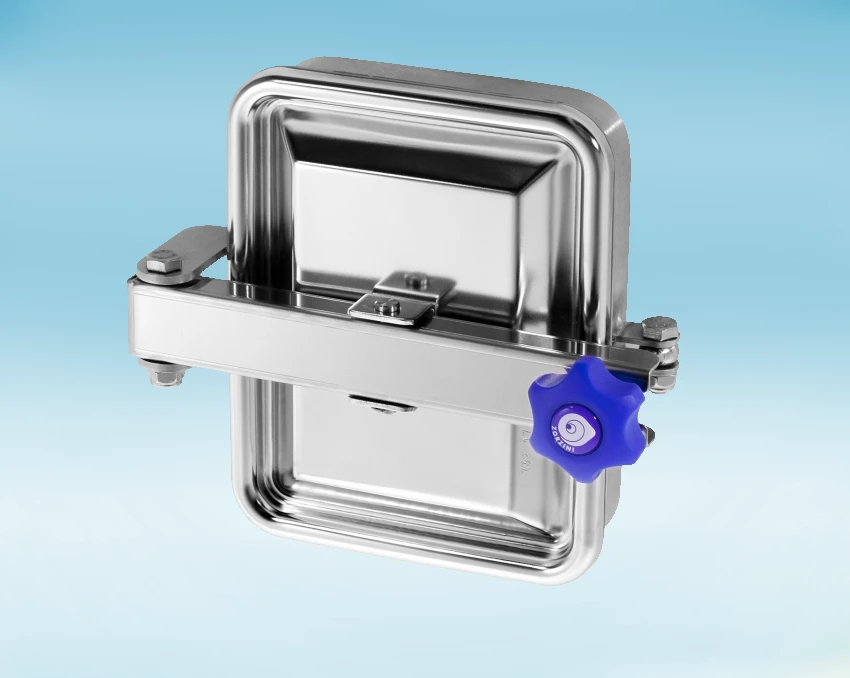

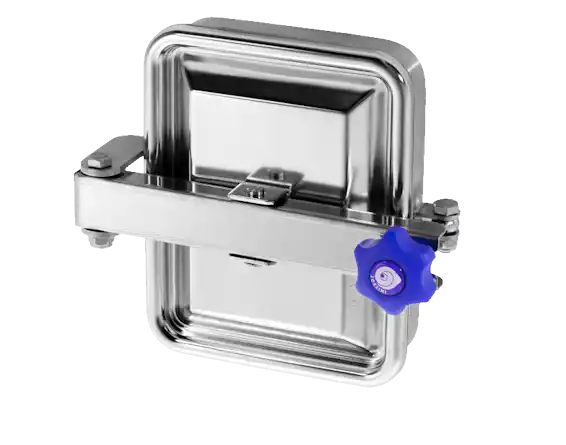

185 × 235mm Rectangular Pressure Manway

316L Stainless Steel construction. EPDM Seal. 40mm high neck.
Opening outwards.
Gasket on cover not glued.
Standard with EPDM Gasket G/295 and Nylon Handwheel MEC/60/A.
0.5 bar/g Max Pressure

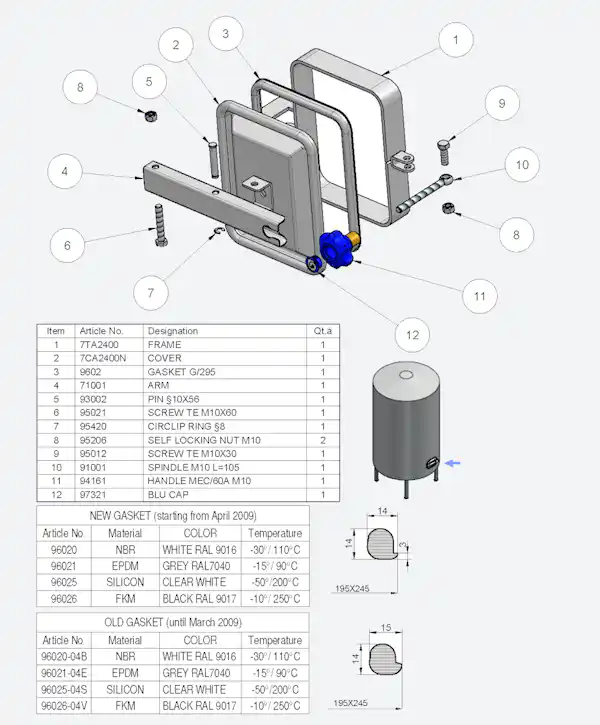

Exploded View

Stainless Steel 185 × 235mm Rectangular Pressure Manway 285/B 316L
