440 x 320mm Oval Pressure Manway, for Stainless Steel Tanks 182 304L
440 x 320mm Oval Pressure Manway, for S/S Tanks 182 304L
Logo

Model 182 304L

manways

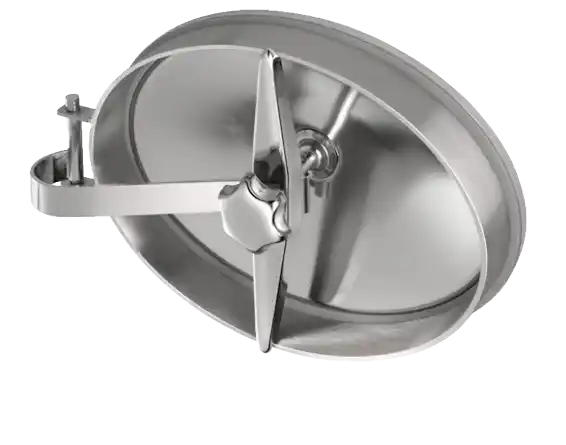

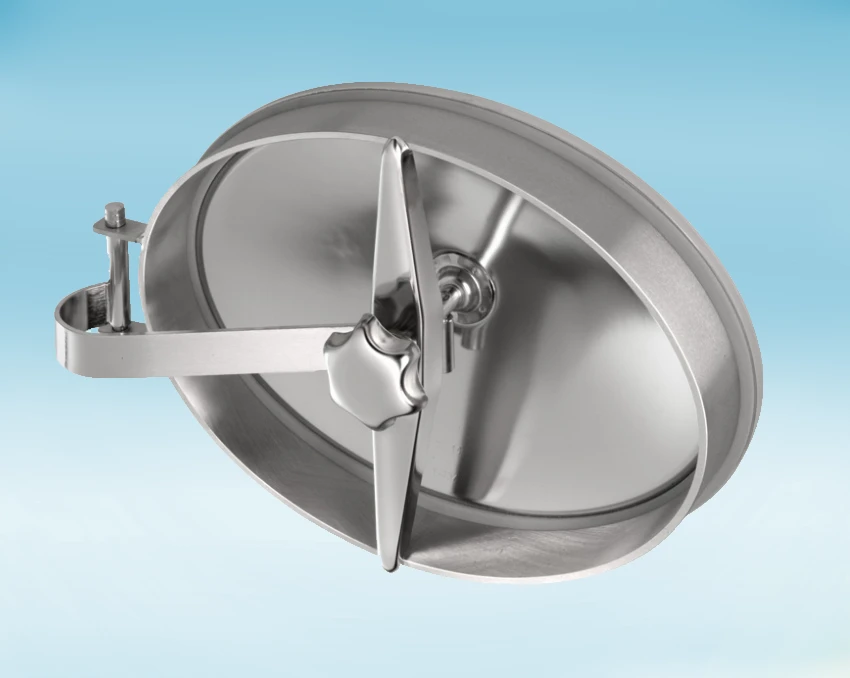

440 x 320mm Oval Pressure Manway

304L Stainless Steel construction. EPDM Seal. 80mm high neck.
Opening inwards.
Gasket on cover not glued.
Standard with EPDM Gasket G/170 and S.S. Handwheel MEC/80.
1.3 bar/g Max Pressure
PED Certified

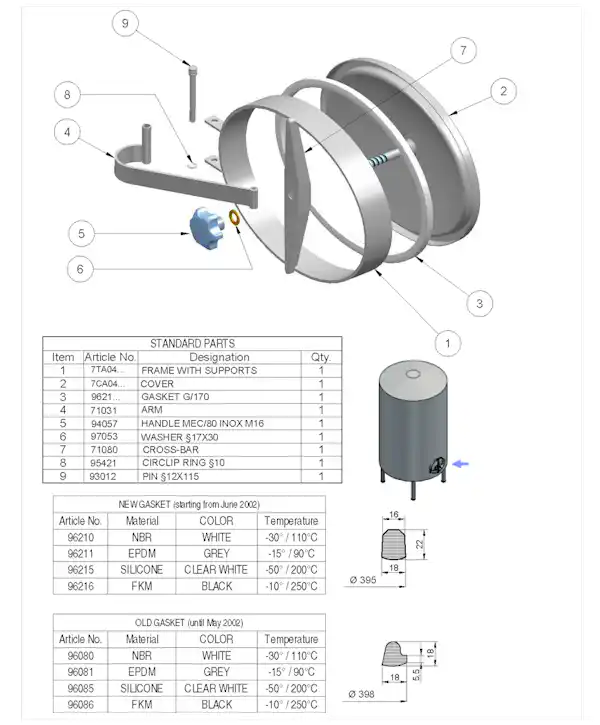

Exploded View

S/S 440 x 320mm Oval Pressure Manway 182 304L
