450mm Diameter Low/Non-Pressure Round Manway, for Stainless Steel Tanks Model TV/450 304L
450mm Diameter Low/Non-Pressure Round Manway, for Stainless Steel Tanks TV/450 304L
Logo

Model TV/450 304L

manways

450mm Diameter Low/Non-Pressure Round Manway

304L Stainless Steel construction. EPDM Seal. 100mm high neck.
Back-side and side-swing opening.
Gasket on the frame not glued.
Standard with EPDM Gasket G/T450 and Blue Nylon Handwheel MEC/80/A.
0.0 bar/g Max Pressure

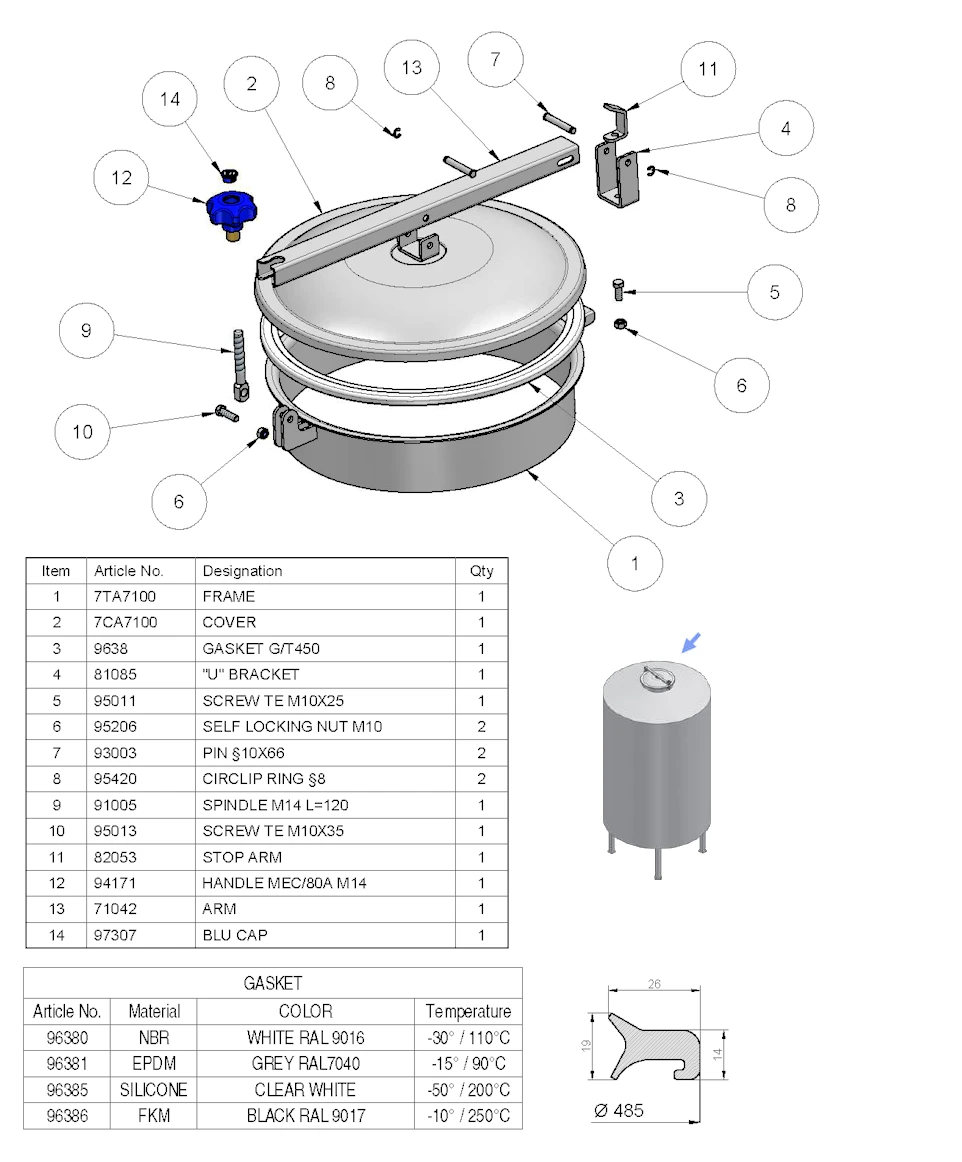

Exploded View

450mm Low/Non-Pressure Round Manway Stainless Steel TV/450 304L
