440 × 332mm Rectangular Pressure Manway, for Stainless Steel Tanks 165 304L
440 × 332mm Rectangular Pressure Manway, for S/S  Tanks 165 304L
Logo

Model 165 304L

manways

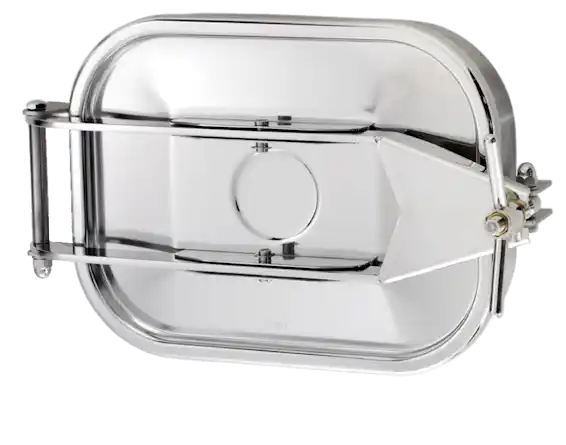

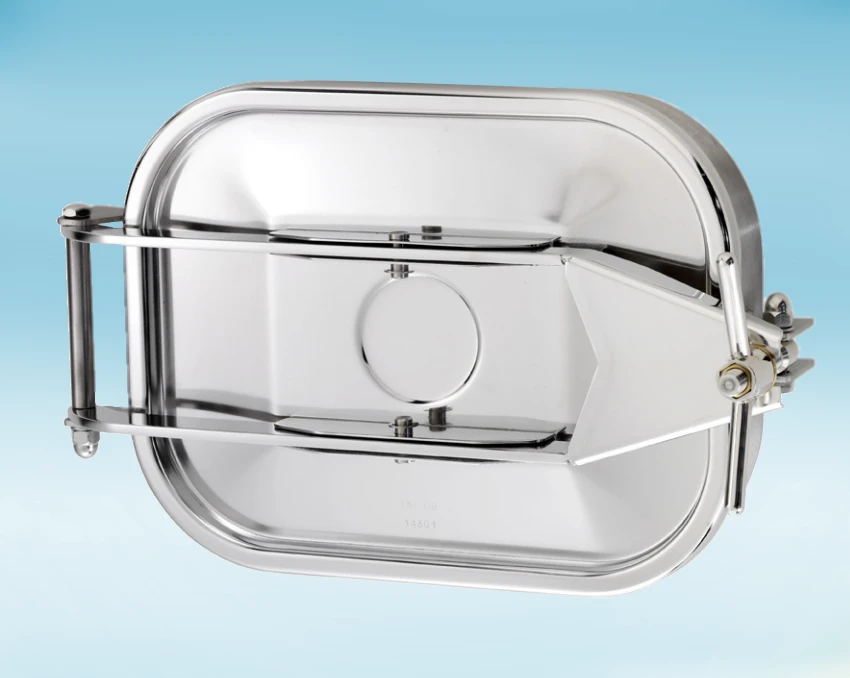

440 × 332mm Rectangular Pressure Manway

304L Stainless Steel construction. EPDM Seal. 60mm high neck.
Opening outwards.
Gasket on cover not glued.
Standard with EPDM Gasket G/R165 and S.S. Handle V/I/165/A.
0.5 bar/g Max Pressure

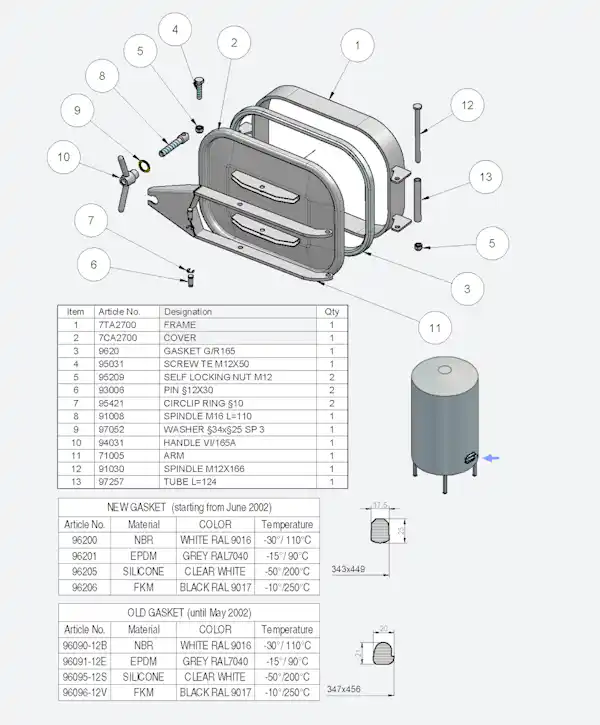

Exploded View

Stainless Steel 440 × 332mm Rectangular Pressure Manway 165 304L
