Screwed “Barrel Type” Spring Check Valve ETG-SPV69-S
S/Steel Screwed “Barrel Type” Spring Check Valve ETG-SPV69-S


check valves

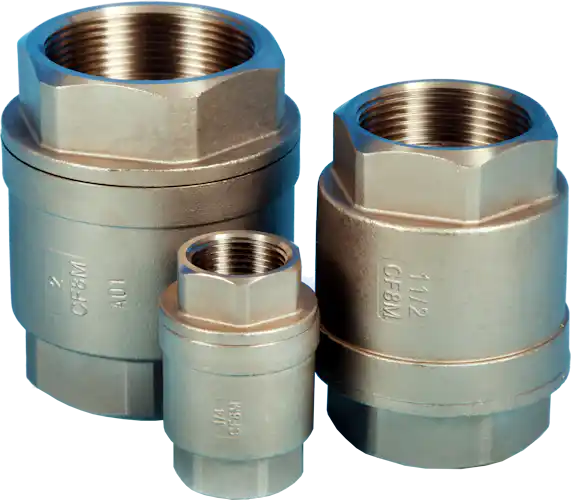

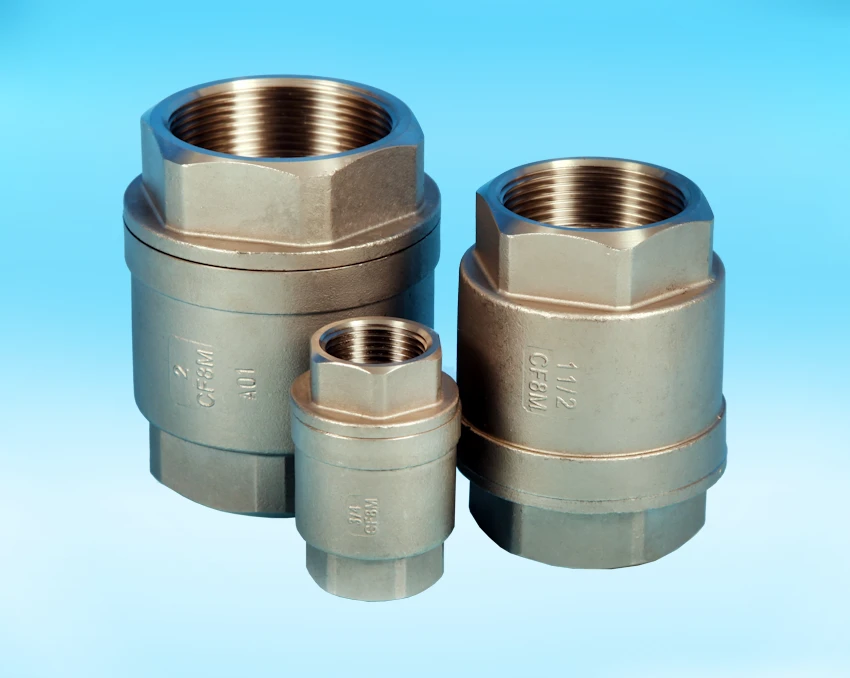

Screwed “Barrel Type" Spring Check Valve

Screwed “Barrel Type” Spring Check Valve.
ASTM A351 CF8M 316 Stainless Steel construction
316 Stainless Steel Spring
2-Pce screw together body construction.
PPL Body Seal, Metal Seat.
69 bar (1000 psi) pressure rated.
-25 / +260 deg C Temp rated.
BSP Screwed end connections.
CE marked in accordance with PED 2014/68/EU (from 1.1/4”)

The valve offers substantial advantages over other spring check valves available in the market place, especially where elevated temperatures are involved such as steam and thermal fluid applications.

The 2-pce body construction allows the valve to be maintained.

We are able to offer full material certification to EN 10204 3.1.

Available size range: 1/2” - 2”

Additional Information:

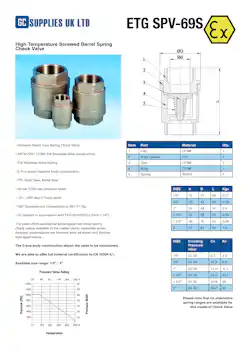

For full details of our NTC High Performance Range, technical data, product images and more, visit
