Stainless Steel BSP to O/D Weld, BSP to RJT Male and BSP to Clamp Ferrule Adaptors

ASTM A479 316L Stainless Steel Bar Construction
BSPT Thread form available from stock
Threads in accordance with BS21 (ISO 7/1 or EN 10226 R).

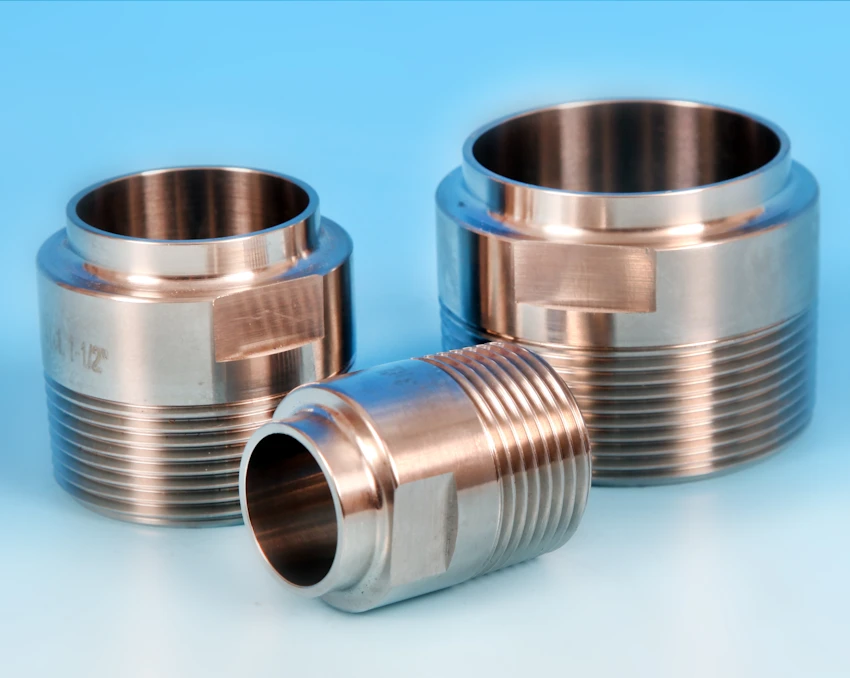

BSPT Male x O/D Butt-Weld Adaptors

CNC Precision machined from solid bar, not manufactured from castings.
Two Spanner Flats are machined onto the fittings to aid installation.
1.6mm wall thickness to suit 16swg Hygienic Tube on weld ends.
0.8 Ra Internal finish.

Available size range: 1" - 2" (other sizes available upon request).

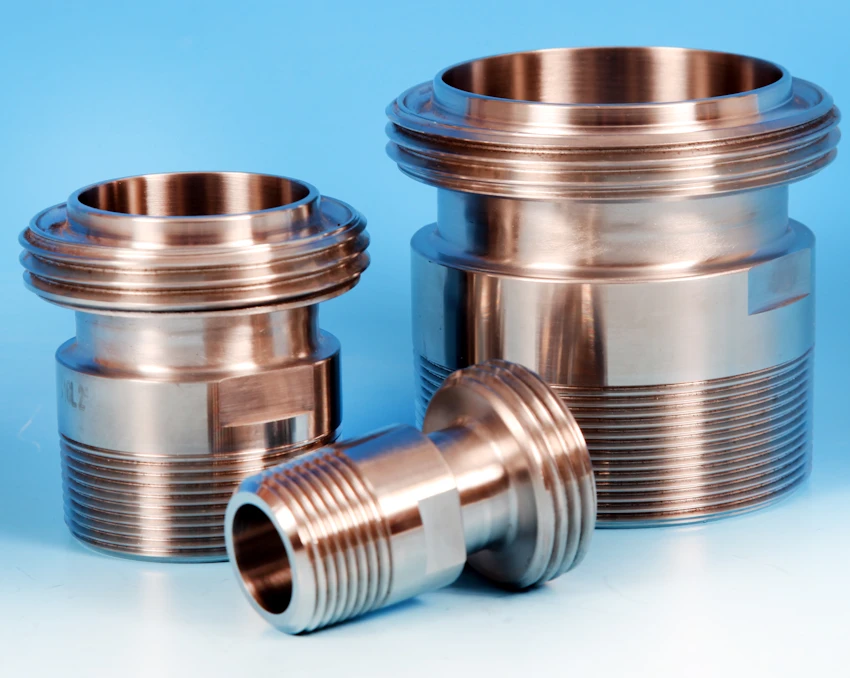

BSPT Male x RJT Male Adaptors

CNC Precision machined from solid bar with RJT Male End Connections.
Two Spanner Flats are machined onto the fittings to aid installation.
0.8 Ra Internal finish.

Available size range: 1" - 2" (other sizes available upon request)

We are also able to offer BSPT/BSPP Male and Female Adaptors to Clamp, IDF, SMS and DIN standards on short lead times. Please enquire for further details.

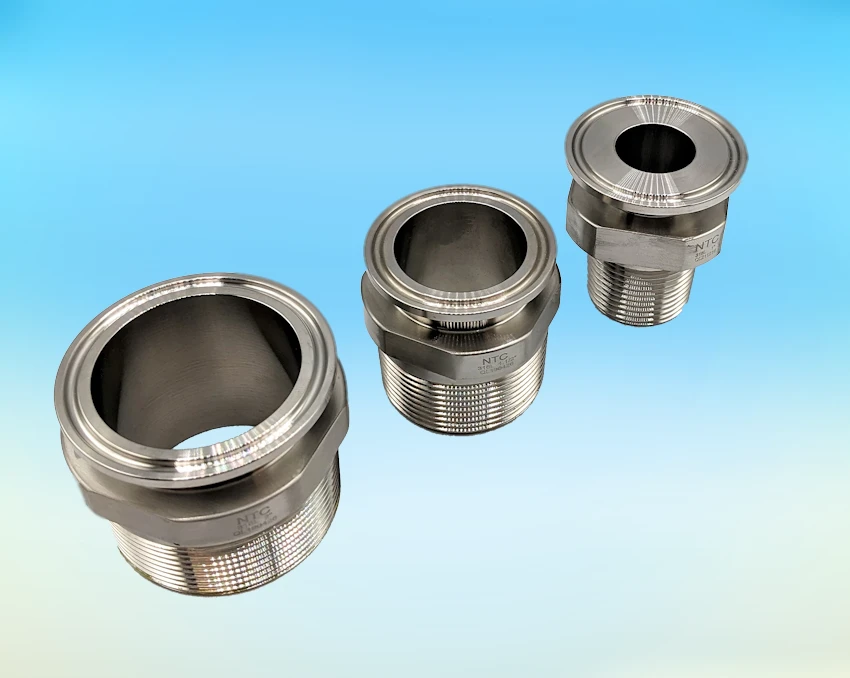

BSPT Male x Clamp Ferrule Adaptors

CNC Precision machined from solid bar with Clamp Ferrule Connections.
Four Spanner Flats are machined onto the fittings to aid installation.
0.8 Ra Internal finish.

Available size range: 1/2" - 2"

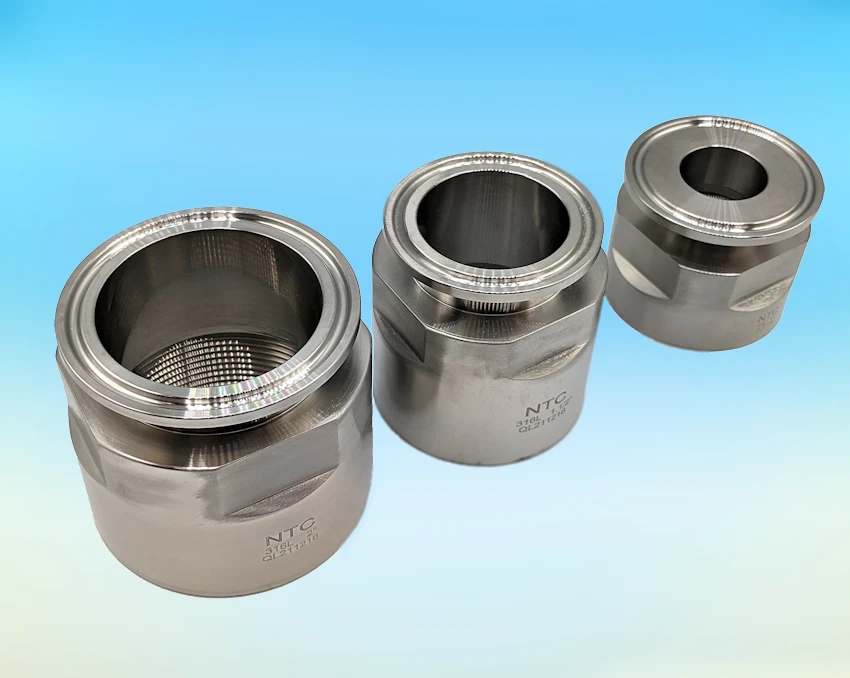

BSPT Female x Clamp Ferrule Adaptors

CNC Precision machined from solid bar with Clamp Ferrule Connections.
Four Spanner Flats are machined onto the fittings to aid installation.
0.8 Ra Internal finish.

Available size range: 1" - 2"

We are also able to offer BSPT Male and Female Adaptors to IDF, SMS and DIN standards on short lead times. Please enquire for further details.
