Model Z/175/B 316L

manways

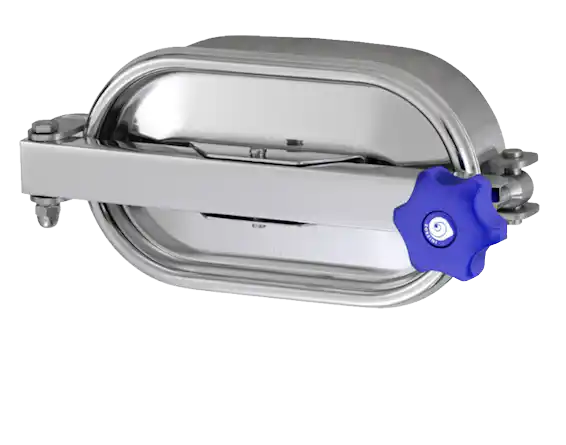

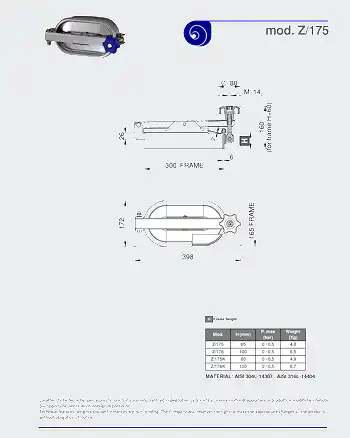

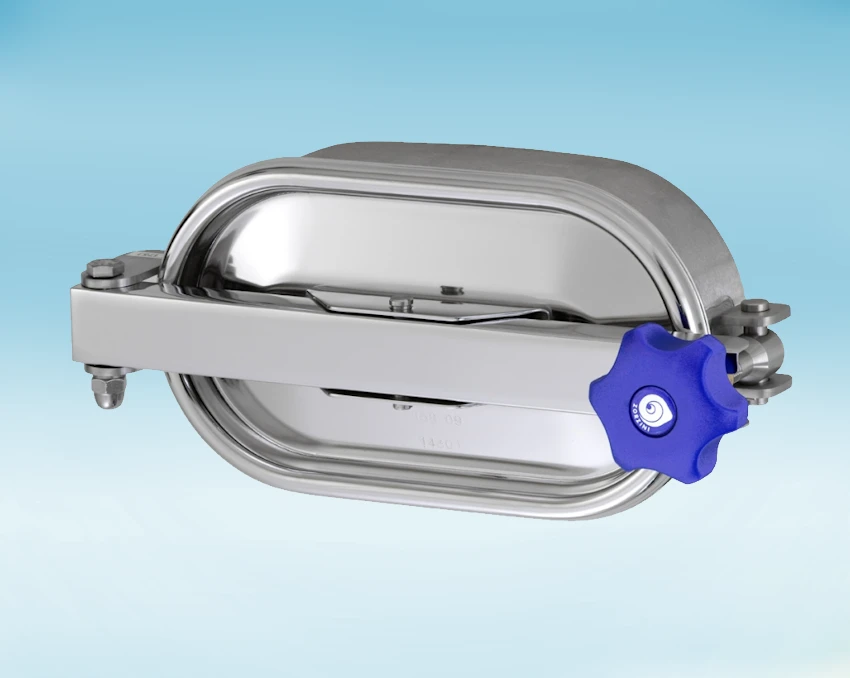

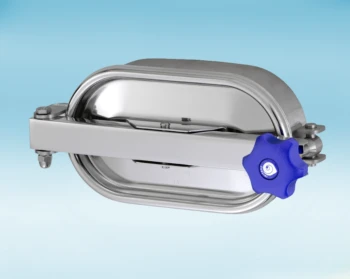

300 × 165mm Rectangular Pressure Manway

316L Stainless Steel construction. EPDM Seal. 65mm high neck.
Opening outwards.
Gasket on cover not glued.
Standard with EPDM Gasket G/Z175 and Nylon Handwheel MEC/80/A.
0.5 bar/g Max Pressure

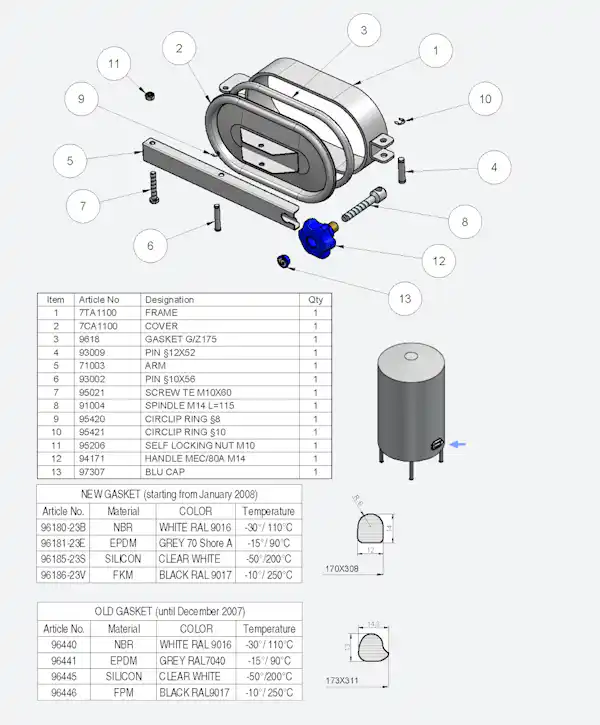

Exploded View

Stainless Steel 300 × 165mm Rectangular Pressure Manway Z/175/B 316L
