What we offer in our


High Performance Valve Range

SORT BY:

All

Screwed

Flanged

Butt Weld

Socket Weld

Clamp Ends

Reduced Bore

Full Bore

3-way

Wafer Pattern


Application:

Sanitary/Hygienic

Highly Corrosive/Aggressive

Steam/High Temp

Flammable

Hazardous Environment

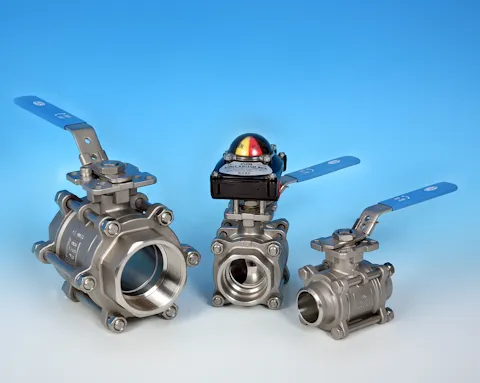

stainless steel 3 Piece Full Bore Direct Mount Ball Valve

NTC KV-L30/31/32

3 Piece Full Bore Direct Mount Ball Valve
316 Stainless Steel Body and Trim.
BSP Ends, Socket-Weld Ends & Butt-Weld Ends1-Pce Reduced Bore Ball Valve Lever Operated Valve
316 Stainless Steel construction 316 Trim.
BSP Screwed End Connections

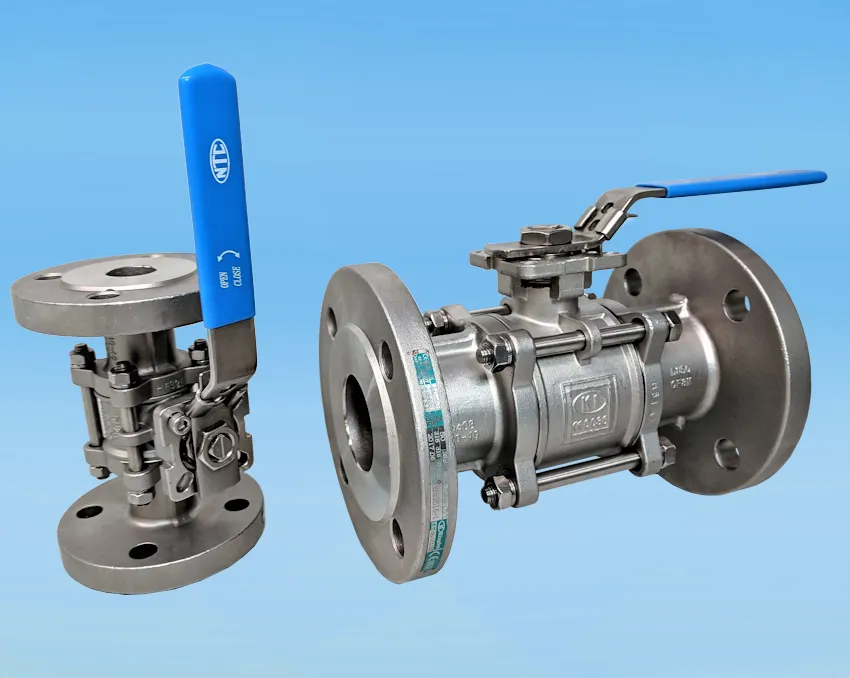

s/steel 3 Piece Full Bore Direct Mount Ball Valve

NTC KV-L3F

3-Pce Full Bore Flanged DIN PN16/40 Direct Mount Ball Valve
316 Stainless Steel Construction 316 Trim.
Flanged PN40 & PN16
stainless steel 3-Pce Full Bore Heavy Duty Stainless Steel Direct Mount Ball Valve

NTC KV-L80FS/81FS/82FS

3-Pce Full Bore Heavy Duty Direct Mount Ball Valve
316 Construction 316 Trim.
BSP Ends, Socket-Weld Ends & Butt-Weld Ends

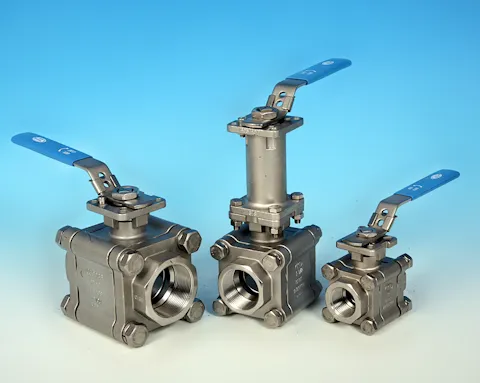

stainless steel 3-Pce Full Bore Heavy Duty Stainless Steel Direct Mount Ball Valve with PEEK® Seats

NTC KV-L80HT/FS

3-Pce Full Bore Heavy Duty Direct Mount Ball Valve with PEEK® Seats
High Temperature Version
316 Construction 316 Trim.
BSP Ends

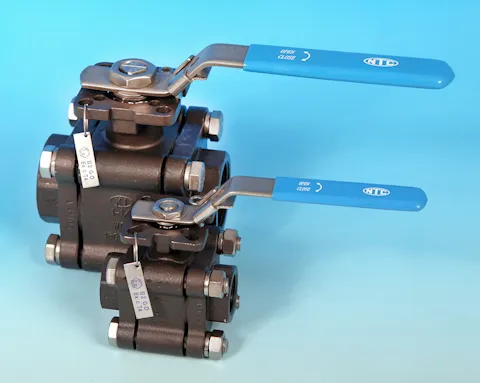

3-Pce Full Bore Heavy Duty Carbon Steel Direct Mount Ball Valve

NTC KV-L80FC/L82FC

3-Pce Full Bore Heavy Duty Carbon Steel Direct Mount Ball Valve
Carbon Steel Construction, 304 S/S Trim.
BSP Ends - Socket-Weld Ends

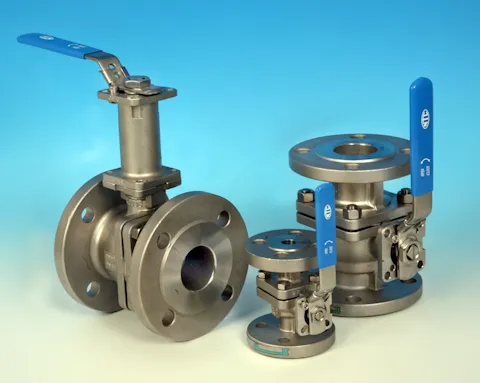

stainless steel 2-Pce Full Bore Flanged ANSI 150 Direct Mount Ball Valve

NTC KV-L61

2-Pce Full Bore Flanged ANSI 150 Direct Mount Ball Valve
316 Construction 316 Trim.
Flanged ANSI 150
carbon steel 2-Pce Full Bore Flanged ANSI 150 Direct Mount Ball Valve NTC KV-L61-C

NTC KV-L61-C

2-Pce Full Bore Flanged ANSI 150 Direct Mount Ball Valve
Carbon Steel Construction 304 Trim.
Flanged ANSI 150

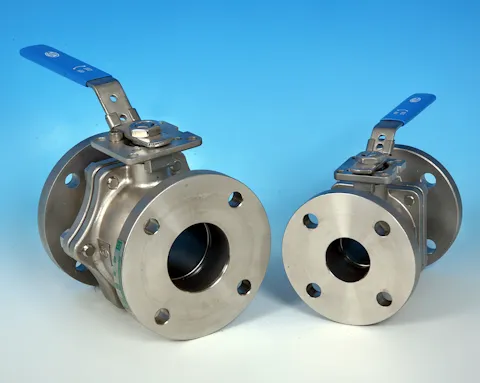

stainless steel 2-Pce Full Bore Flanged BS10 Table E Direct Mount Ball Valve

NTC KV-L61/E

2-Pce Full Bore Flanged BS10 Table E Direct Mount Ball Valve
316 Construction 316 Trim.
Flanged BS10 Table E
S/S 2-Pce Full Bore Flanged ANSI 150 Direct Mount Ball Valve

NTC KV-L61HT

2-Pce Full Bore High Temperature Ball Valve
Flanged ANSI 150
316 Construction 316 Trim.

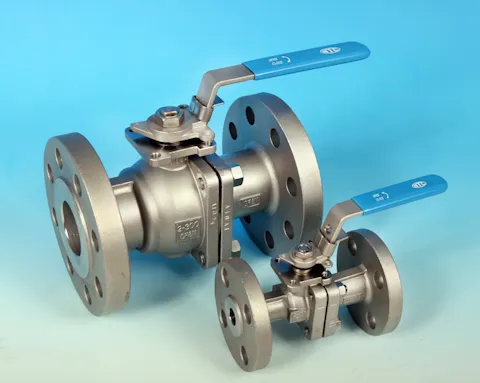

stainless steel 2-Pce Full Bore Flanged ANSI 300 Ball Valve

NTC KV-062

2-Pce Full Bore Flanged ANSI 300 Ball Valve
316 Construction 316 Trim.
Flanged ANSI 300

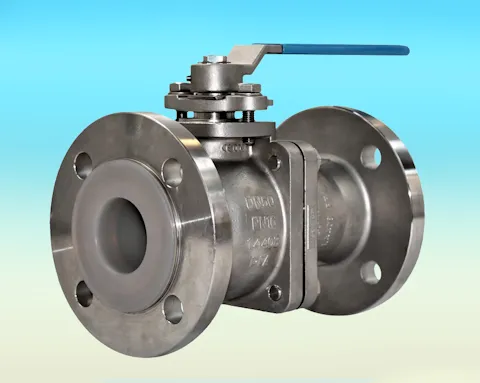

stainless steel PFA Lined 2-Pce Full Bore Flanged ANSI 150 Ball Valve

NTC KV-N441

PFA Lined 2-Pce Full Bore Flanged ANSI 150 Ball Valve
316 Construction 316 Trim.
Flanged ANSI 150
stainless steel PFA Lined 2-Pce Full Bore Flanged PN16 Ball Valve

NTC KV-N44K

PFA Lined 2-Pce Full Bore Flanged PN16 Ball Valve
316 Construction 316 Trim.
Flanged PN16

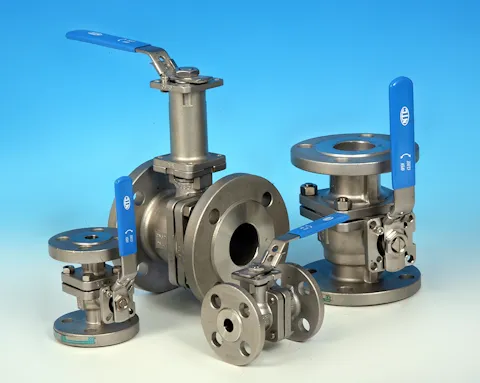

stainless steel 2-Pce Full Bore Flanged DIN PN40 Direct Mount Ball Valve

NTC KV-L6N PN40 Flanged

2-Pce Full Bore Flanged DIN PN40 Direct Mount Ball Valve
316 Construction 316 Trim.
Flanged DIN PN40
stainless steel 2-Pce Full Bore Flanged DIN PN16 Direct Mount Ball Valve

NTC KV-L6K PN16 Flanged

2-Pce Full Bore Flanged DIN PN16 Direct Mount Ball Valve
316 Construction 316 Trim.
Flanged DIN PN16

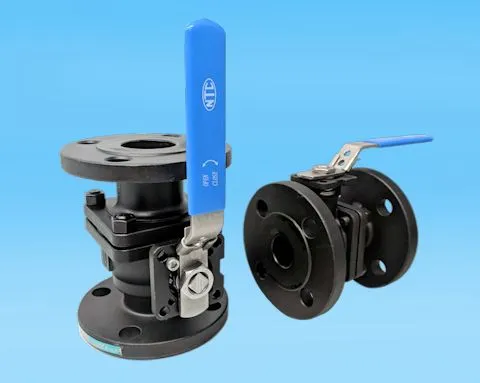

carbon steel 2-Pce Full Bore Flanged DIN PN40 Direct Mount Ball Valve

NTC KV-L6N/K-C PN16/40 Flanged

2-Pce Full Bore Flanged DIN PN16/40 Direct Mount Ball Valve
Carbon Steel Construction 304 Trim.

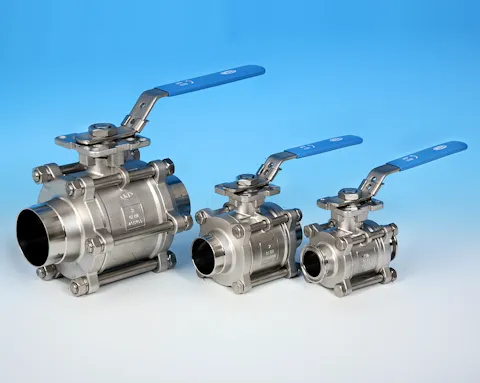

stainless steel 3-Pce Full Bore Hygienic/Sanitary Cavity Filled Direct Mount Ball Valve with Weld Ends

NTC KV-L91/B BS4825 Weld Ends

3-Pce Full Bore Hygienic/Sanitary Cavity Filled Direct Mount Ball Valve with Weld Ends
316 Construction 316 Trim.
stainless steel 3-Pce Full Bore Hygienic/Sanitary Cavity Filled Direct Mount Ball Valve with Clamp Ferrule Ends

NTC KV-L9C/B BS4825 Clamp Ends

3-Pce Full Bore Hygienic/Sanitary Cavity Filled Direct Mount Ball Valve with Clamp Ferrule Ends
316 onstruction 316 Trim.
Clamp Ends

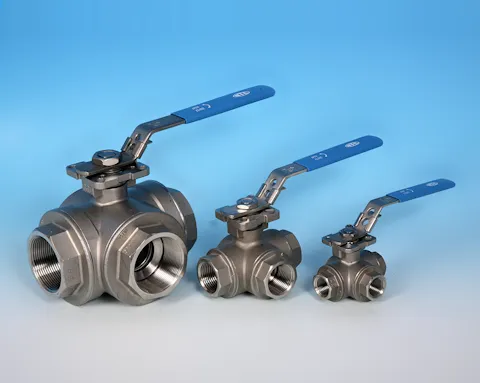

stainless steel 3-Way BSP Screwed Direct Mount Ball Valve

NTC KV-L50 (L-Port)
NTC KV-L51 (T-Port)

3-Way BSP Screwed Direct Mount Ball Valve
316 Construction 316 Trim.
BSP Ends

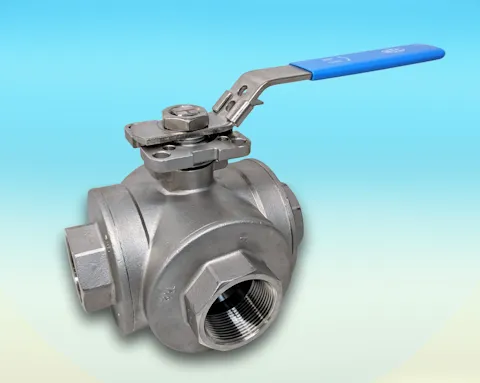

stainless steel 3-Way Full Bore BSP Screwed Direct Mount Ball Valve

NTC KV-L53 (L-Port)
NTC KV-L54 (T-Port)

3-Way Full Bore BSP Screwed Direct Mount Ball Valve
316 Construction 316 Trim.
BSP Ends

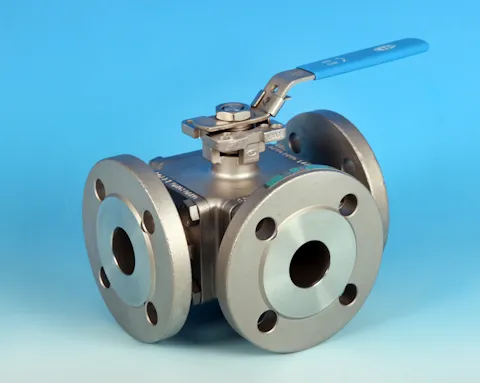

stainless steel 3-Way Direct Mount Flanged PN16/40 Ball Valve

NTC KV-L5K/5N

3-Way Direct Mount Flanged PN16/40 Ball Valve
316 Construction 316 Trim.
Flanged DIN PN16 DIN PN40
stainless steel 3-Way Direct Mount Flanged ANSI 150 Ball Valve

NTC KV-L5U

3-Way Direct Mount Flanged ANSI 150 Ball Valve
316 Construction 316 Trim.
Flanged ANSI 150

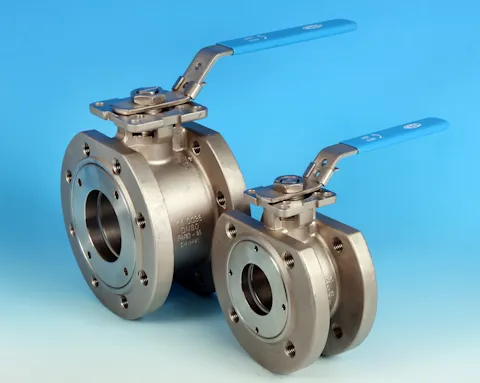

stainless steel Wafer Pattern Flanged DIN PN16/40 Ball Valve

NTC KV-L7K/7N

Wafer Pattern Flanged DIN PN16/40 Ball Valve
316 Construction 316 Trim.
Flanged DIN PN16 DIN PN40

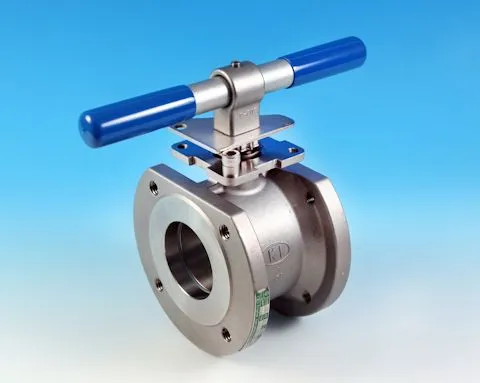

stainless Wafer Pattern Flanged ANSI 150 Ball Valve

NTC KV-071

Wafer Pattern Flanged ANSI 150 Ball Valve
316 Construction 316 Trim.
Flanged ANSI 150

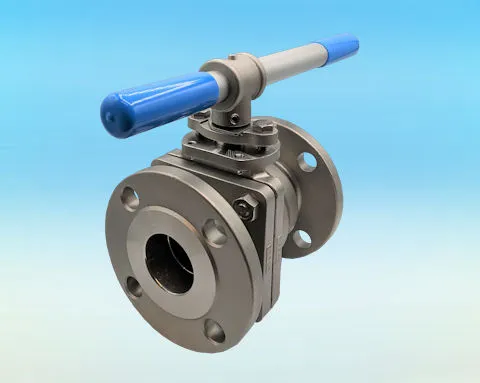

stainless steel Wafer Pattern Flanged ANSI 150 Ball Valve

NTC KV-M61

Metal Seated 2-Pce Flanged ANSI 150 Ball Valve
316 Construction
F316 + Ni60 Ball and Seats.
Flanged ANSI 150

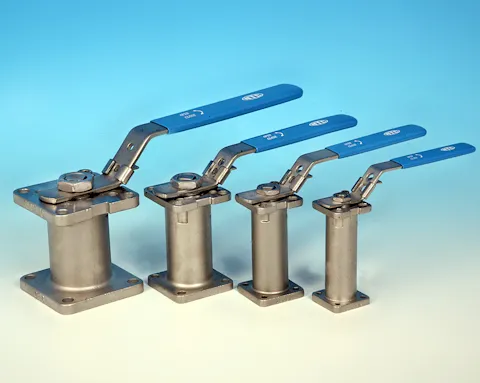

stainless steel 100mm High Valve Spindle Extension Bonnet

NTC EXT-100

100mm High Valve Spindle Extension Bonnet
304 Construction.
Available in six size ranges

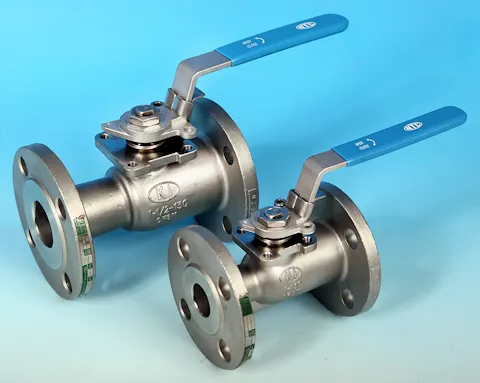

stainless steel 1-Pce Reduced Bore Flanged ANSI 150 Ball Valve

NTC KV-M1FF

1-Pce Reduced Bore Flanged ANSI 150 Ball Valve
316 Construction 316 Trim.
Flanged ANSI 150

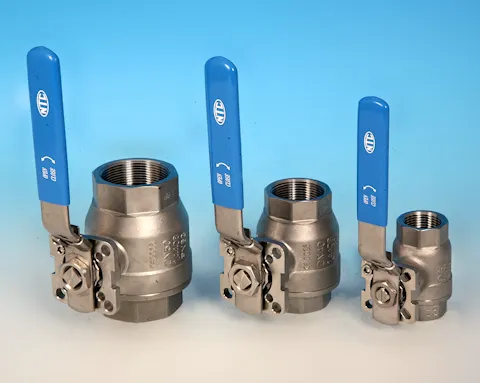

stainless steel 2-Pce Full Bore Direct Mount Ball Valve

NTC KV-L20

2-Pce Full Bore Direct Mount Ball Valve
316 Construction 316 Trim.
BSP Ends

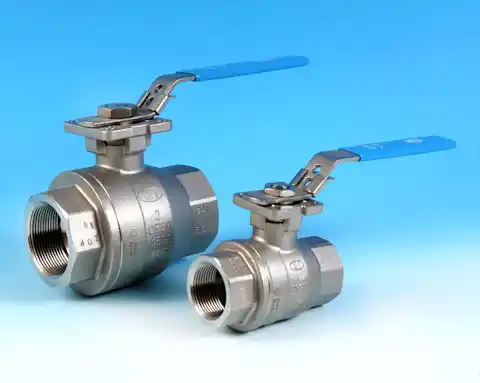

stainless steel 2-Pce Full Bore Fire Safe Heavy Duty Direct Mount Ball Valve

NTC KV-L20H

2-Pce Full Bore Fire Safe Heavy Duty Direct Mount Ball Valve
316 Construction 316 Trim.
BSP Ends

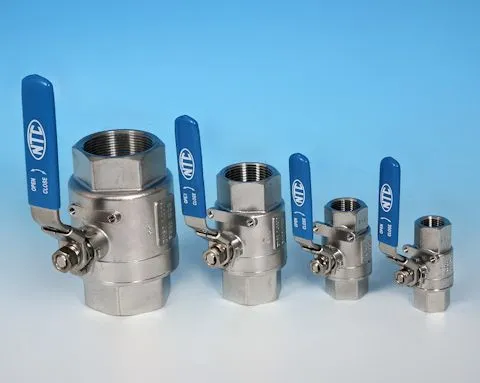

stainless steel 2-Pce Full Bore Direct Mount Ball Valve

NTC 2006-M3

2-Pce Full Bore Direct Mount Ball Valve
316 Construction 316 Trim.
BSP Ends

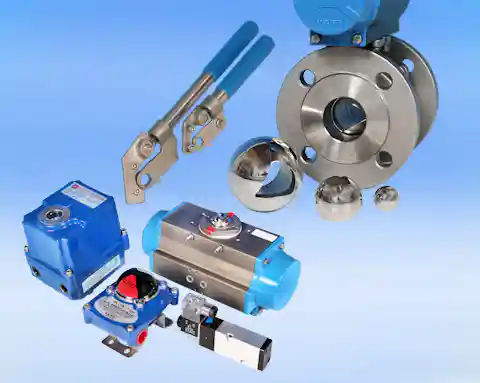

stainless steel HP Spares and Accessories

Spares and Accessories

Manual Spring Lever
60 and 30 Degree V-Balls for Modulation Duties
Pneumatic and Electric Actuators, Switch Boxes and Solenoids

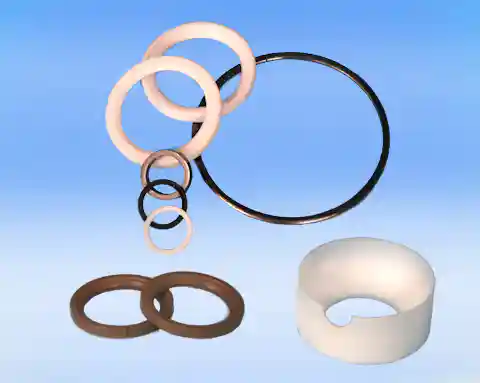

S/S HP Spares and Accessories

Spares and Accessories

Cavity Filled TFM Ball Seats
50% Stainless Filled, 25% Carbon Filled and UHMWPE Ball Seats
Complete Valve Service Kits
torque figures

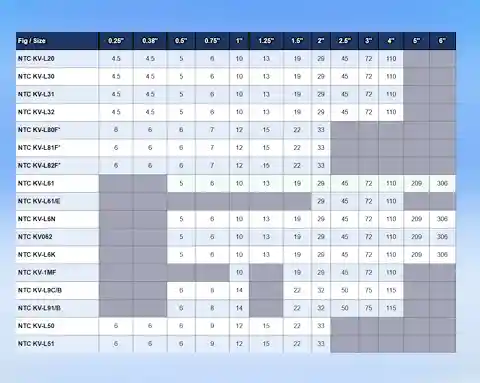

Typical Valve Break Torque Figures
