300mm Diameter Low/Non-Pressure Round Manway, for Stainless Steel Tanks N/240/B 316L
300mm Diameter Low/Non-Pressure Round Manway, for Stainless Steel Tanks Model N/240/B 316L
Logo

Model 240/B 316L

manways

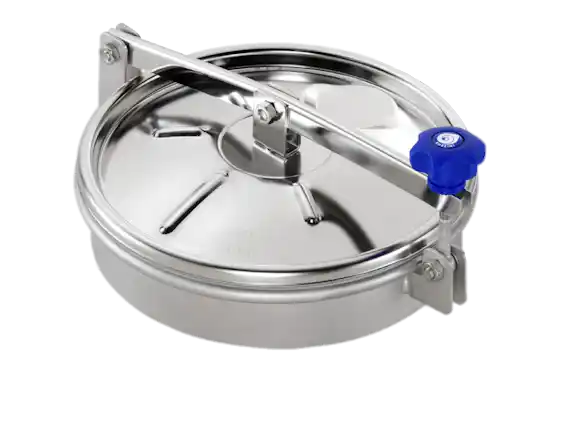

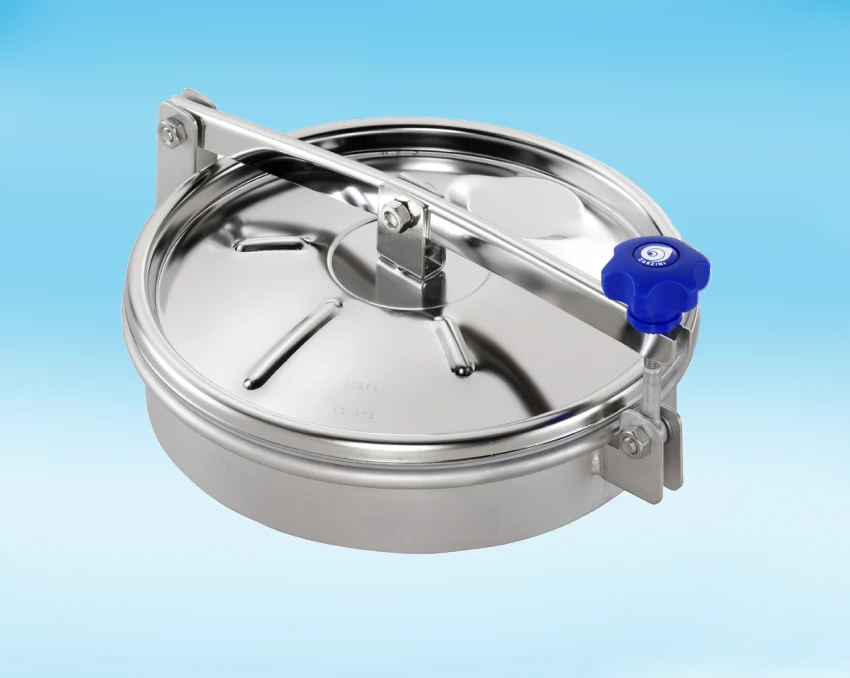

300mm Diameter Low/Non-Pressure Round Manway

316L Stainless Steel construction. EPDM Seal. 65mm high neck.
Back-side and side-swing.
Gasket on cover not glued.
Standard with EPDM Gasket G/TR300 and Nylon Handwheel MEC/60.
0.1 bar/g Max Pressure

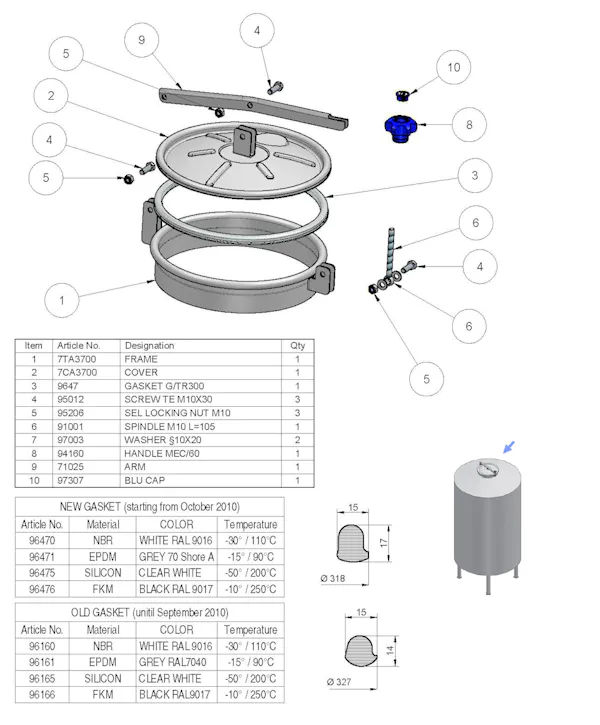

Exploded View

Stainless Steel 300mm Diameter Low/Non-Pressure Round Manway 240/B 316L
