miscellaneous valves

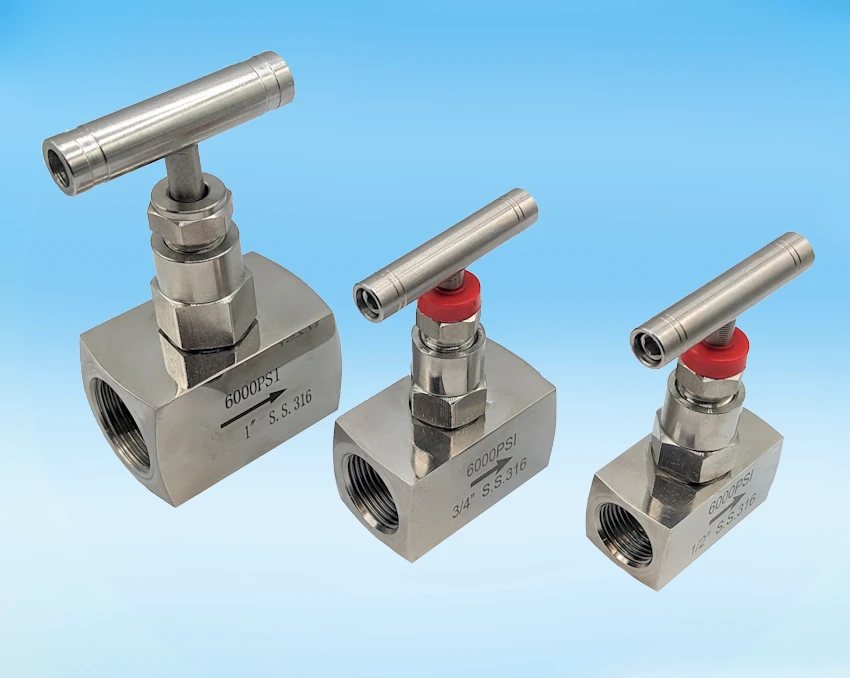

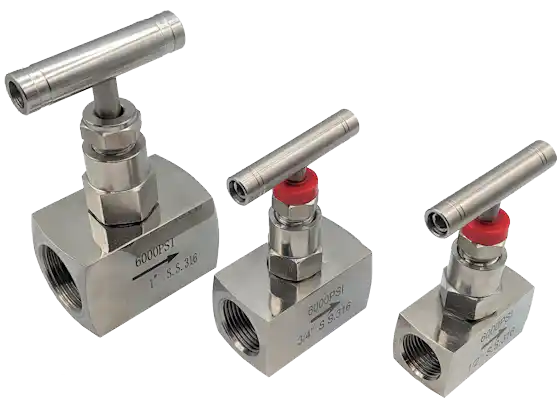

6000lb Stainless Steel Screwed Needle Valve

316L Stainless Steel bar stock body construction.
316 Bonnet & Stem and 304 T-Bar.
PTFE Packing. Metal to Metal Tapered Tip Seal.
-25 / +180 Deg C maximum temperature rated.
6000 PSI / 414 Bar/g maximum pressure rated.
Available Screwed Female BSPP to IS0228-1 and NPT to ASME B1.20.1

3.1 Material Certificates available.
Test standard – API 598

Available size range: 1/4” - 1” (larger sizes available on factory lead time)

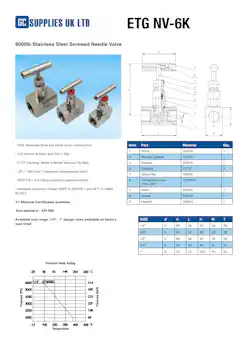

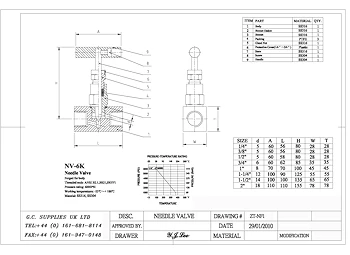

Datasheet For 6000lb Stainless Steel Screwed Needle Valve

For full details of our NTC High Performance Range, technical data, product images and more, visit http://ntcvalves.co.uk
