What we offer in our


Manway Range

SORT BY:

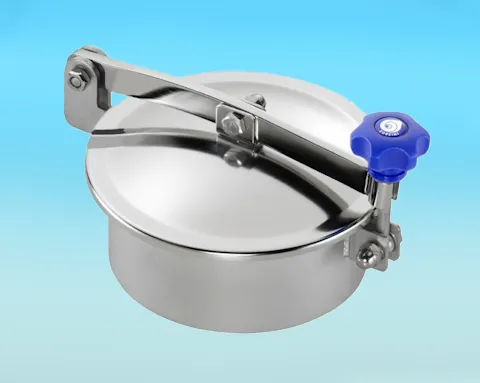

N/230/B Stainless Steel 200mm Low/Non-Pressure Round Manway

Model N/230/B 316L

200mm Diameter Low/Non-Pressure Round Manway, for Stainless Steel Tanks
Standard with EPDM Gasket G/T200 and Nylon Handwheel MEC/60.
Gasket on frame not glued. On request: S.S. Handle VI/295; S.S. Handwheel MEC/80. AISI 316L-14404

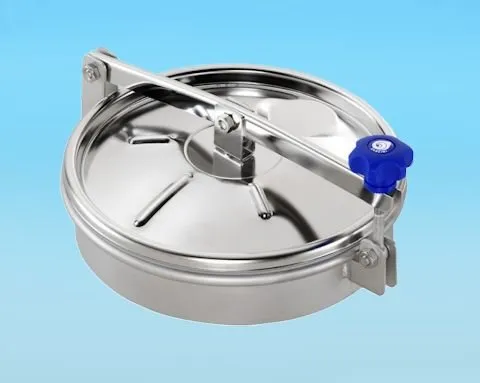

240/B Stainless Steel 300mm Low/Non-Pressure Round Manway

Model 240/B 316L

300mm Diameter Low/Non-Pressure Round Manway, for Stainless Steel Tanks
Standard with EPDM Gasket G/TR300 and Nylon Handwheel MEC/60.
Gasket on cover not glued. Available also with side-swing and back-side opening. On request with hole for relief valve. On request: S.S. Handle VI/295; S.S. Handwheel MEC/80. AISI 316L-14404

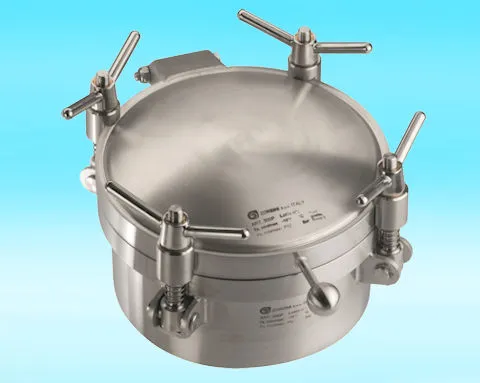

300P Stainless Steel 500mm Round Pressure Manway 316L

Model 300P 304L

300mm Diameter Round Pressure Manway, with back-side opening, for Stainless Steel Tanks
Standard with EPDM gasket G/300P and S.S. Handle VI/165. Gasket on frame not glued. Available also with hole for relief valve. On request: Nylon Handwheel MEC/80 BLU, S.S. Handwheel MEC/80 and side-swing opening AISI 304L-14307 / AISI 316L-14404

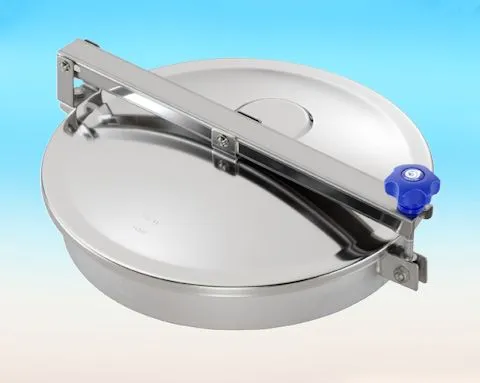

TV/400/B Stainless Steel 400mm Low/Non-Pressure Round Manway

Model TV/400/B 316L

400mm Diameter Low/Non-Pressure Round Manway, with back-side and side-swing opening, for Sainless Steel Tanks
Standard with EPDM Gasket G/T400 and Nylon Handwheel MEC/60. Gasket on frame not glued. Available also with seat for relief valve. On request: S.S. Handle VI/295; S.S. Handwheel MEC/80. AISI 316L-14404

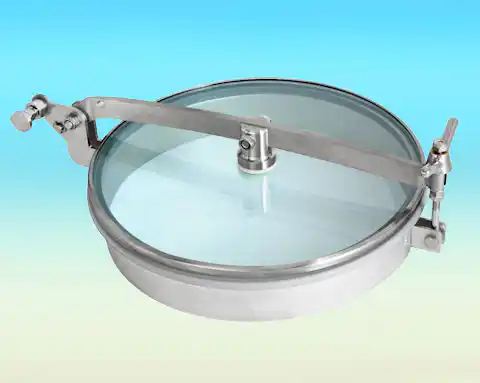

T1/G400 Stainless Steel 400mm Low/Non-Pressure Round Manway with glass lid 304L

Model T1/G400 304L/Glass

400mm Diameter Low/Non-Pressure Round Manway with glass lid
Standard with EPDM gasket G/T400, S.S. Handwheel VI/295 and rear safety pin. Gasket on frame not glued. AISI 304L-14307. Sodalime Tempered Glass. Max temperature 120°C

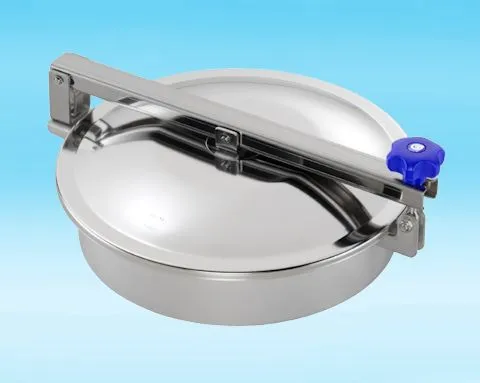

TV/450 Stainless Steel 450mm Low/Non-Pressure Round Manway 304L

Model TV/450 304L

450mm Diameter Low/Non-Pressure Round Manway, with back-side and side-swing opening, for Stainless Steel Tanks
Standard with EPDM gasket G/T450 and Nylon Handwheel MEC/80/A. Gasket on frame not glued. Available also with hole for relief valve. On request: S.S. Handwheel MEC/80; S.S. Handle VI/Z/175A. AISI 304L-14307
TV/450/B Stainless Steel 450mm Low/Non-Pressure Round Manway 316L

Model TV/450/B 316L

450mm Diameter Low/Non-Pressure Round Manway, with back-side and side-swing opening, for Stainless Steel Tanks
Standard with EPDM gasket G/T450 and Nylon Handwheel MEC/80/A. Gasket on frame not glued. Available also with hole for relief valve. On request: S.S. Handwheel MEC/80; S.S. Handle VI/Z/175A. AISI 316L-14404

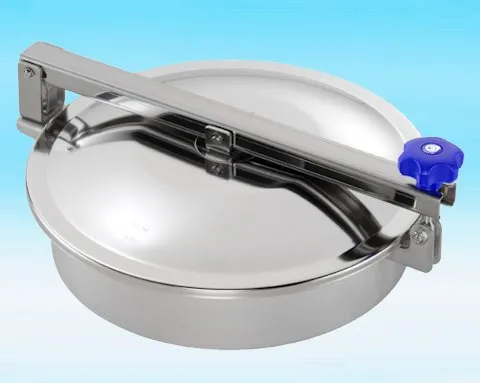

TV/500 Stainless Steel 500mm Low/Non-Pressure Round Manway 304L

Model TV/500 304L

500mm Diameter Low/Non-Pressure Round Manway, with back-side and side-swing opening, for Stainless Steel Tanks
Standard with EPDM gasket G/T500 and nylon handwheel MEC/80/A. Gasket on frame not glued. Available also with hole for relief valve. On request: S.S. Handwheel MEC/80; S.S. Handle VI/Z/175A. AISI 304L-14307

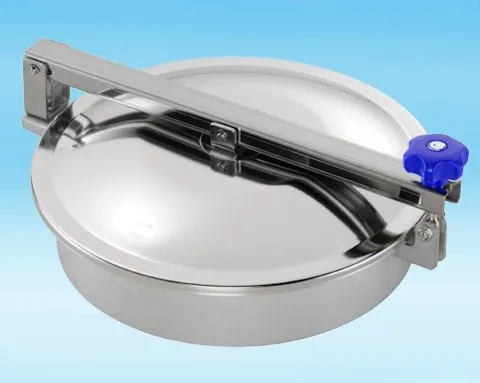

TV/500 Stainless Steel 500mm Low/Non-Pressure Round Manway 316L

Model TV/500/B 316L

500mm Diameter Low/Non-Pressure Round Manway, with back-side and side-swing opening, for Stainless Steel Tanks
Standard with EPDM gasket G/T500 and nylon handwheel MEC/80/A. Gasket on frame not glued. Available also with hole for relief valve. On request: S.S. Handwheel MEC/80; S.S. Handle VI/Z/175A. AISI 316L-14404

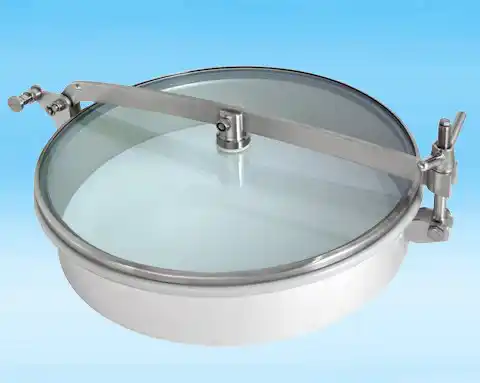

T1/G500 Stainless Steel 500mm Low/Non-Pressure Round Manway with glass lid 304L

Model T1/G500 304L/Glass

500mm Diameter Low/Non-Pressure Round Manway with glass lid
Standard with EPDM gasket G/T500, S.S. Handwheel VI/165A and rear safety pin. Gasket on frame not glued. AISI 304L-14307. Sodalime Tempered Glass. Max temperature 120°C

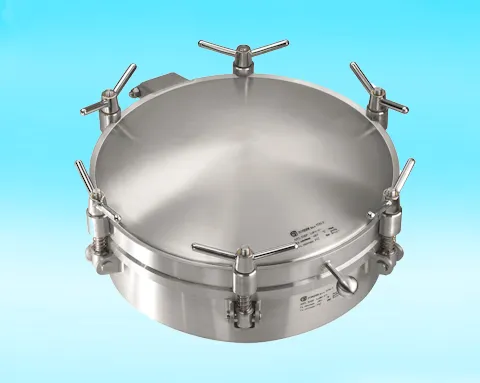

500P Stainless Steel 500mm Round Pressure Manway 316L

Model 500P 304L

500mm Diameter Round Pressure Manway, with back-side opening, for Stainless Steel Tanks
Standard with EPDM gasket G/500P and S.S. Handle VI/165. Gasket on frame not glued. Available also with hole for relief valve. On request: Nylon Handwheel MEC/80 BLU, S.S. Handwheel MEC/80 and side-swing opening AISI 304L-14307 / AISI 316L-14404

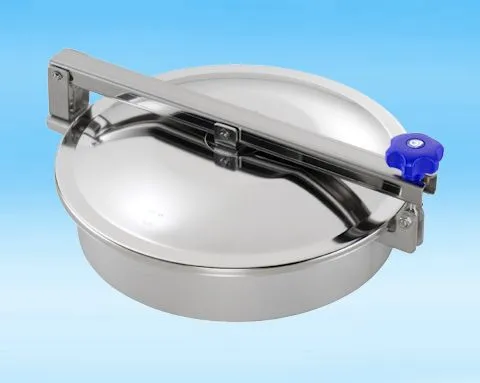

TV/600 Stainless Steel 600mm Low/Non-Pressure Round Manway 304L

Model TV/600 304L

600mm Diameter Low/Non-Pressure Round Manway, with back-side and side-swing opening, for Stainless Steel Tanks
Standard with EPDM gasket G/T600 and Nylon Handwheel MEC/80/A. Gasket on frame not glued. Available also with hole for relief valve. On request: S.S. Handwheel MEC/80; S.S. Handle VI/Z/175A. AISI 304L-14307
TV/600/B Stainless Steel 600mm Low/Non-Pressure Round Manway 316L

Model TV/600/B 316L

600mm Diameter Low/Non-Pressure Round Manway, with back-side and side-swing opening, for Stainless Steel Tanks
Standard with EPDM gasket G/T600 and Nylon Handwheel MEC/80/A. Gasket on frame not glued. Available also with hole for relief valve. On request: S.S. Handwheel MEC/80; S.S. Handle VI/Z/175A. AISI 316L-14404

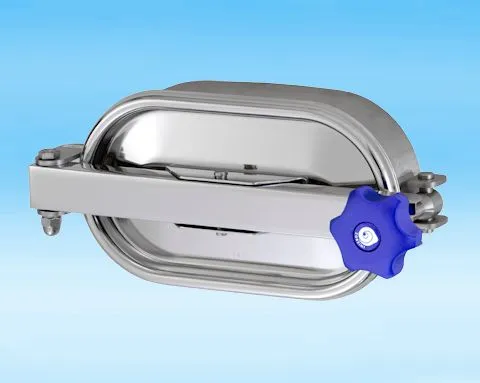

Z/175/B Stainless Steel Rectangular Pressure Manway 316L 300 × 165mm

Model Z/175/B 316L

300 × 165mm Rectangular Pressure Manway opening outwards, for Stainless Steel Tanks
Standard with EPDM gasket G/Z175 and Nylon Handwheel MEC/80/A. Gasket not glued on cover. On request: S.S. Handwheel MEC/80; S.S. Handle V/I/Z175A. Mod. /K: with S.S. Handle V/I/Z175/K, safety nut and gradual opening system. AISI 316L-14404

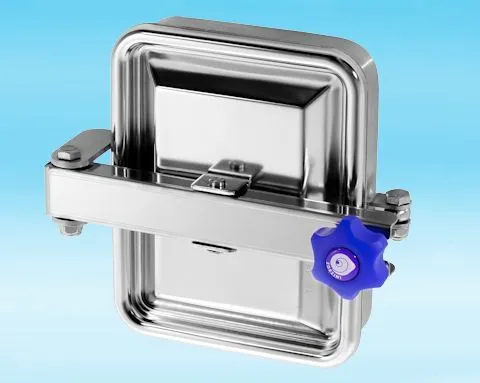

285/B Stainless Steel Rectangular Pressure Manway 316L 185 × 235mm

Model 285/B 316L

185 × 235mm Rectangular Pressure Manway opening outwards, for Stainless Steel Tanks
Standard with EPDM gasket G/295 and Nylon Handwheel MEC/60/A. Gasket not glued on cover. On request: S.S. Handle VI/295/A. Mod. /K: with S.S. Handle VI/295/K, safety nut and gradual opening system. AISI 316L-14404

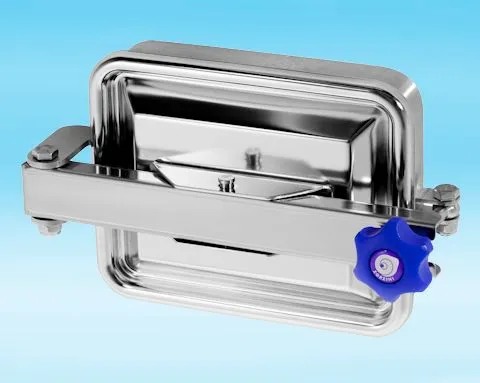

295/B Stainless Steel Rectangular Pressure Manway 316L 235 × 185mm

Model 295/B 316L

235 × 185mm Rectangular Pressure Manway opening outwards, for Stainless Steel Tanks
Standard with EPDM gasket G/295 and nylon handwheel MEC/60/A. Gasket not glued on cover. On request: S.S. Handle VI/295/A. Mod. /K: with S.S. Handle VI/295/K, safety nut and gradual opening system. AISI 316L-14404

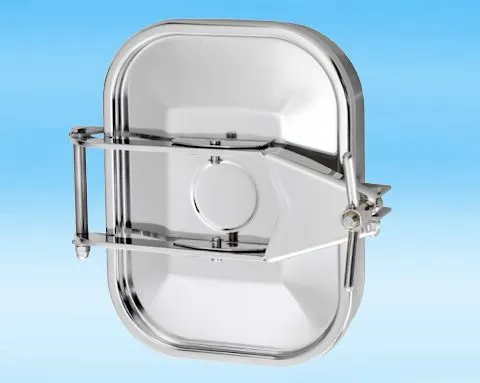

160 Stainless Steel Rectangular Pressure Manway 304L 332 × 440mm

Model 160 304L

332 × 440mm Rectangular Pressure Manway opening outwards, for Stainless Steel Tanks
Standard with EPDM gasket G/R165 and S.S. Handle V/I/165/A. Gasket on cover not glued. On request: Nylon Handwheel MEC/150/A, S.S. Handwheel MEC/80. Mod. /K: with S.S. Handle V/I/165K, safety nut and gradual opening system. AISI 304L-14307

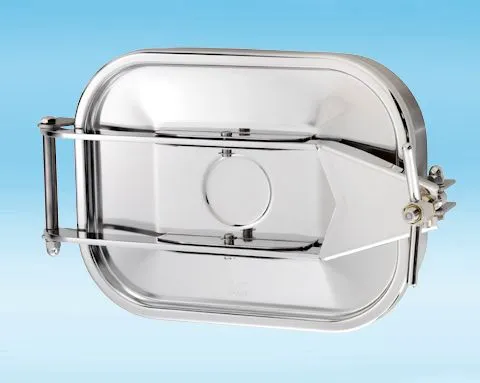

165 Stainless Steel Rectangular Pressure Manway 304L 440 × 332mm

Model 165 304L

440 × 332mm Rectangular Pressure Manway opening outwards, for Stainless Steel Tanks
Standard with EPDM gasket G/R165 and s.s. handle V/I/165/A. Gasket on cover not glued. On request: nylon handwheel MEC/150/A, S.S. Handwheel MEC/80. Mod. /K: with S.S. HandleV/I/165/K, safety nut and gradual opening system. AISI 304L-14307

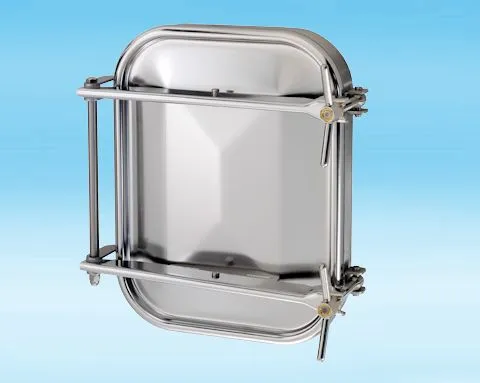

1500 Stainless Steel Rectangular Pressure Manway 304L 432 × 555mm

Model 1500 304L

432 × 555mm Rectangular Pressure Manway opening outwards, for Stainless Steel Tanks
Standard with EPDM gasket G/1500 and S.S.Handle VI/165/A. Gasket not glued on cover. On request: Nylon Handwheel MEC/150/A. Mod. 1500/E: S.S. Handle VI/165/A On request: Nylon Handwheel MEC/150/A AISI 304L-14307

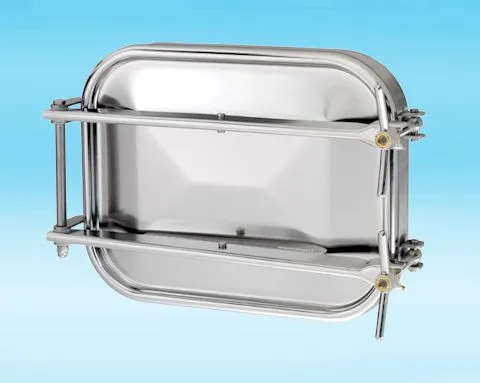

1600 Stainless Steel Rectangular Pressure Manway 304L 555 × 432mm

Model 1600 304L

555 × 432mm Rectangular Pressure Manway opening outwards, for Stainless Steel Tanks
Standard with EPDM gasket G/1500 and S.S. Handle VI/165/A. Gasket on cover not glued. On request: Nylon Handwheel MEC/150/A. Mod. 1600/E: S.S. Handle VI/165/A. On request: Nylon Handwheel MEC/150/A. AISI 304L-14307

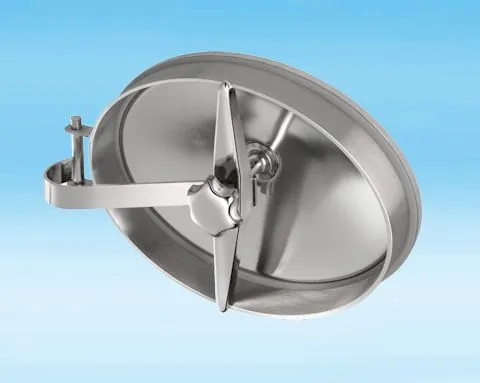

182/B Stainless Steel Oval Pressure Manway 304L 440 x 320mm

Model 182 304L

440 x 320mm Oval Pressure Manway, opening inwards, for Stainless Steel Tanks
Standard with EPDM gasket G/170 and S.S. Handwheel MEC/80. Gasket on cover not glued. On request: S.S. Handle VI/165; Nylon Handwheel MEC/150/BLU. AISI 304L-14307

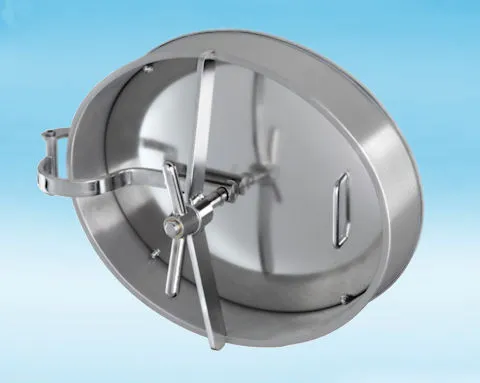

200/LZD Stainless Steel Oval Pressure Manway 304L 532 x 432mm

Model 200/LZD 304L

532 x 432mm Oval Pressure Manway, opening inwards and outwards, for Stainless Steel Tanks
Complying with PED guidelines. Standard with EPDM gasket G/200/LZD and S.S. Handle V/I/190. Gasket on cover not glued. AISI 304L-14307

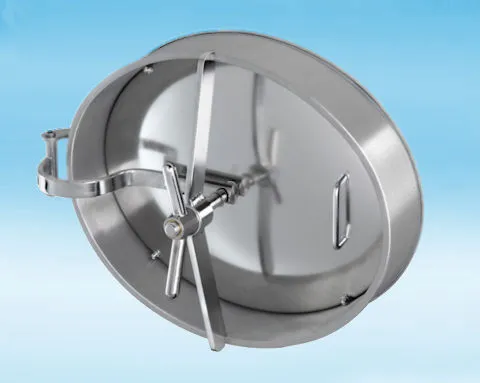

200/LZD/B Stainless Steel Oval Pressure Manway 316L 532 x 432mm

Model 200/LZD/B 316L

532 x 432mm Oval Pressure Manway, opening inwards and outwards, for Stainless Steel Tanks
Complying with PED guidelines. Standard with EPDM gasket G/200/LZD and S.S. Handle V/I/190. Gasket on cover not glued. AISI 316L-14404

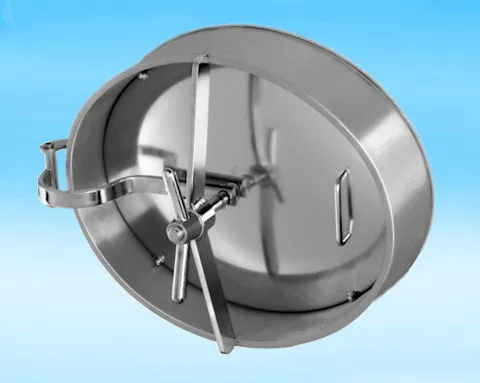

201/LZD Stainless Steel Oval Pressure Manway 304L 532 x 432mm

Model 201/LZD 304L

100mm Frame Height
532 x 432mm Oval Pressure Manway, opening inwards and outwards, for Stainless Steel Tanks
Complying with PED guidelines. Standard with EPDM gasket G/200/LZD and S.S. Handle V/I/190. Gasket on cover not glued. AISI 304L-14307

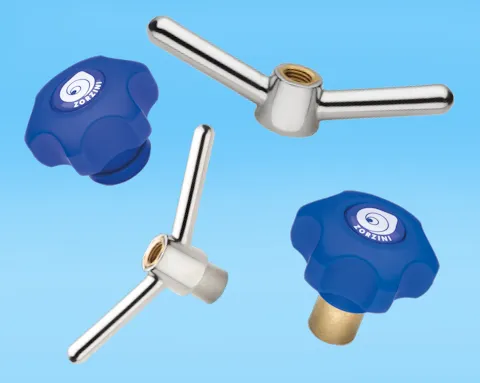

Manway handles in plastic and stainless steel

Accessories

Manway Handles

Plastic & Stainless
Available in blue plastic
and stainless steel with brass thread.

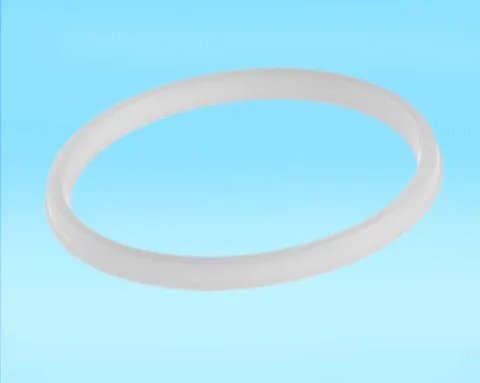

Manway Gaskets

Accessories

Manway Gaskets

Compound: EPDM
Colour: Grey Ral 7040
Temperature Range: -15° / 90°C.
home

Back to Home Page

Manways.

We are able to offer a comprehensive range of Tank and Vessel Manway Doors from stock, in both Pressure and Non-Pressure types.
All Doors are fitted with EPDM seals as standard. Other materials are available upon request.

Round Pressure Manways

Back-side and side-swing opening.
Available size range: 300mm - 500mm
316L and 304L in stock

Low/Non-Pressure Round Manways

Back-side and side-swing opening.
Available size range: 200mm - 600mm
316L and 304L in stock

Oval Pressure Manways

Inwards, outwards and inwards/outwards opening.
Available size range:
440mm x 320mm - 1.3 bar/g
535mm x 435mm - 4.8 bar/g
316L only in stock. 304 available on special order.

Rectangular Pressure Manways

Outwards opening. Hinged on long or short side.
Available size range:
185 × 235mm - 0.5 bar/g
235 × 185mm - 0.5 bar/g
300 × 165mm - 0.5 bar/g
332 × 440mm - 0.6 bar/g
432 × 555mm - 1.0 bar/g
440 × 332mm - 1.3 bar/g
555 × 432mm - 0.8 bar/g
316L and 304L in stock

All Manway Doors shown are usually held as stock items at our Manchester warehouse and can be shipped for next day delivery. Other models, grades and seal materials are available on short lead times from the factory, as can be seen in our Stainless Steel Manway Door stock range PDF.

Please enquire with our sales office for further details.
