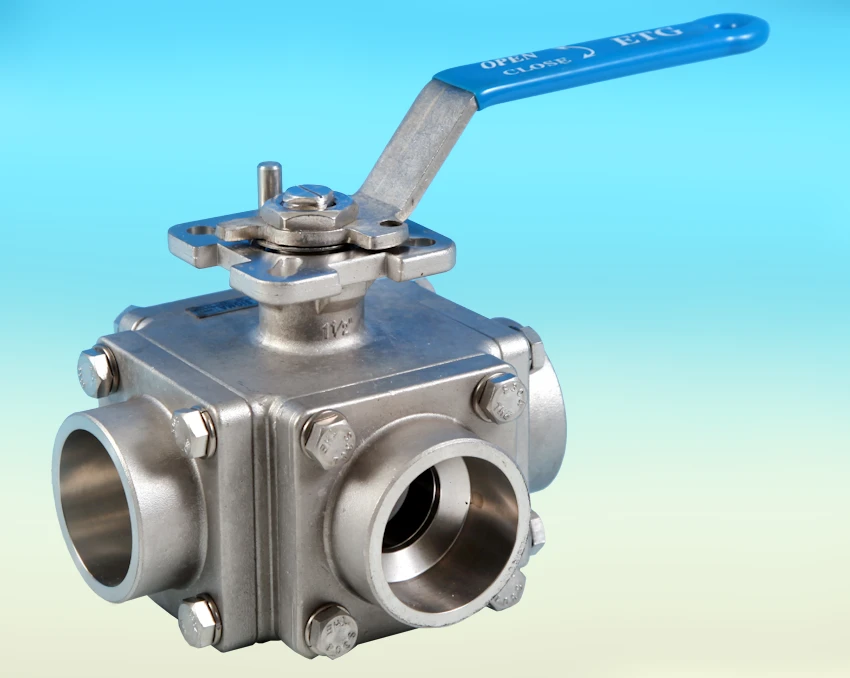

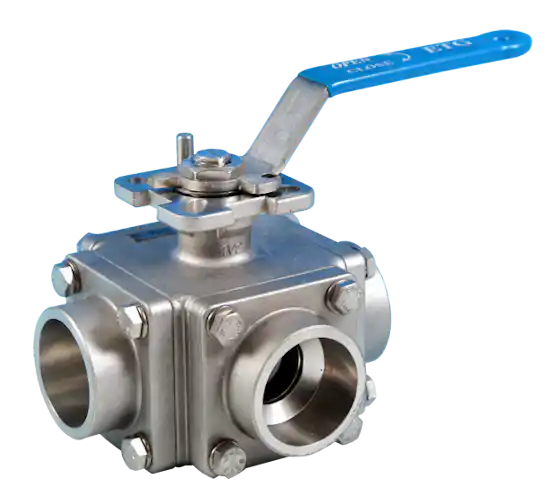

3-Way Socket Weld End Direct Mount Ball Valve ETG 3W-SWE-L, ETG 3W-SWE-T
S/S 3-Way Socket Weld End Direct Mount Ball Valve ETG 3W-SWE-L, ETG 3W-SWE-T
Logo

ETG 3W-SWE-L (L-Port)
ETG 3W-SWE-T (T-Port)

3-way ball valves

3-Way Socket Weld End Direct Mount Ball Valve

ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
RPTFE Seats and Seals. 1000 WOG Pressure rated.
L-Port and T-Port configurations.
Fully supported Floating Ball design with 4 Ball Seats
Standard Port (Reduced Bore). Socket Weld Ends to ANSI B16.11
ISO 5211 Direct Mounting Pad and Square Stem for easy automation
Lever operated with Locking Device.

Available size range: 1”, 1.1/2" & 2” only


Options available:

100mm/120mm high Spindle Extension for Insulation & Steam Actuation100mm high Spindle Extension for Insulation & Steam Actuation
Direct Mount Spring Handle/LeverDirect Mount Spring Handle/Lever
Fabricated Heating Jacket, can be fitted to base of valve onlyFabricated Heating Jacket, can be fitted to base of valve only

Top Works (Please select a size to view information):

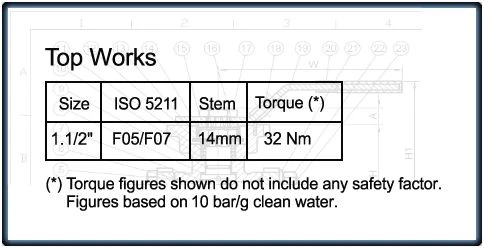

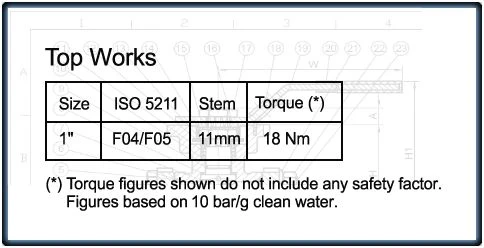

Top Works for 1" Stainless Steel 3-Way Socket Weld End Direct Mount Ball Valve ETG 3W-SW Top Works for 1.1/2" Stainless Steel 3-Way Socket Weld End Direct Mount Ball Valve ETG 3W-SW Top Works for 2" Stainless Steel 3-Way Socket Weld End Direct Mount Ball Valve ETG 3W-SW

ETG 3W-SWE

3-Way Socket Weld End Direct Mount Ball Valve

PDF

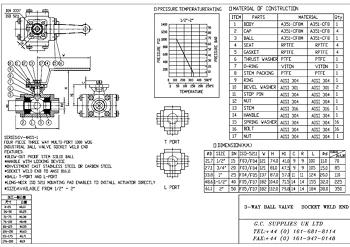

PDF for 3-Way Socket Weld End Direct Mount Ball Valve
Download PDF (zip) File Size: 1.2 MB

For full details of our NTC High Performance Range, technical data, product images and more, visit http://ntcvalves.co.uk
