>BSPT 90° Elbow 3000LB + 6000LB 316L S/ Steel
BSPT 90° Elbow 3000LB + 6000LB 316L Stainless Steel
Logo

ETG-HPTE90

miscellaneous valves

BSPT 90° Elbow 3000LB + 6000LB 316L Stainless Steel

3000LB + 6000LB Pressure rating
ASTM A182 316L Stainless Steel
BSPT threaded to BS EN10226-1:2005
+ NPT threaded to ASME B.20.1
Dimensions to ASME B16.11-2016


These high pressure pipe fittings have high vacuum capabilities and working pressures (PSI).

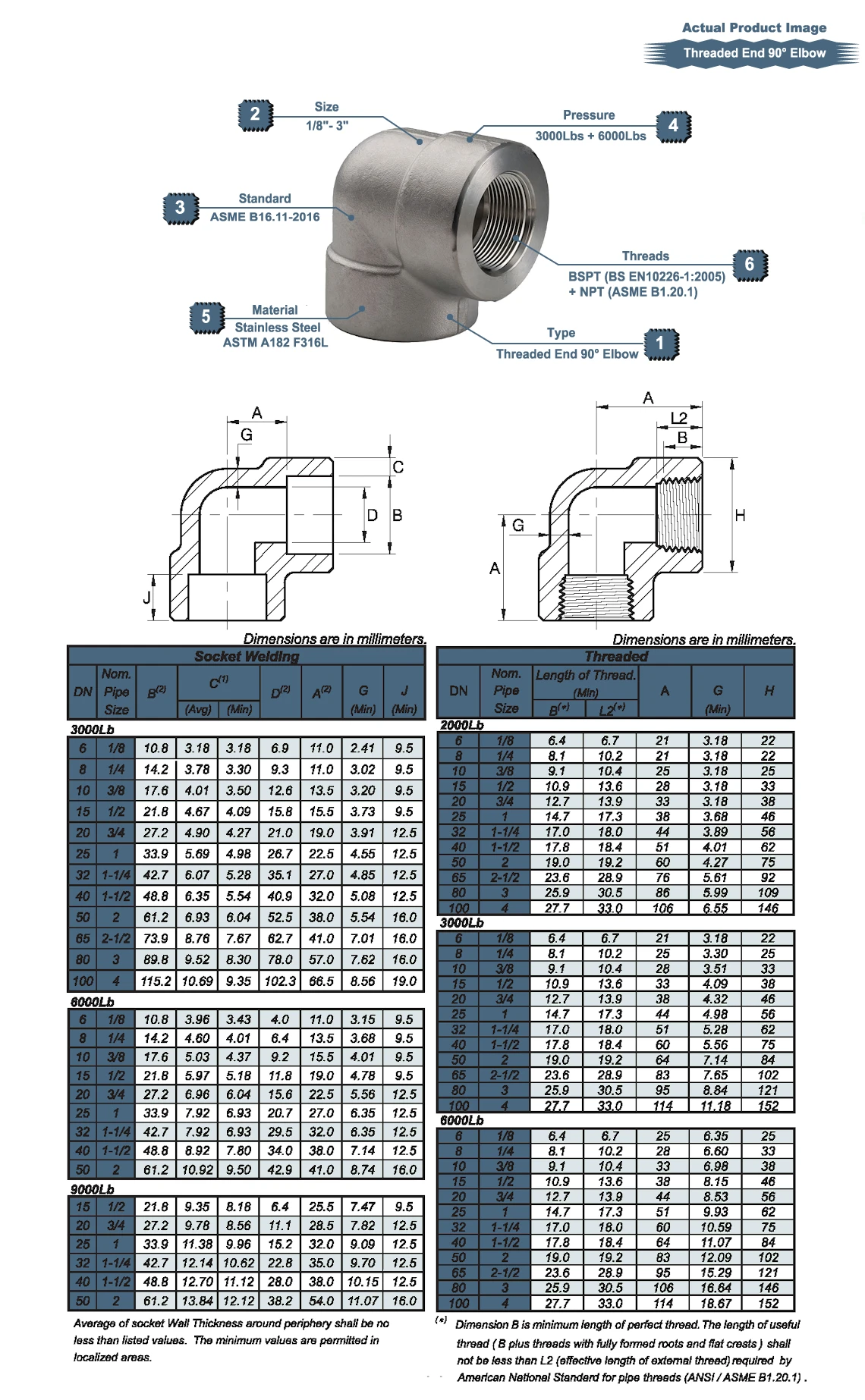

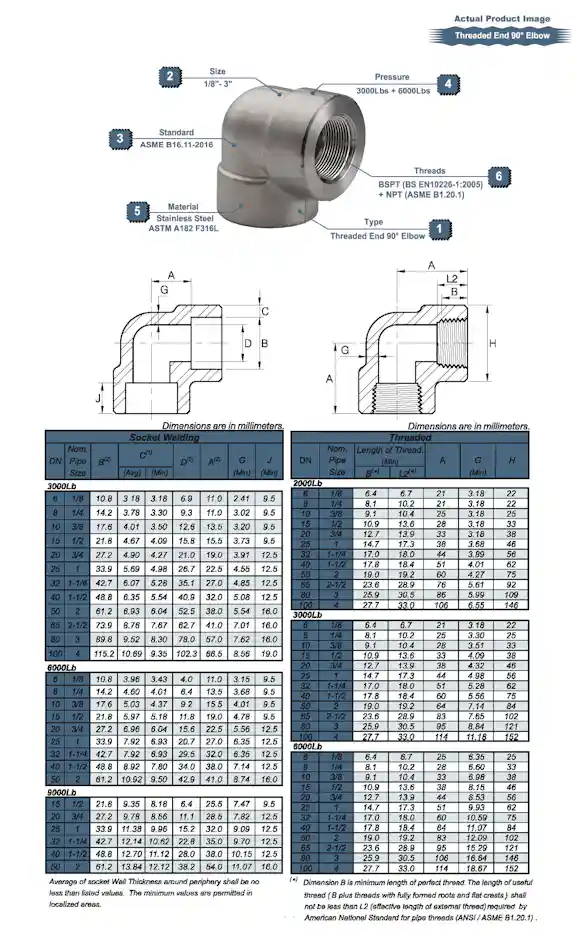

High Presure Elbow Drawing
S/S High Presure Elbow Drawing

For full details of our NTC High Performance Range, technical data, product images and more, visit http://ntcvalves.co.uk
