High Pressure Stainless Steel Socket Weld Union ETG-HPSWU
Logo

ETG-HPSWU

high pressure fittings

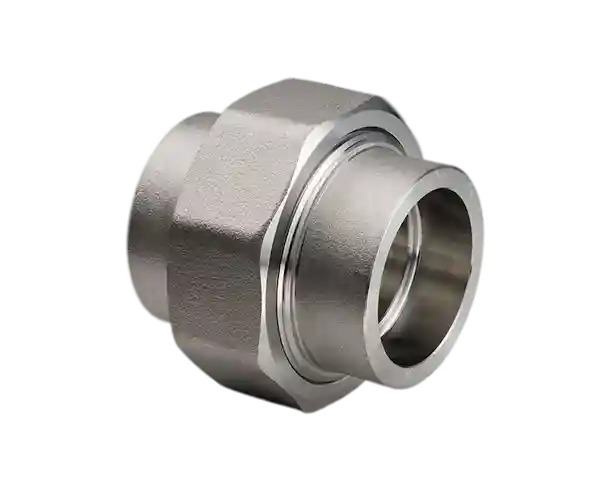

Socket Weld Union 3000LB 6000LB 316L Stainless Steel

3000LB + 6000LB Pressure rating
ASTM A182 F316L + F304L Stainless Steel
Socket Weld to ASME B16.11
Dimensions to MSS SP-83-2014

These high pressure pipe fittings have high vacuum capabilities and working pressures (PSI).

High Presure Union Drawing

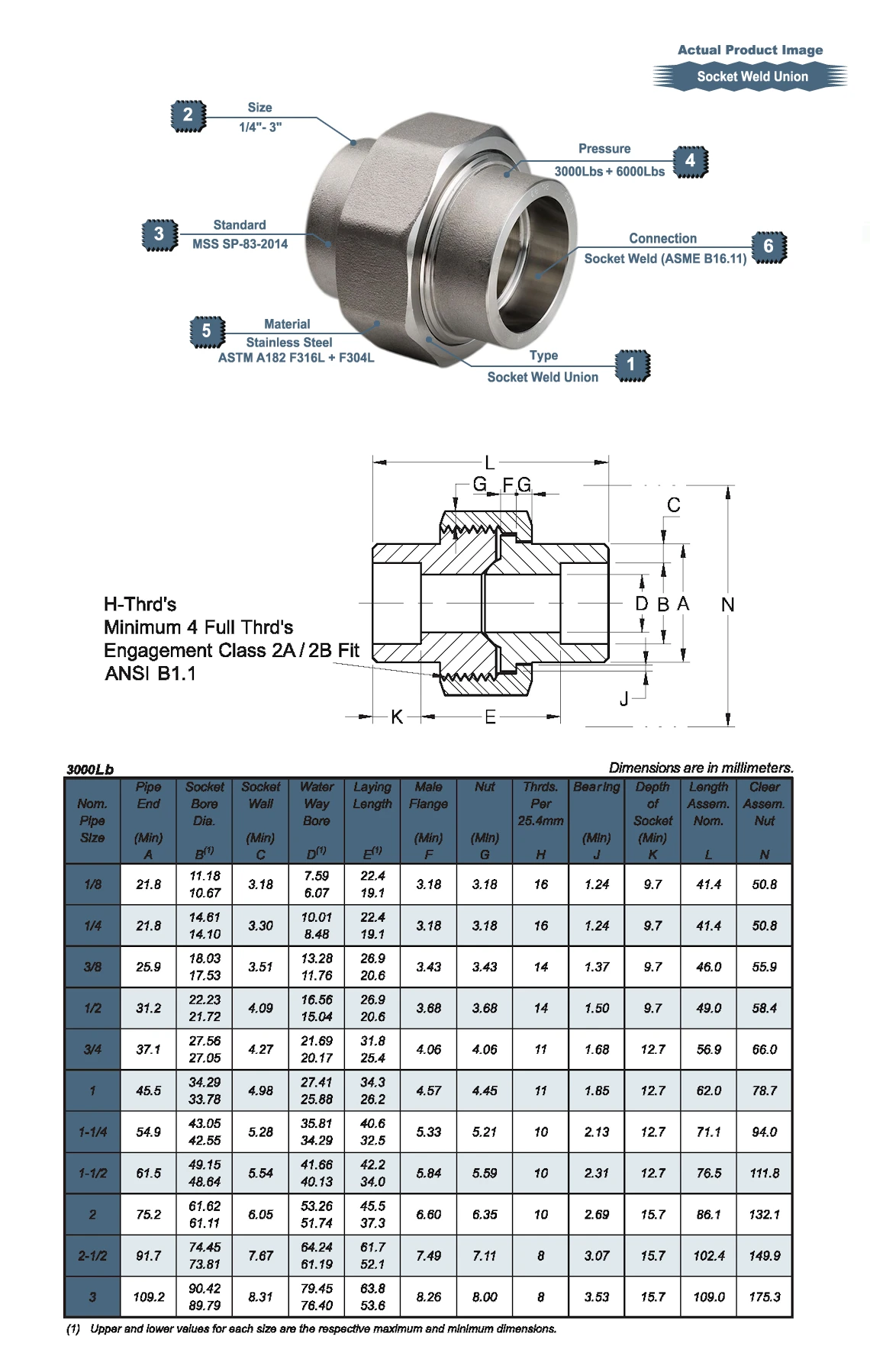

S/S High Presure Socket Weld Union Drawing small

S/S High Presure Cross Drawing

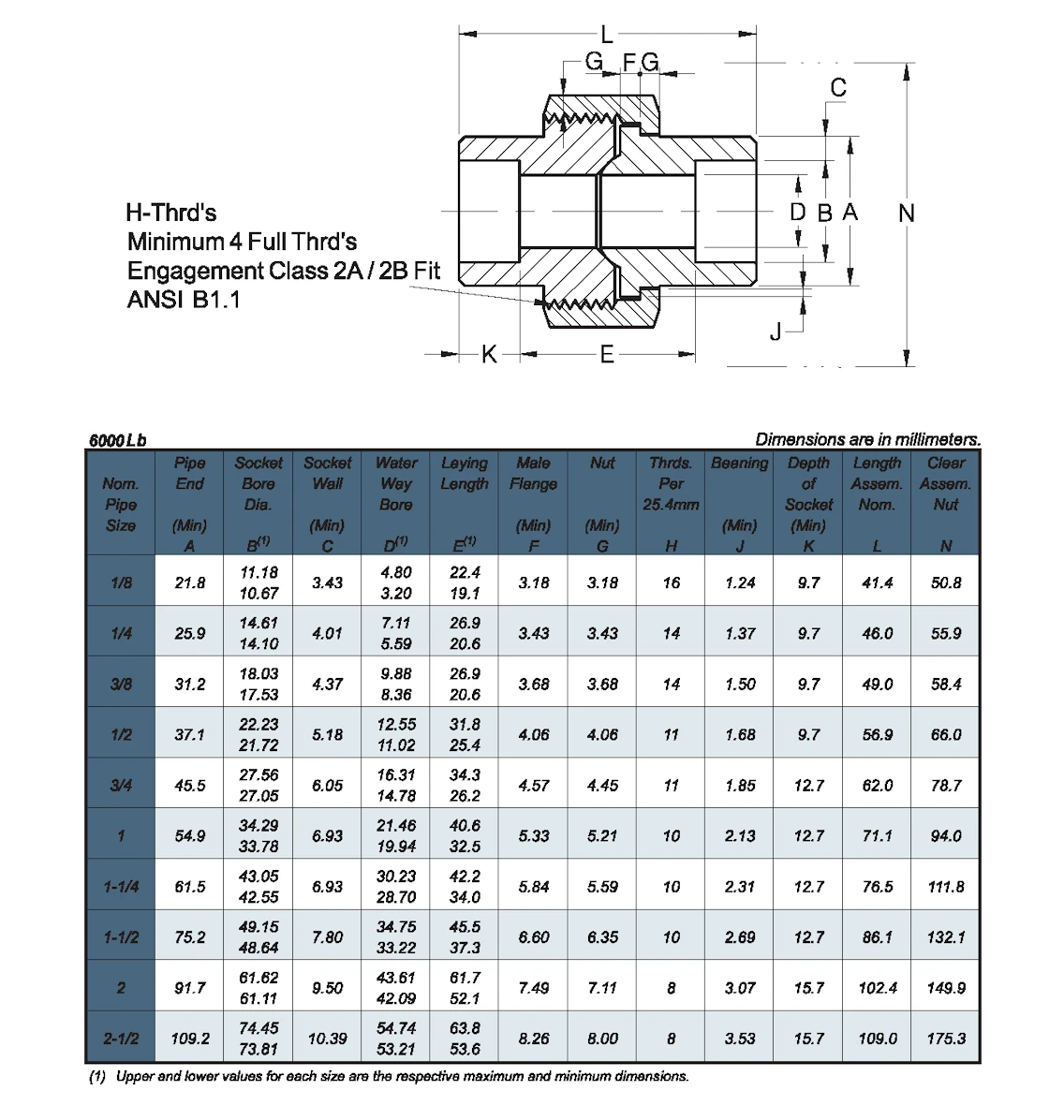

High Presure Socket Weld Union Drawing large

For full details of our NTC High Performance Range, technical data, product images and more, visit http://ntcvalves.co.uk
