>High Pressure Stainless Steel Threaded End Union

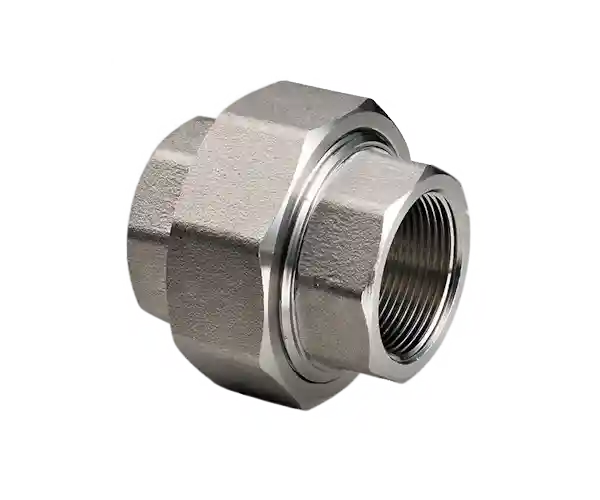

High Pressure Stainless Steel Threaded End Union ETG-HPTEU
Logo

ETG-HPTEU

high pressure fittings

BSPT Threaded End Union 3000LB 6000LB 316L Stainless Steel

3000LB + 6000LB Pressure rating
ASTM A182 316L Stainless Steel
BSPT threaded to BS EN10226-1:2016
+ NPT threaded to ASME B1.20.1
Dimensions to MSS SP-83-2014

These high pressure pipe fittings have high vacuum capabilities and working pressures (PSI).

High Presure Cross Drawing

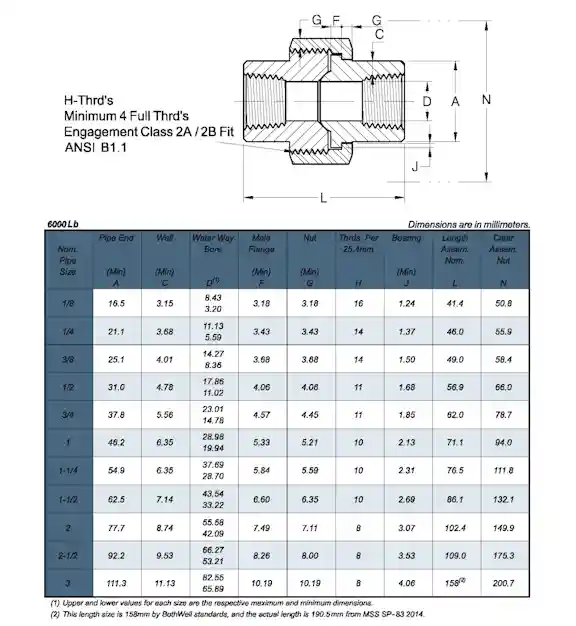

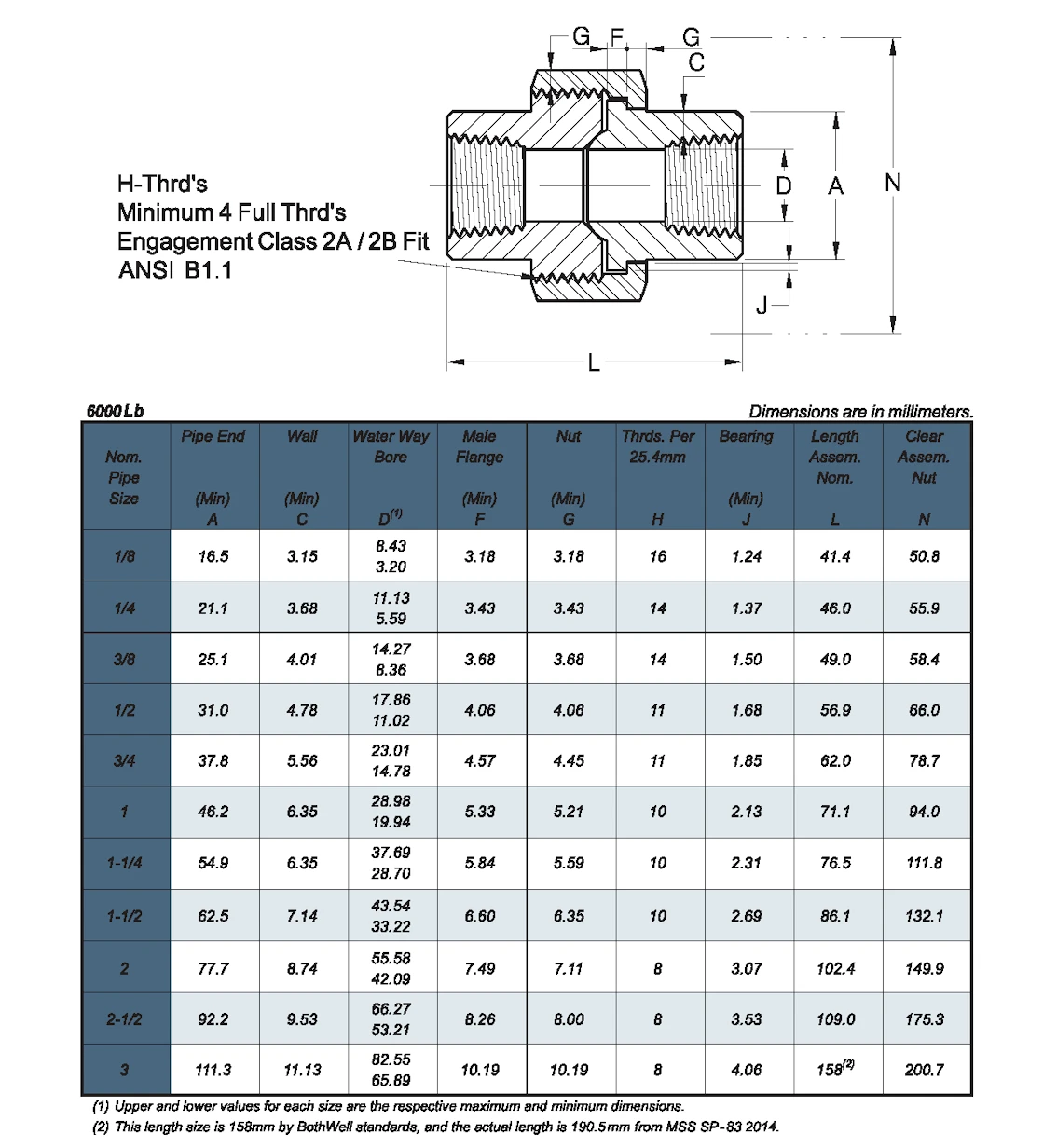

High Presure Threaded End Union Drawing

S/S High Presure Union Drawing

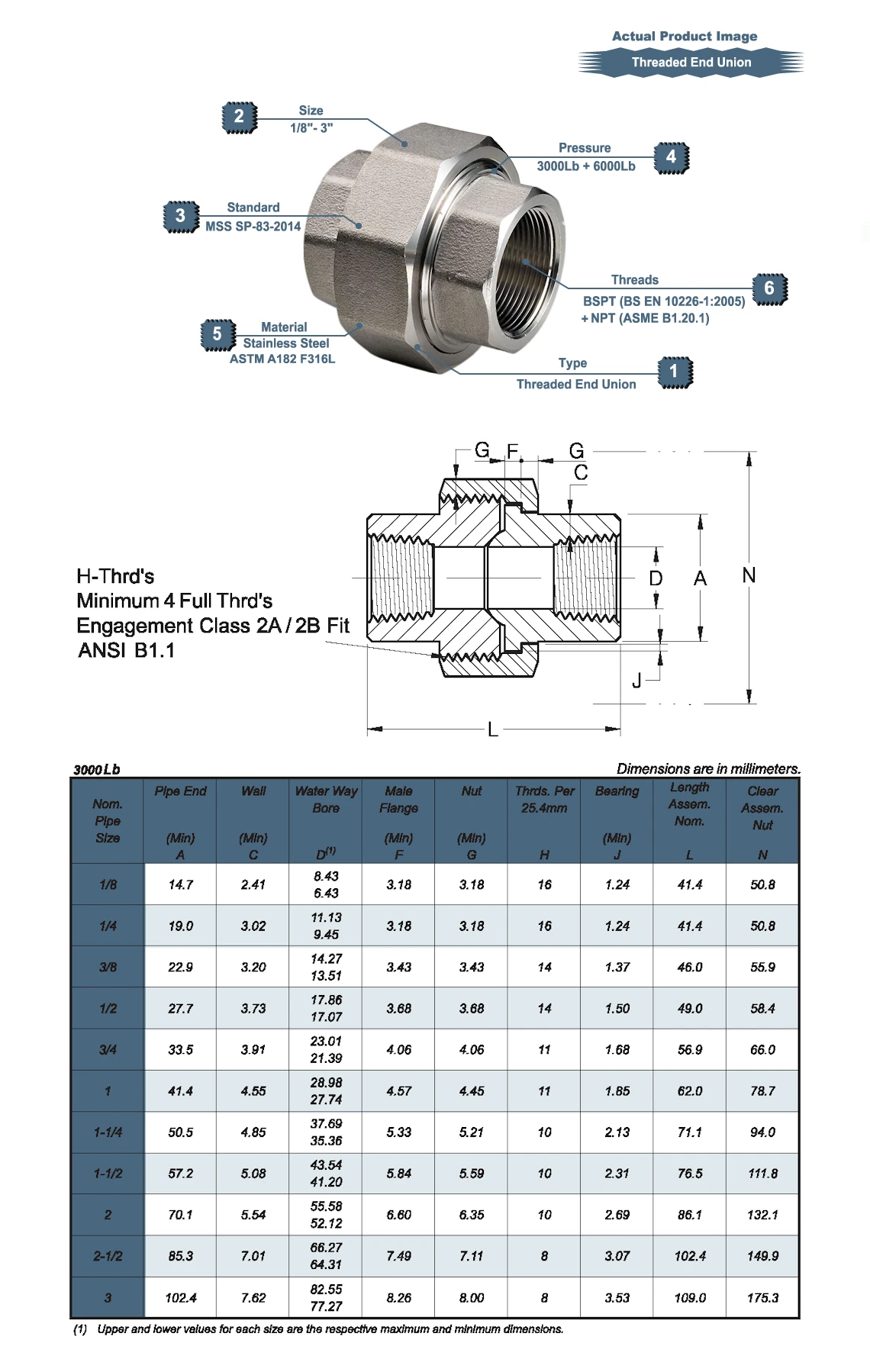

High Presure Threaded End Union Drawing

For full details of our NTC High Performance Range, technical data, product images and more, visit http://ntcvalves.co.uk
