>High Pressure Stainless Steel Threaded End Hexagon Reducing Bush

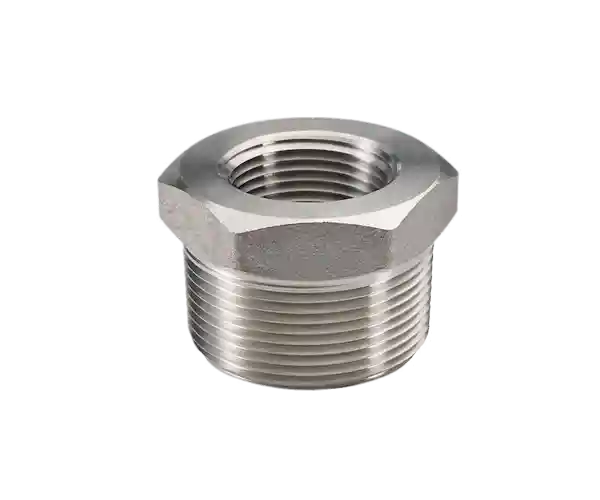

High Pressure Stainless Steel Threaded End Hexagon Reducing Bush ETG-HPTEHRB
Logo

ETG-HPTEHRB

high pressure fittings

BSPT Threaded End Hexagon Reducing Bush 6000LB 316L Stainless Steel

6000LB Pressure rating
ASTM A182 316L + 316L S11 Stainless Steel
BSPT threaded to BS EN10226-1:2005
+ NPT threaded to ASME B.20.1
Dimensions to ASME B16.11-2016

These high pressure pipe fittings have high vacuum capabilities and working pressures (PSI).

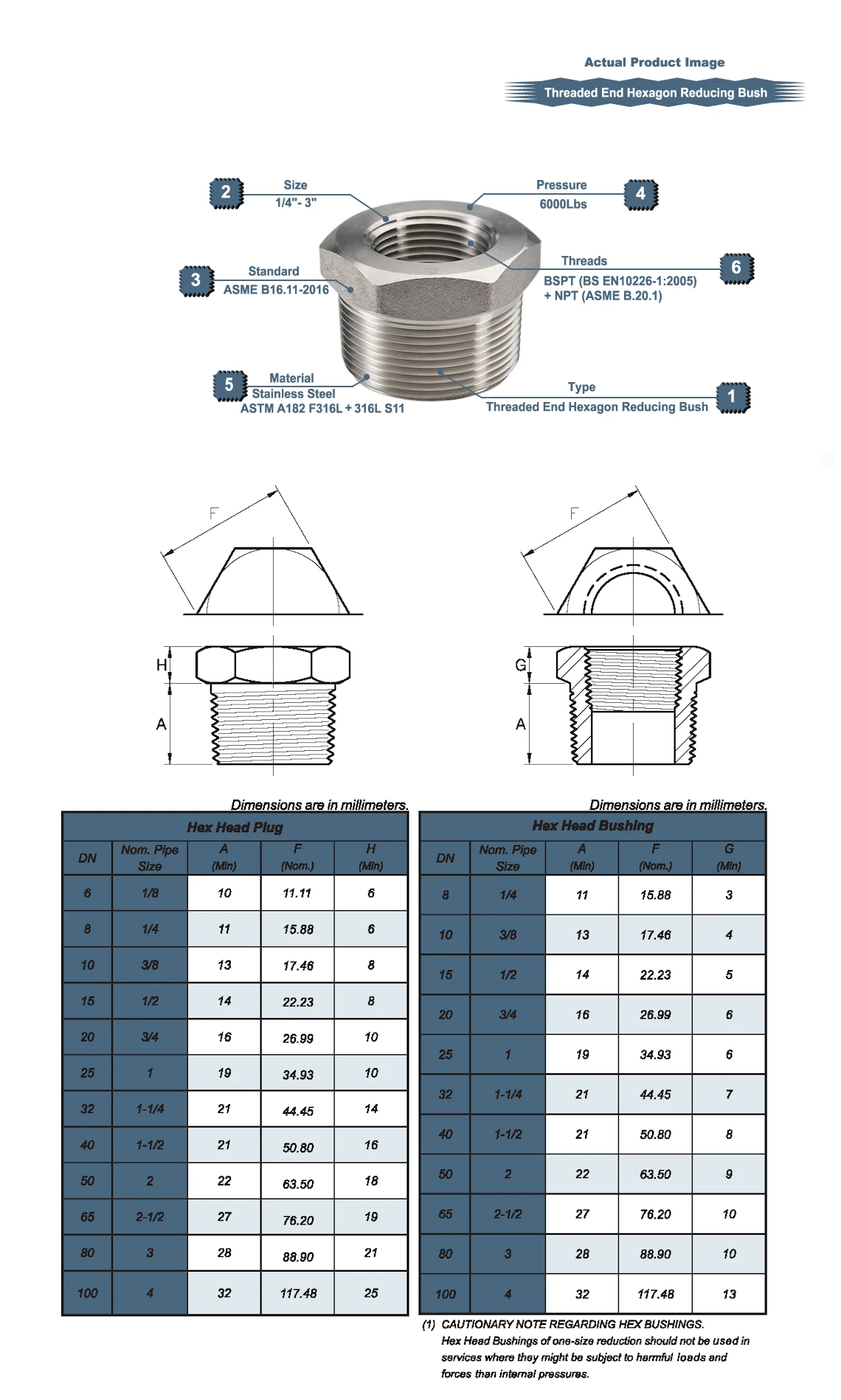

High Presure BSPT Threaded End Hexagon Reducing Bush Drawing

S/S High Presure BSPT Threaded End Hexagon Reducing Bush Drawing
